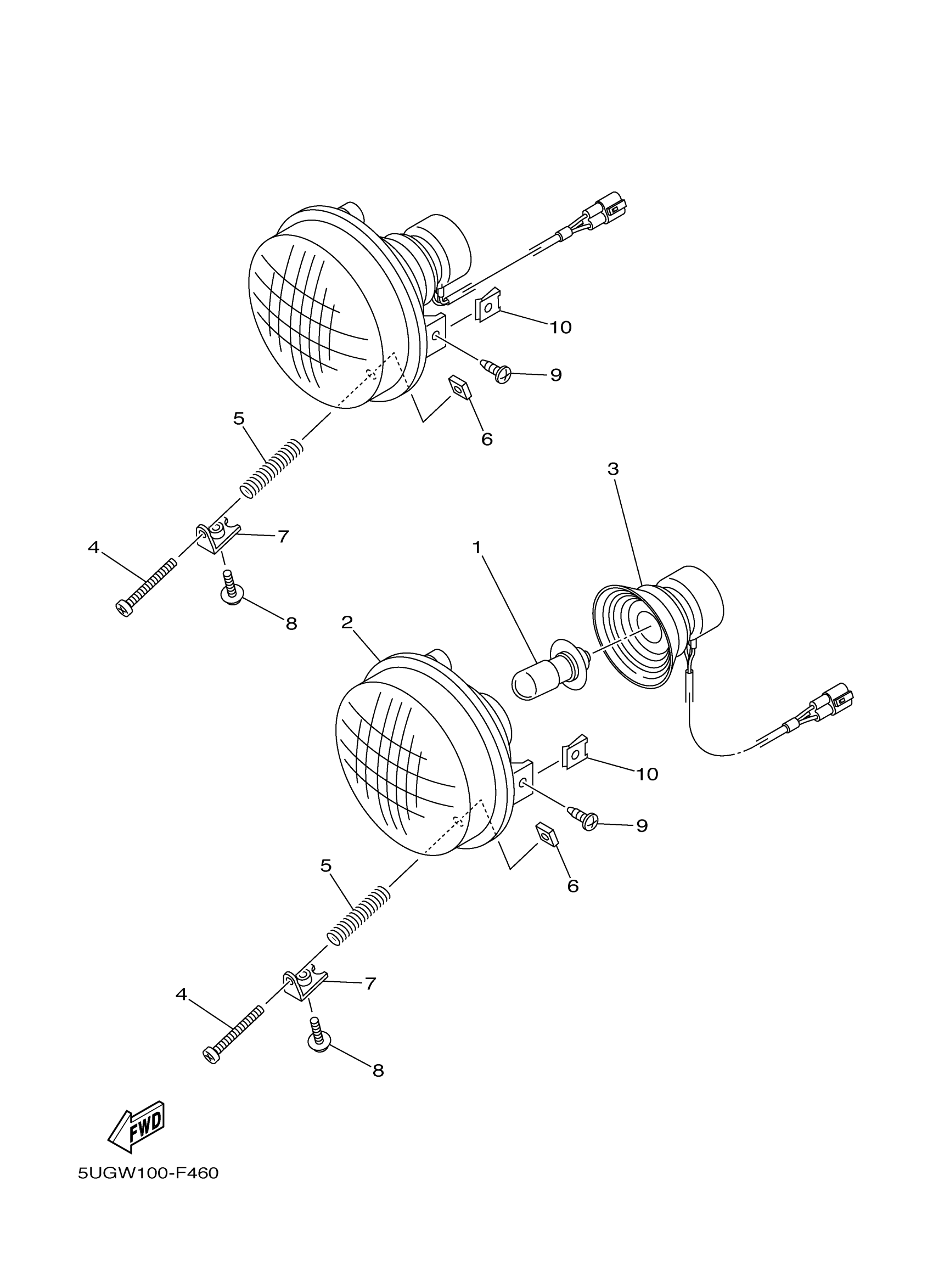

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$34.68

2

LENS ASSY

5KM-84320-11-00

Unavailable

3

SOCKET CORD ASSY 1

5EH-84340-00-00

$46.67

4

SCREW, PAN HEAD

98502-03540-00

$5.92

5

SPRING, SCREW

2GU-84332-00-00

$6.29

6

NUT, ADJUSTING

2GU-84334-00-00

$5.05

7

BRACKET

5KM-84703-10-00

$3.03

8

SCREW, WITH WASHER

90159-05044-00

$2.31

9

SCREW, BIND (8K2)

98902-05016-00

$1.15

10

NUT, SPRING

90183-05008-00

$6.22
