- YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008
FUEL TANK

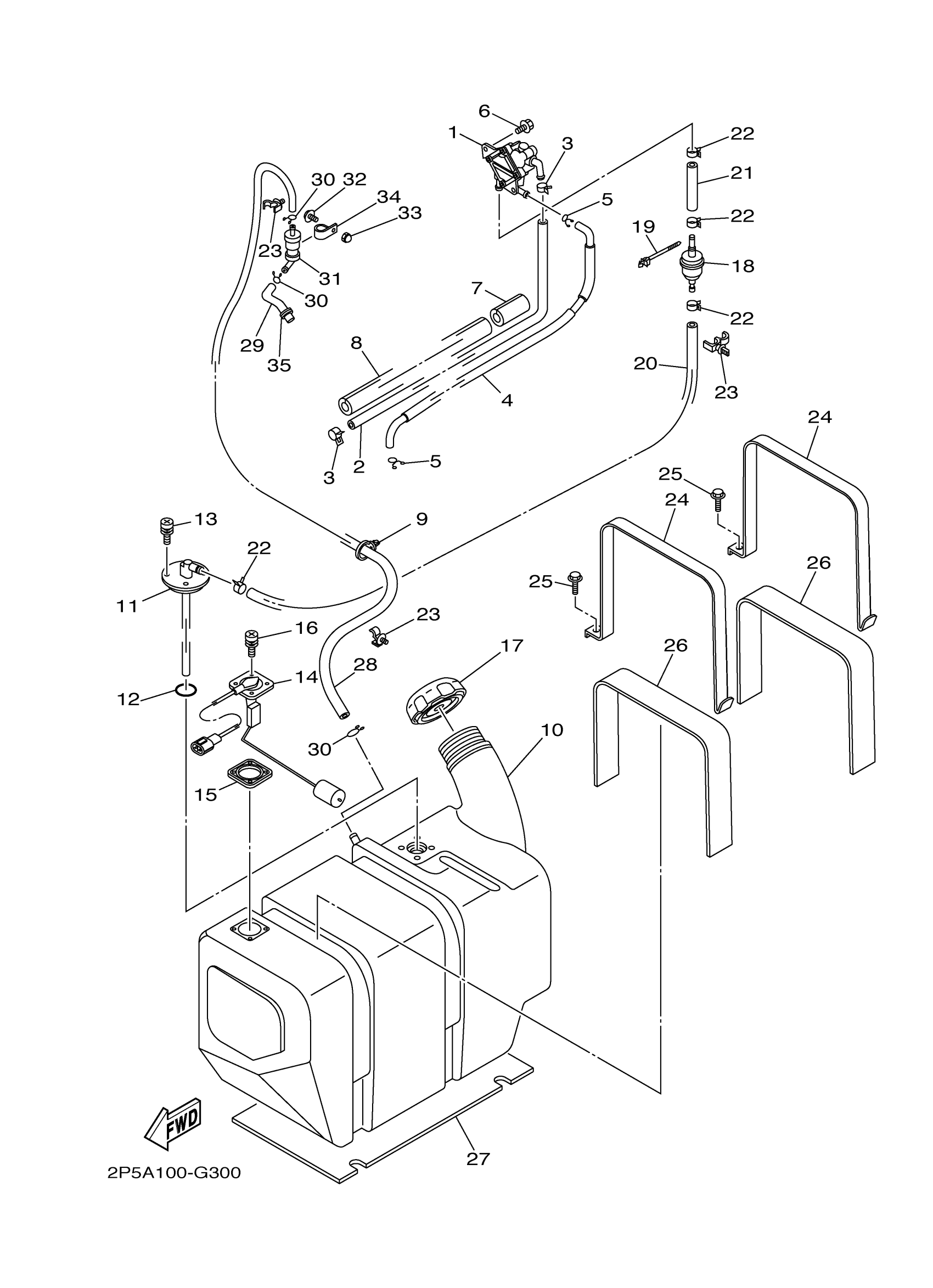

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 FUEL TANK Diagram
#
1
FUEL PUMP ASSY
5UG-13910-01-00
$122.99
2
PIPE, FUEL
2P5-14295-10-00
Unavailable
3
CLIP (7K7)
90467-11044-00
$8.49
4
HOSE, AIR
2P5-E3895-00-00
Unavailable
5
CLIP
90467-100A1-00
$7.49
6
BOLT, FLANGE
95022-06010-00
$5.60
7
INSULATOR
5UG-14271-00-00
$13.49
8
INSULATOR
5UG-14271-50-00
$6.99
9
CLAMP
90464-25826-00
Unavailable
10
TANK, FUEL
5UG-F4111-30-00
Unavailable
11
FUEL PIPE JOINT
2P5-F4300-10-00
Unavailable
12
O-RING
93210-228C4-00
$5.60
13
BOLT, WITH WASHER
90119-05022-00
$7.49
14
SENDER UNIT ASSY, FUEL METER
5UG-85752-01-00
Unavailable
15
GASKET, SENDER UNIT
5G3-85753-00-00
$17.49
16
BOLT, WITH WASHER
90119-05022-00
$7.49
17
CAP ASSY
BVG-24610-00-00
Unavailable
18
FILTER ASSY
JN6-F4560-00-00
Unavailable
19
CLAMP
90464-38800-00
Unavailable
20
PIPE, FUEL 1
5UG-24311-10-00
Unavailable
21
PIPE 3
5UG-24313-10-00
Unavailable
22
CLIP (7K7)
90467-11044-00
$8.49
23
CLAMP
90464-12830-00
Unavailable
24
STAY, FUEL TANK 1
5UG-F4157-00-00
Unavailable
25
BOLT, FLANGE
90105-08879-00
Unavailable
26
DAMPER, PLATE 1
5UG-F414H-00-00
Unavailable
27
DAMPER, PLATE 2
5UG-F414J-00-00
Unavailable
28
PIPE 4
5UG-F4314-00-00
Unavailable
29
PIPE 2
5UG-F4312-00-00
Unavailable
30
CLIP
90467-100A1-00
$7.49
31
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
32
SCREW, BIND(6K1)
98980-05010-00
Unavailable
33
NUT, CROWN
90176-05006-00
Unavailable
34
CLAMP
90464-15014-00
Unavailable
35
GROMMET (1E6)
90480-15058-00
Unavailable
