- YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008
FRONT DIFFERENTIAL

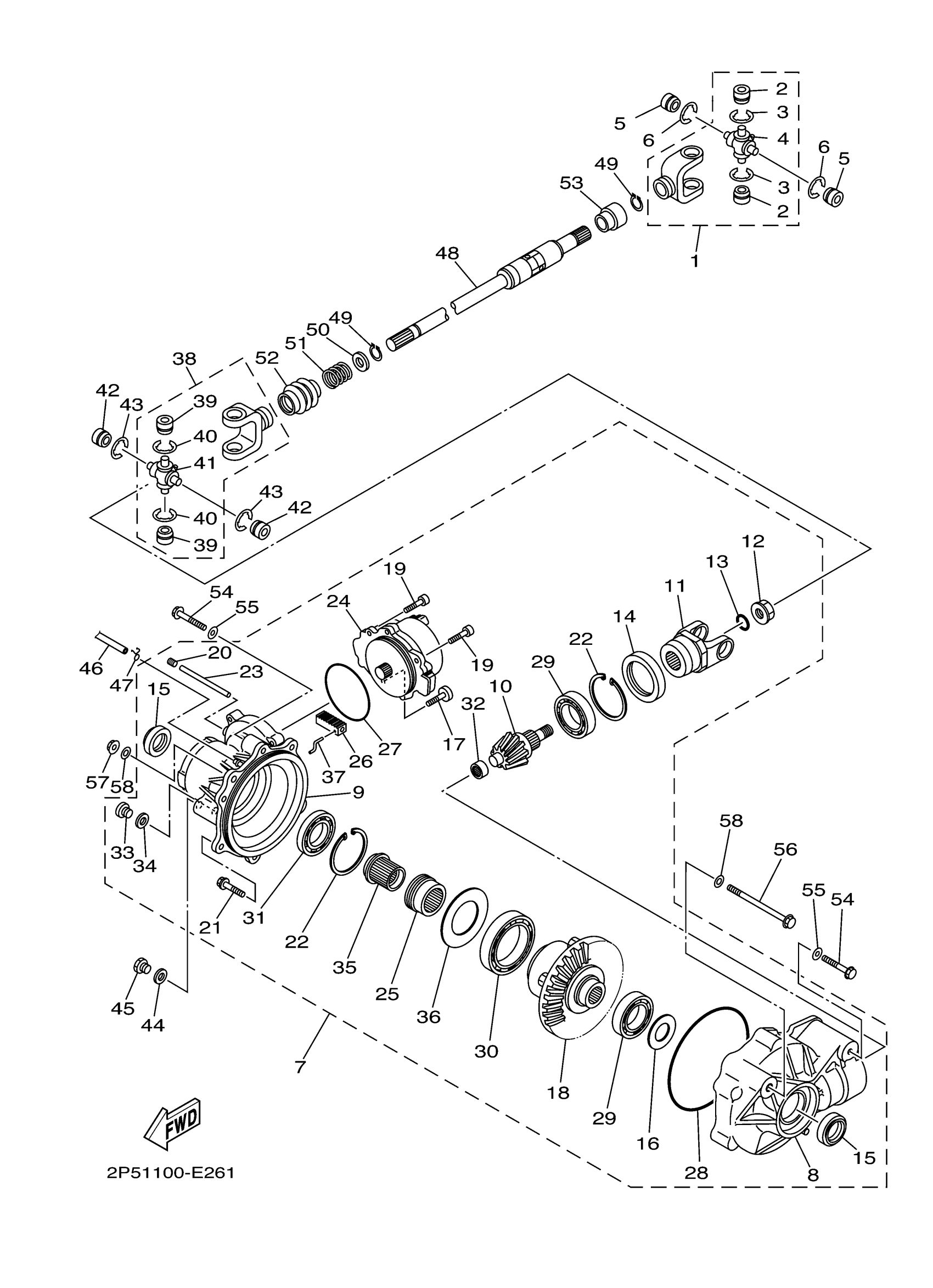

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 FRONT DIFFERENTIAL Diagram
#
1
CROSS JOINT COMP. 2
2HC-46107-00-00
$203.99
2
BEARING
93399-99948-00
$55.99
3
CIRCLIP (4X7)
93440-20088-00
$8.49
4
SPIDER
5GT-46187-00-00
$108.99
5
BEARING
93399-99948-00
$55.99
6
CIRCLIP (4X7)
93440-20088-00
$8.49
7
FRONT AXLE GEAR CASE COMP.
5UG-46160-12-00
Unavailable
8
HOUSING, SHAFT DRIVE 2
5UG-46161-00-00
Unavailable
9
HOUSING, BEARING 2
5UG-46162-00-00
Unavailable
10
PINION, DRIVE 2
5KM-46141-13-00
Unavailable
11
YOKE, JOINT 2
5KM-46146-11-00
$165.99
12
NUT 1
4WV-46145-11-00
$11.99
13
O-RING (2H7)
93210-14359-00
$9.49
14
OIL SEAL
93105-46001-00
$21.99
15
SEAL,OIL 1
3B4-46163-00-00
$18.49
16
SHIM, THRUST
4WV-46119-01-00
Unavailable
16
SHIM, THRUST
4WV-46119-11-00
Unavailable
16
SHIM, THRUST
4WV-46119-21-00
Unavailable
16
SHIM, THRUST
4WV-46119-31-00
Unavailable
16
SHIM, THRUST
4WV-46119-41-00
Unavailable
16
SHIM, THRUST
4WV-46119-51-00
Unavailable
17
BOLT 1
5KM-46155-00-00
Unavailable
18
LIMITED SLIP DIFF. ASSY
5KM-46470-13-00
Unavailable
19
BOLT, SOCKET
91317-08020-00
Unavailable
20
BOLT, SET
90113-08004-00
Unavailable
21
BOLT 3
4WV-46159-00-00
Unavailable
22
RING,HOLE SNAP 2
5KM-46143-00-00
Unavailable
23
SHAFT
5KM-42752-00-00
Unavailable
24
SERVO MOTOR COMP
5KM-4616A-02-00
Unavailable
25
CLUTCH,DRIVEN
5KM-46441-00-00
Unavailable
26
. SHAFT 2
5KM-18319-00-00
Unavailable
27
O-RING
93210-82001-00
Unavailable
28
O-RING
93211-40040-00
Unavailable
29
BEARING
93306-00709-00
Unavailable
30
BRG,R-B 6912 85MM 189G NK
93306-91201-00
Unavailable
31
BEARING
93316-00702-00
Unavailable
32
BEARING 4
4WV-46167-00-00
Unavailable
33
PLUG, STRIGHT SCREW(5GH1)
90340-10001-00
Unavailable
34
GASKET
90430-10003-00
Unavailable
35
ADAPTER
5KM-46451-00-00
Unavailable
36
SHIM, THRUST
5KM-46119-01-00
Unavailable
36
SHIM, THRUST
5KM-46119-11-00
Unavailable
36
SHIM, THRUST
5KM-46119-21-00
Unavailable
36
SHIM, THRUST
5KM-46119-31-00
Unavailable
36
SHIM, THRUST
5KM-46119-41-00
Unavailable
36
SHIM, THRUST
5KM-46119-51-00
Unavailable
36
SHIM, THRUST
5KM-46119-61-00
Unavailable
37
FORK, SHIFT 4
5KM-18514-00-00
Unavailable
38
CROSS JOINT COMP. 2
2HC-46107-00-00
$203.99
39
BEARING
93399-99948-00
$55.99
40
CIRCLIP (4X7)
93440-20088-00
$8.49
41
SPIDER
5GT-46187-00-00
$108.99
42
BEARING
93399-99948-00
$55.99
43
CIRCLIP (4X7)
93440-20088-00
$8.49
44
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
45
GASKET
214-11198-01-00
Unavailable
46
HOSE (L1700)
90445-070G6-00
Unavailable
47
CLIP (1J7)
90467-07029-00
Unavailable
48
SHAFT, DRIVE 2
2P5-46173-00-00
Unavailable
49
CIRCLIP(1EY)
99009-19400-00
Unavailable
50
WASHER PLATE 132172160000
90201-20266-00
Unavailable
51
SPRING, COMPRESSION
90501-235L9-00
Unavailable
52
SEAL 1
5GT-46136-00-00
Unavailable
53
SEAL 2
5GT-46137-00-00
Unavailable
54
BOLT, FLANGE
95817-10030-00
Unavailable
55
WASHER, PLATE
90201-10035-00
Unavailable
56
BOLT, FLANGE
90105-10230-00
Unavailable
57
NUT, SELF-LOCKING
90185-10011-00
Unavailable
58
WASHER, PLATE
90201-10035-00
Unavailable
