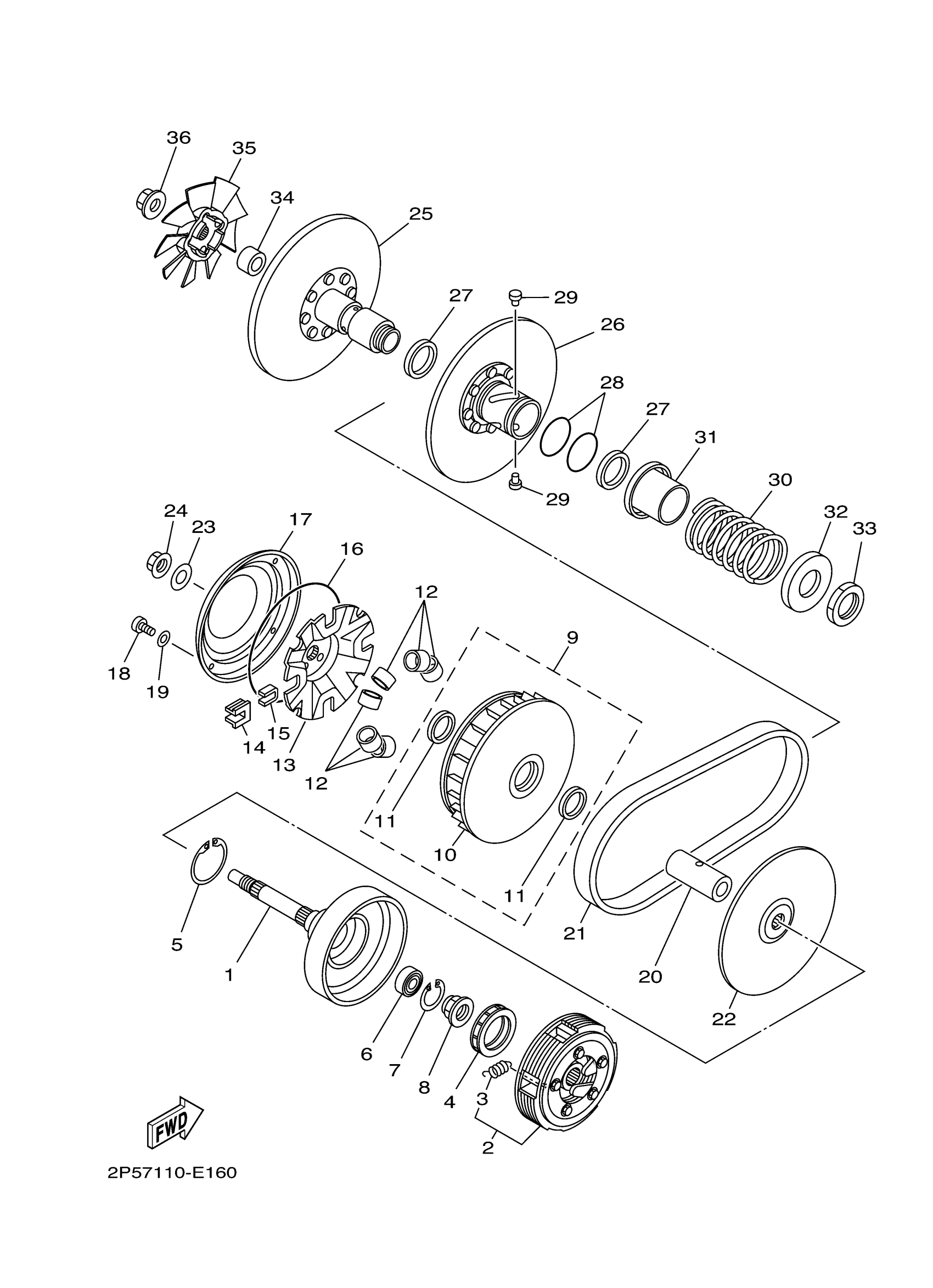

Yamaha YXR45FSPX (RHINO 450 SPECIAL EDITION) 2P5D 2008 CLUTCH Diagram
#
1
CLUTCH HOUSING COMP.
5GH-16611-10-00
$409.99
2
CLUTCH CARRIER ASSY
5GH-16620-01-00
Unavailable
3
SPRING, CLUTCH WEIGHT 1
5GH-16626-00-00
$14.49
4
BEARING, ONE WAY
5GH-16664-00-00
$149.99
5
CIRCLIP
93410-46079-00
$8.49
6
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
$36.99
7
CIRCLIP (3G2)
93450-24062-00
$3.81
8
NUT
90179-22005-00
$28.99
9
PRIMARY SLIDING SHEAVE COMP.
5GH-17606-01-00
$235.99
10
PRIMARY SLIDING SHEAVE COMP.
5GH-17620-01-00
$303.99
11
OIL SEAL
93101-31167-00
$17.99
12
WEIGHT
5GH-17632-00-00
$15.49
13
CAM
5GH-17623-00-00
$75.99
14
SLIDER
4WV-17653-00-00
$7.99
15
SPACER 1
4WV-17654-01-00
$6.99
16
O-RING
93211-52001-00
Unavailable
17
STOPPER
5GH-17639-00-00
Unavailable
18
SCREW, PAN HEAD
90157-04006-00
Unavailable
19
WASHER, PLATE(4HC)
90201-047R9-00
Unavailable
20
COLLAR
90387-1914K-00
Unavailable
21
V-BELT
5GH-17641-11-00
Unavailable
22
SHEAVE, PRIMARY FIXED
2P5-17611-00-00
Unavailable
23
WASHER, PLATE
90201-190T7-00
Unavailable
24
NUT
90179-16005-00
Unavailable
25
SECONDARY FIXED SHEAVE COMP.
5GH-17660-10-00
Unavailable
26
SECONDARY SLIDING SHEAVE
2P5-17670-00-00
Unavailable
27
OIL SEAL
93101-41004-00
Unavailable
28
O-RING (10L)
93210-44545-00
Unavailable
29
PIN, GUIDE
4CW-17664-00-00
Unavailable
30
SPRING, COMPRESSION
90501-626L9-00
Unavailable
31
SEAT, SECONDARY SPRING
4WV-17684-00-00
Unavailable
32
SEAT, SPRING
4WV-17644-00-00
Unavailable
33
NUT (5G3)
90170-36279-00
Unavailable
34
SPACER
2P5-17649-00-00
Unavailable
35
FAN
5B4-17679-00-00
Unavailable
36
NUT
90179-16005-00
Unavailable
