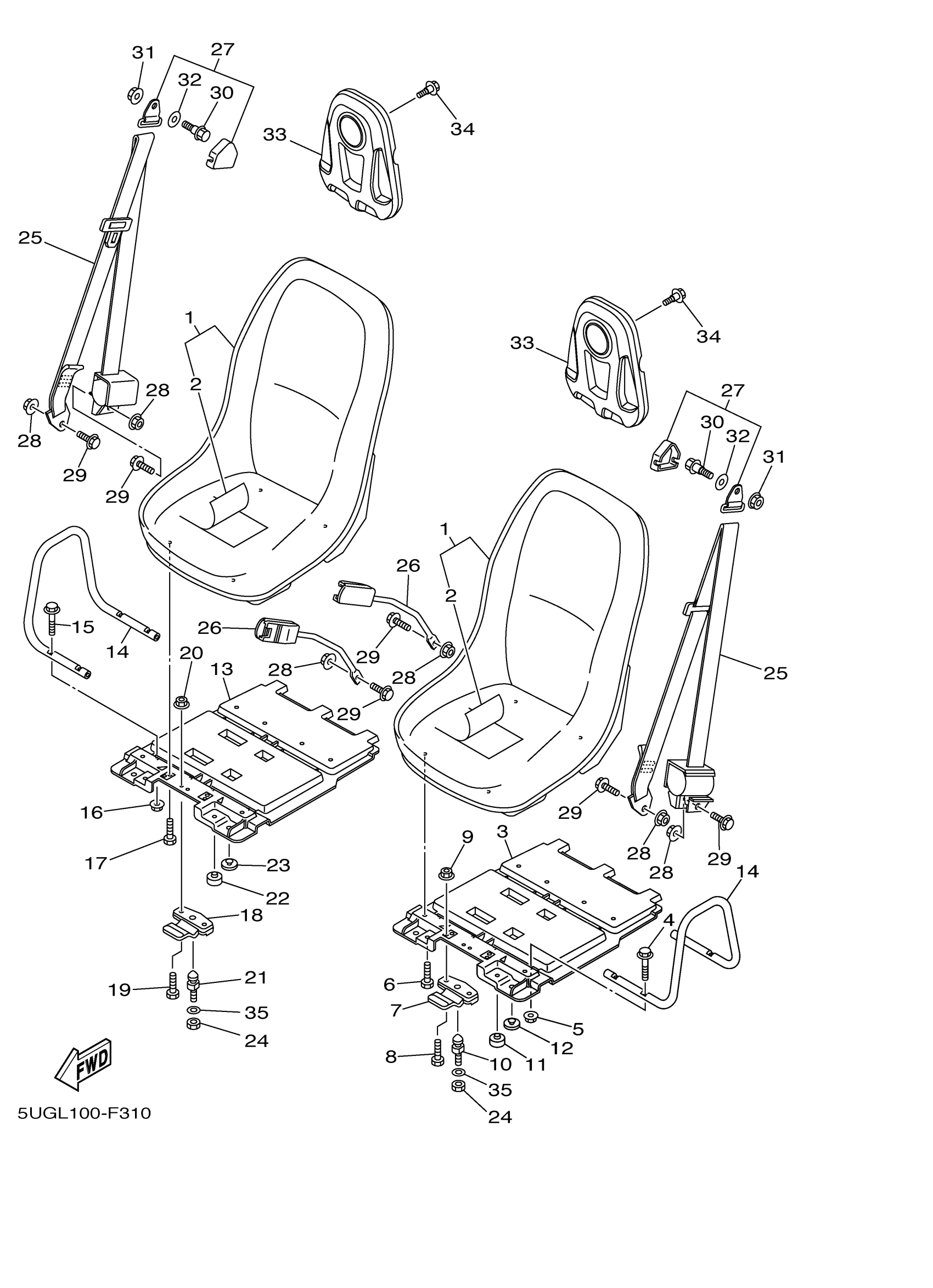

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5UG-F4710-10-00

Unavailable

2

. SEAT COVER COMP

5UG-F470F-10-00

Unavailable

3

BOTTOM PLATE COMP.

5UG-F470E-01-00

$97.99

4

BOLT, FLANGE

95812-08030-00

$3.81

5

NUT, SELF-LOCKING

90185-08169-00

$8.49

6

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

7

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

8

BOLT, FLANGE

95817-06040-00

$5.60

9

NUT,SELF-LOCKING

95607-06200-00

$12.49

10

PIN

GH1-U3774-00-00

Unavailable

11

DAMPER, SEAT

4XE-F4747-00-00

$30.99

12

PAD, BATTERY

371-82121-00-00

$8.99

13

BOTTOM PLATE COMP.

5UG-F470E-01-00

$97.99

14

ASSIST,GRIP 2

2P5-F474W-00-00

Unavailable

15

BOLT, FLANGE

95812-08030-00

$3.81

16

NUT, SELF-LOCKING

90185-08169-00

$8.49

17

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

18

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

19

BOLT, FLANGE

95817-06040-00

$5.60

20

NUT,SELF-LOCKING

95607-06200-00

$12.49

21

PIN

GH1-U3774-00-00

Unavailable

22

DAMPER, SEAT

4XE-F4747-00-00

$30.99

23

PAD, BATTERY

371-82121-00-00

$8.99

24

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

25

SEAT BELT KIT

5UG-F47K0-09-00

Unavailable

26

SEAT BELT KIT

5UG-F47K0-09-00

Unavailable

27

COVER

5UG-F4796-00-00

Unavailable

28

NUT, SELF-LOCKING(3KJ)

90185-10154-00

Unavailable

29

BOLT, FLANGE(4BD)

95817-10022-00

Unavailable

30

BOLT, SPECIAL

5UG-F3394-00-00

Unavailable

31

SPEED NUT

5UG-F4735-01-00

Unavailable

32

WASHER, PLATE

90201-11801-00

Unavailable

33

HEAD REST (BLACK)

5UG-F472L-50-00

Unavailable

34

BOLT(3KJ)

90109-063F5-00

Unavailable

35

WASHER, PLATE

90201-109U6-00

Unavailable
