- YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007
OIL PUMP

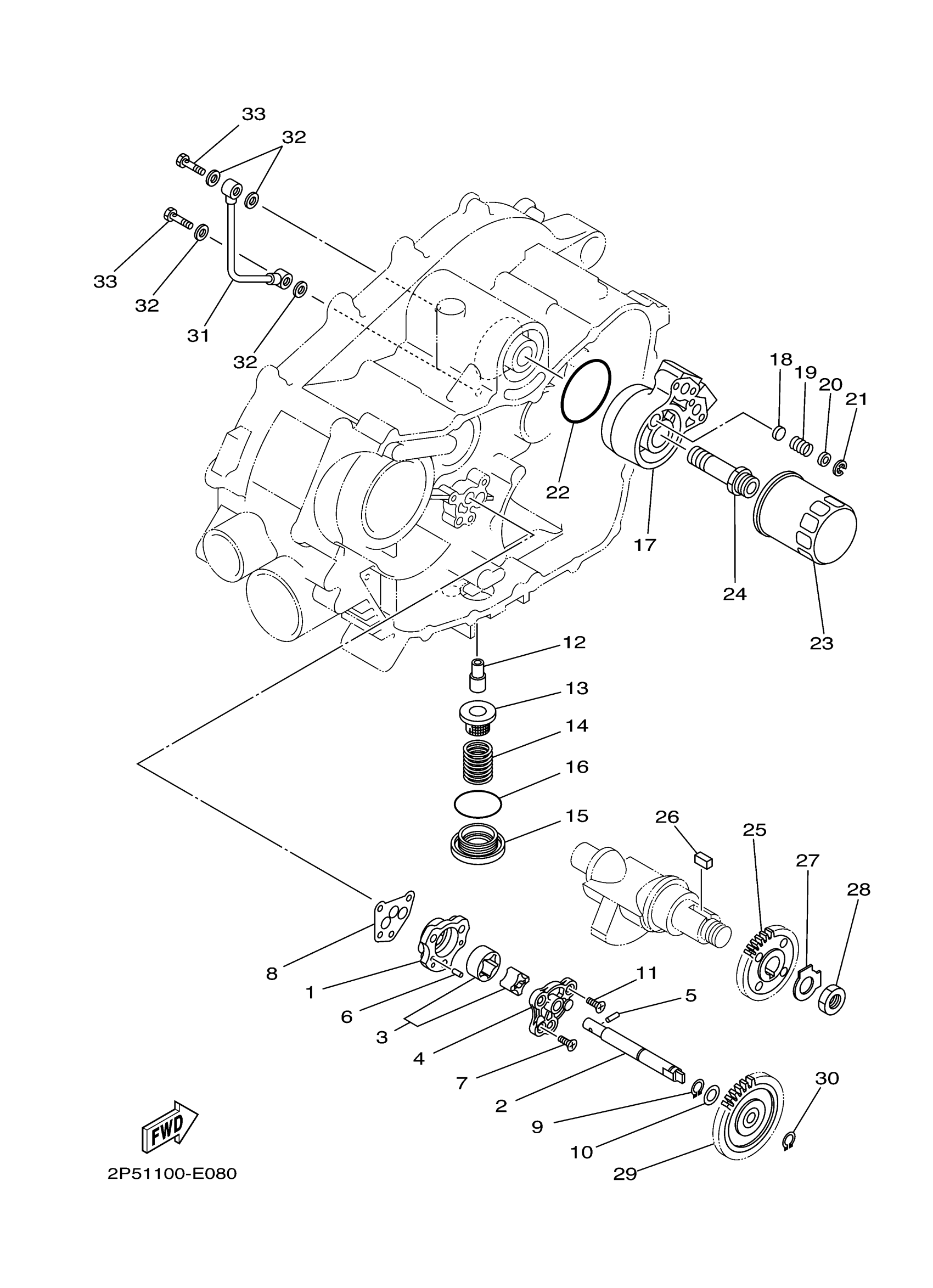

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 OIL PUMP Diagram
#
1
HOUSING, ROTOR
1UY-13336-00-00
$43.99
2
SHAFT, PUMP
5GH-13314-00-00
$93.99
3
ROTOR ASSY 1
3Y1-13310-01-00
$69.99
4
COVER, PUMP
1UY-13316-00-00
$34.99
5
PIN,DOWEL (137)
93603-12030-00
$2.07
6
PIN, DOWEL
93603-07073-00
$9.49
7
SCREW, FLAT
98707-06020-00
$8.49
8
GASKET, PUMP COVER
3GD-13329-00-00
$7.99
9
CIRCLIP(24H)
99009-11400-00
$8.49
10
WASHER, PLATE(3YL)
90201-114P2-00
$5.60
11
SCREW, FLAT HEAD
98702-06030-00
$3.98
12
PIPE, OIL 1
2XK-13416-00-00
$7.99
13
STRAINER, OIL
51Y-13411-00-00
$37.99
14
SPRING, COMPRESSION (3Y1)
90501-18576-00
$8.49
15
PLUG, DRAIN
4HC-15351-00-00
$18.49
16
O-RING (5X4)
93210-35512-00
Unavailable
17
PLATE, ADAPTOR
5UG-13461-00-00
Unavailable
18
PLUG
1YW-13497-00-00
Unavailable
19
SPRING, COMPRESSION(1YW)
90501-082E3-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
CIRCLIP(1YW)
93420-13073-00
Unavailable
22
O-RING (4H7)
93210-57428-00
Unavailable
23
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
24
BOLT, UNION(4KM)
90401-20162-00
Unavailable
25
GEAR, PUMP DRIVE
5GH-13324-00-00
Unavailable
26
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
27
WASHER, LOCK (15Y)
90215-14205-00
Unavailable
28
NUT (5H0)
90170-14284-00
Unavailable
29
GEAR, PUMP DRIVEN
5GH-13325-00-00
Unavailable
30
CIRCLIP(24H)
99009-11400-00
$8.49
31
PIPE, DELIVERY 1
4KB-13161-01-00
Unavailable
32
GASKET
90430-08119-00
Unavailable
33
BOLT, UNION
90401-08006-00
Unavailable
