Description

Price

1

JOINT, CARBURETOR 1

2P5-13586-00-00

Unavailable

2

CLIP (8L2)

90467-08017-00

$10.49

3

O-RING (10L)

93210-44545-00

$13.49

4

BOLT, SOCKET

91317-08025-00

$8.49

5

HOSE CLAMP ASSY

90450-54009-00

$11.49

6

JOINT, CARBURETOR 2

2P5-13596-00-00

$74.99

7

HOSE CLAMP ASSY

90450-47002-00

$8.49

8

HOSE CLAMP ASSY

90450-56001-00

$17.99

9

JOINT, AIR CLEANER 1

2P5-E4453-00-00

Unavailable

10

CHAMBER, AIR 2

5UG-E3591-00-00

Unavailable

11

CLIP

5UG-E4137-00-00

Unavailable

12

PIPE

5KM-14419-00-00

Unavailable

13

HOSE CLAMP ASSY

90450-58002-00

$16.99

14

CASE, AIR CLEANER 1

2P5-E4411-00-00

Unavailable

15

GUIDE (INSIDE AIR FILTER)

5UG-E4458-00-00

Unavailable

16

PLATE,ELEMENT FIT (END CAP)

5UH-E4468-00-00

Unavailable

17

ELEMENT, AIR CLEAN

5UG-E4451-00-00

Unavailable

18

CAP, CLEANER CASE 1

2P5-E4412-00-00

Unavailable

19

SEAL

2P5-E4462-00-00

Unavailable

20

CLIP, CAP FITTING

5UH-E4424-00-00

Unavailable

21

PIPE, DRAIN

5UG-E4769-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-67002-00

Unavailable

23

RIVET

90269-08813-00

Unavailable

24

DUCT

2P5-E4437-00-00

Unavailable

25

SEAL

5UG-E4476-00-00

Unavailable

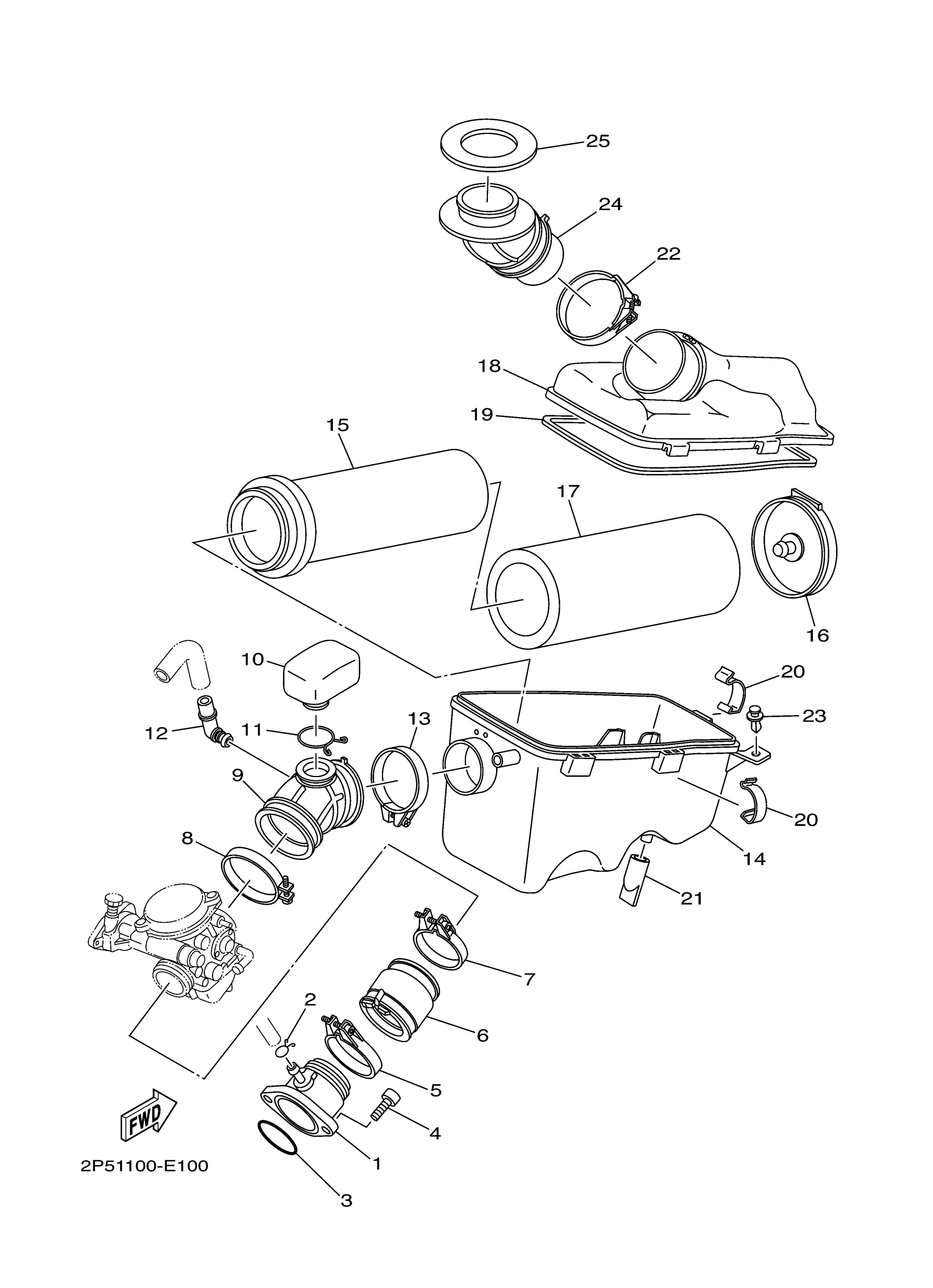

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 INTAKE Diagram

JOINT, CARBURETOR 1

CLIP (8L2)

O-RING (10L)

BOLT, SOCKET

HOSE CLAMP ASSY

JOINT, CARBURETOR 2

HOSE CLAMP ASSY

HOSE CLAMP ASSY

JOINT, AIR CLEANER 1

CHAMBER, AIR 2

CLIP

PIPE

HOSE CLAMP ASSY

CASE, AIR CLEANER 1

GUIDE (INSIDE AIR FILTER)

PLATE,ELEMENT FIT (END CAP)

ELEMENT, AIR CLEAN

CAP, CLEANER CASE 1

SEAL

CLIP, CAP FITTING

PIPE, DRAIN

HOSE CLAMP ASSY

RIVET

DUCT

SEAL
