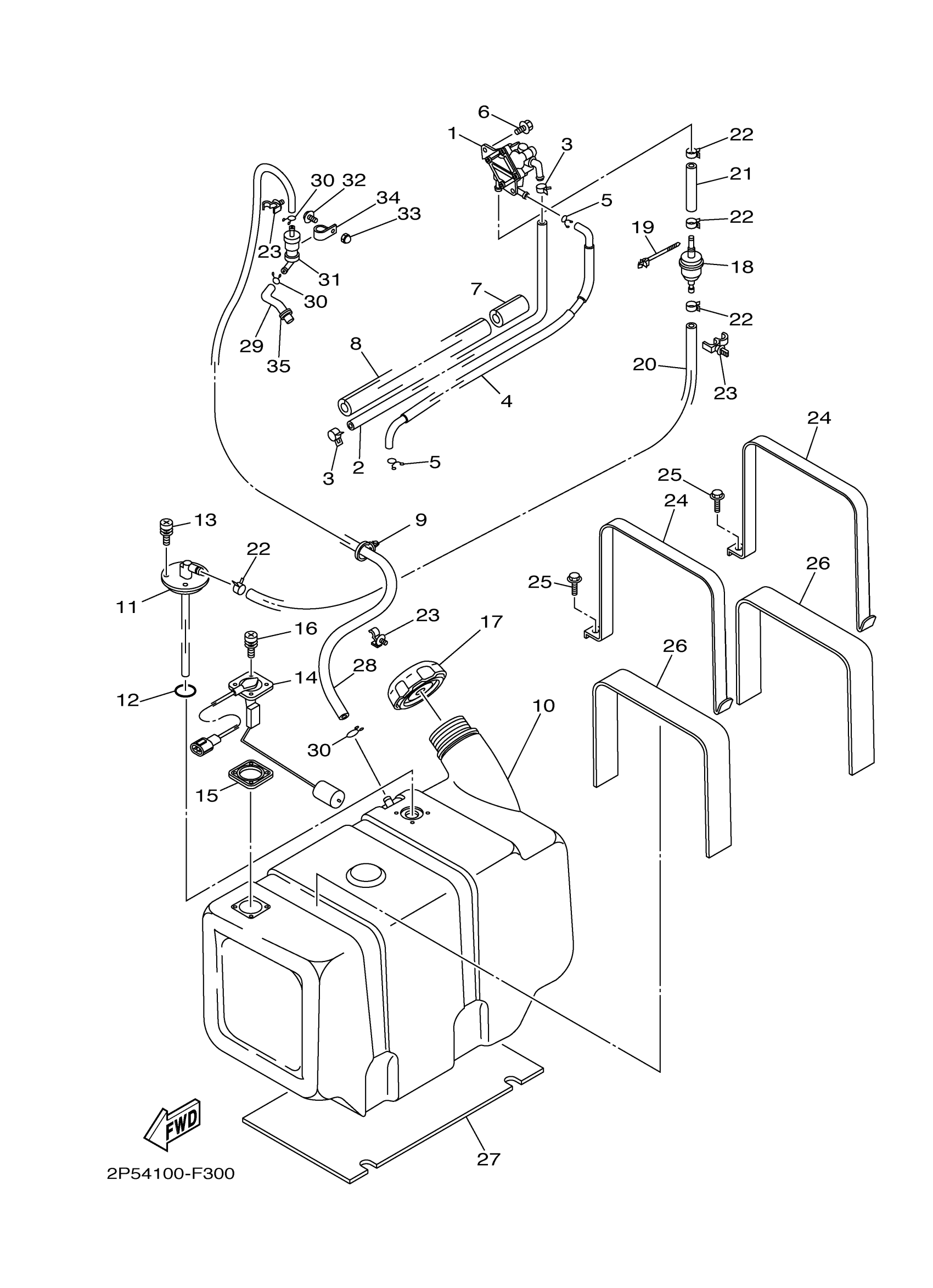

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL PUMP ASSY

5UG-13910-01-00

$122.99

2

PIPE, FUEL

2P5-E4295-10-00

Unavailable

3

CLIP (7K7)

90467-11044-00

$8.49

4

HOSE, AIR

2P5-E3895-00-00

Unavailable

5

CLIP

90467-100A1-00

$7.49

6

BOLT, FLANGE

95022-06010-00

$5.60

7

INSULATOR

5UG-14271-00-00

$13.49

8

INSULATOR

5UG-14271-50-00

$6.99

9

CLAMP

90464-25826-00

Unavailable

10

TANK, FUEL

5UG-F4111-10-00

Unavailable

11

FUEL PIPE JOINT

2P5-F4300-10-00

Unavailable

12

O-RING

93210-228C4-00

$5.60

13

BOLT, WITH WASHER

90119-05071-00

$8.49

14

SENDER UNIT ASSY, FUEL METER

5UG-85752-01-00

Unavailable

15

GASKET, SENDER UNIT

5G3-85753-00-00

$17.49

16

BOLT, WITH WASHER

90119-05071-00

$8.49

17

CAP ASSY

BVG-24610-00-00

Unavailable

18

FILTER ASSY

JN6-F4560-00-00

Unavailable

19

CLAMP

90464-38800-00

Unavailable

20

PIPE, FUEL 1

5UG-F4311-00-00

Unavailable

21

PIPE 3

5UG-F4313-00-00

Unavailable

22

CLIP (7K7)

90467-11044-00

$8.49

23

CLAMP

90464-12830-00

Unavailable

24

STAY, FUEL TANK 1

5UG-F4157-00-00

Unavailable

25

BOLT, FLANGE

90105-08879-00

Unavailable

26

DAMPER, PLATE 1

5UG-F414H-00-00

Unavailable

27

DAMPER, PLATE 2

5UG-F414J-00-00

Unavailable

28

PIPE 4

5UG-F4314-00-00

Unavailable

29

PIPE 2

5UG-F4312-00-00

Unavailable

30

CLIP

90467-100A1-00

$7.49

31

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

32

SCREW, BINDING

98907-05010-00

Unavailable

33

NUT, CROWN(47X)

90176-05054-00

Unavailable

34

CLAMP

90464-15014-00

Unavailable

35

GROMMET (1E6)

90480-15058-00

Unavailable
