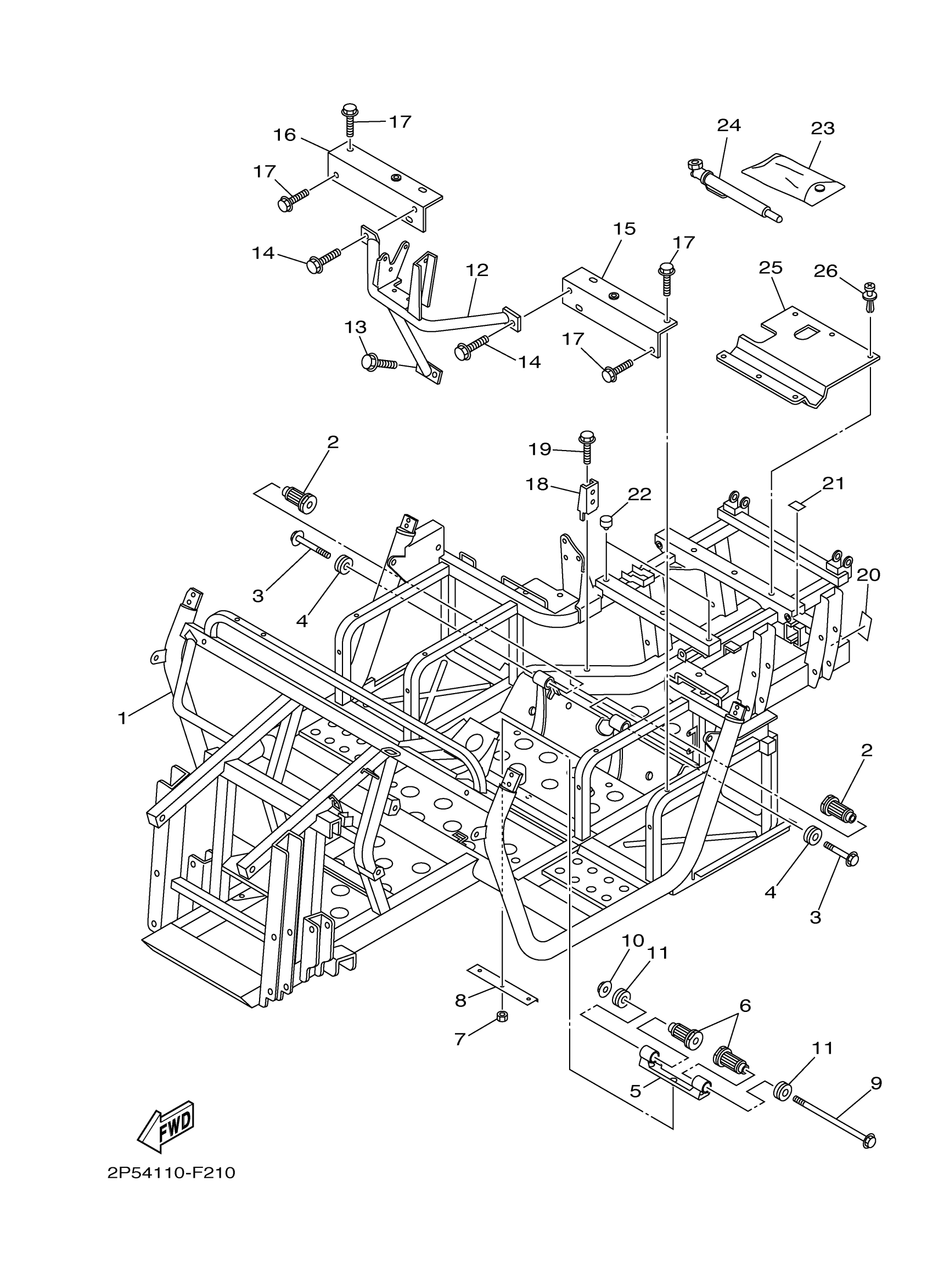

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2P5-F1110-10-00

Unavailable

2

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

3

BOLT, FLANGE

95817-10080-00

$5.60

4

DAMPER 2

5ND-F1486-00-00

$10.99

5

STAY, ENGINE 2

2P5-F1315-00-00

Unavailable

6

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

BRACKET, UNDER

2P5-F2229-00-00

Unavailable

9

BOLT, WASHER BASED

90105-10055-00

Unavailable

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

11

DAMPER 2

5ND-F1486-00-00

$10.99

12

REINFORCEMENT, FRAME 1

5UG-F1986-00-00

Unavailable

13

BOLT, FLANGE

90105-06831-00

$2.29

14

BOLT, FLANGE

95817-10020-00

$8.49

15

SUPPORT, SEAT

5UG-F114H-01-00

Unavailable

16

SUPPORT, SEAT

5UG-F114J-01-00

Unavailable

17

BOLT, FLANGE

90105-08867-00

Unavailable

18

BRKT.

5UG-F116B-00-00

Unavailable

19

BOLT, FLANGE

90105-06831-00

$2.29

20

LABEL 7

5UG-F151K-02-00

Unavailable

21

LABEL 6

5UG-F151J-00-00

Unavailable

22

STOPPER, MAIN STAND

5UG-F7114-00-00

Unavailable

23

TOOL KIT

5ND-F8100-00-00

Unavailable

24

GAUGE, AIR

5UG-F811A-00-00

Unavailable

25

INSULATOR, HEAT

5UG-F2898-00-00

Unavailable

26

BOLT, FLANGE

90105-06831-00

$2.29
