- YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007
CYLINDER HEAD

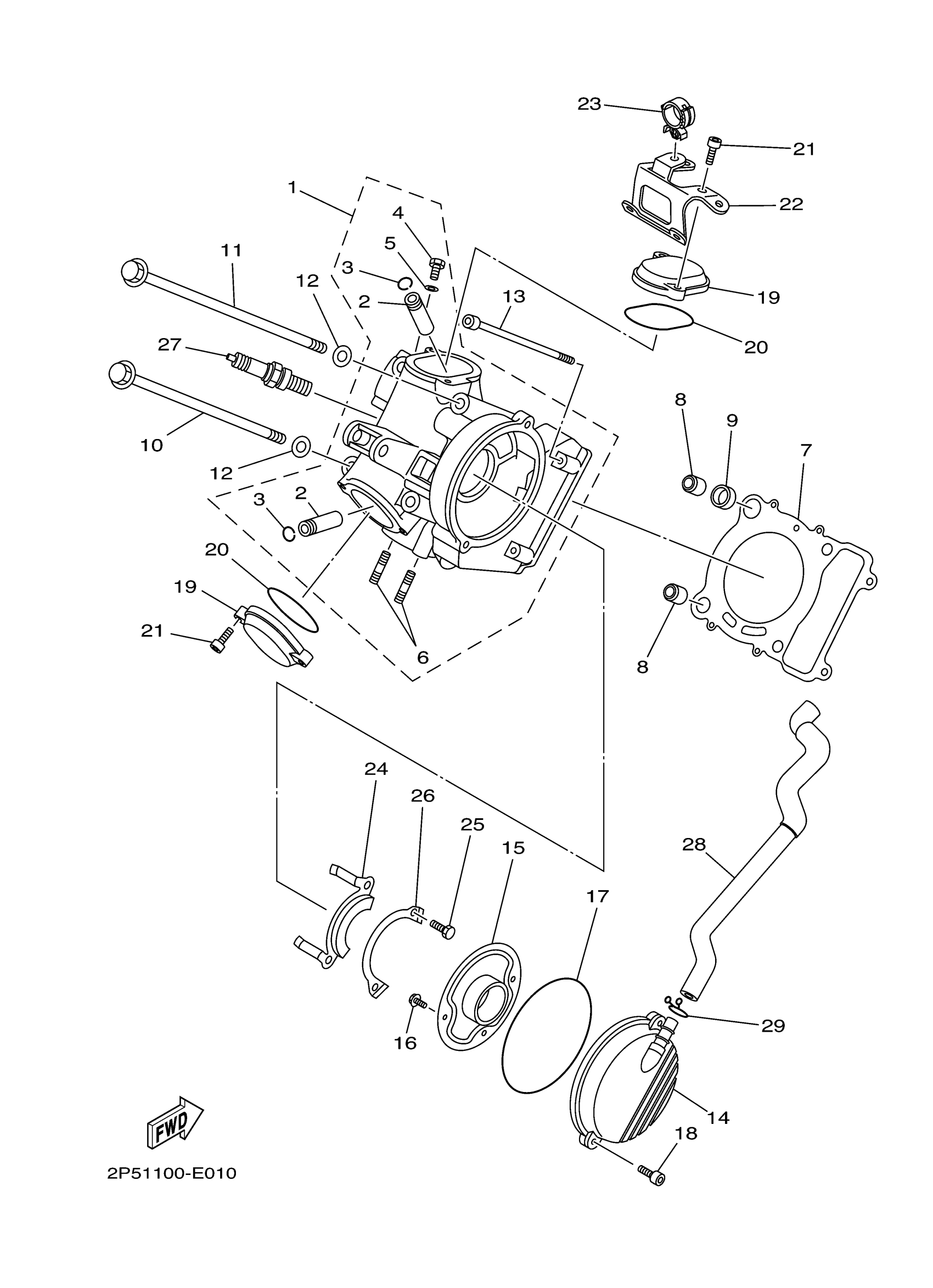

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 CYLINDER HEAD Diagram
#
Description
Price
1
CYLINDER HEAD ASSY
5GH-11101-09-00
Unavailable
2
GUIDE, INTAKE VALVE
3Y1-11133-11-00
$58.99
3
CIRCLIP (1L9)
93440-12052-00
$2.44
4
BOLT UNION 137131650000
90401-06001-00
Unavailable
5
GASKET (4V2)
90430-06166-00
$3.76
6
BOLT, STUD(2GG)
95617-08620-00
$7.49
7
GASKET, CYLINDER HEAD 1
5GH-11181-00-00
$58.99
8
PIN, DOWEL
99530-14016-00
$3.80
9
GASKET
90430-14240-00
$9.49
10
BOLT, FLANGE
90105-10137-00
$11.49
11
BOLT, FLANGE
90105-10136-00
$11.49
12
WASHER PLATE 341839090000
90201-10128-00
$4.82
13
BOLT
91312-06140-00
$11.49
14
BREATHER ASSY
4WU-11160-01-00
Unavailable
15
PLATE, BREATHER
4KB-11165-00-00
Unavailable
16
BOLT, FLANGE
95022-06012-00
Unavailable
17
O-RING (15A)
93211-06635-00
Unavailable
18
BOLT,SOCKET
91317-06025-00
Unavailable
19
COVER, CYLINDER HEAD SIDE 2
2NL-11186-12-00
Unavailable
20
O-RING
93210-57634-00
Unavailable
21
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
22
PLATE 2
2P5-1112F-00-00
Unavailable
23
CLAMP(4TR)
90464-18246-00
Unavailable
24
PLATE
5GH-1111F-00-00
Unavailable
25
BOLT (661)
97013-06012-00
Unavailable
26
WASHER, LOCK
90215-06003-00
Unavailable
27
DR8EA NGK SPLUG 10PK
DR8-EA000-00-00
Unavailable
28
PIPE, BREATHER 1
2P5-E1166-00-00
Unavailable
29
CLIP
90467-140A4-00
Unavailable
