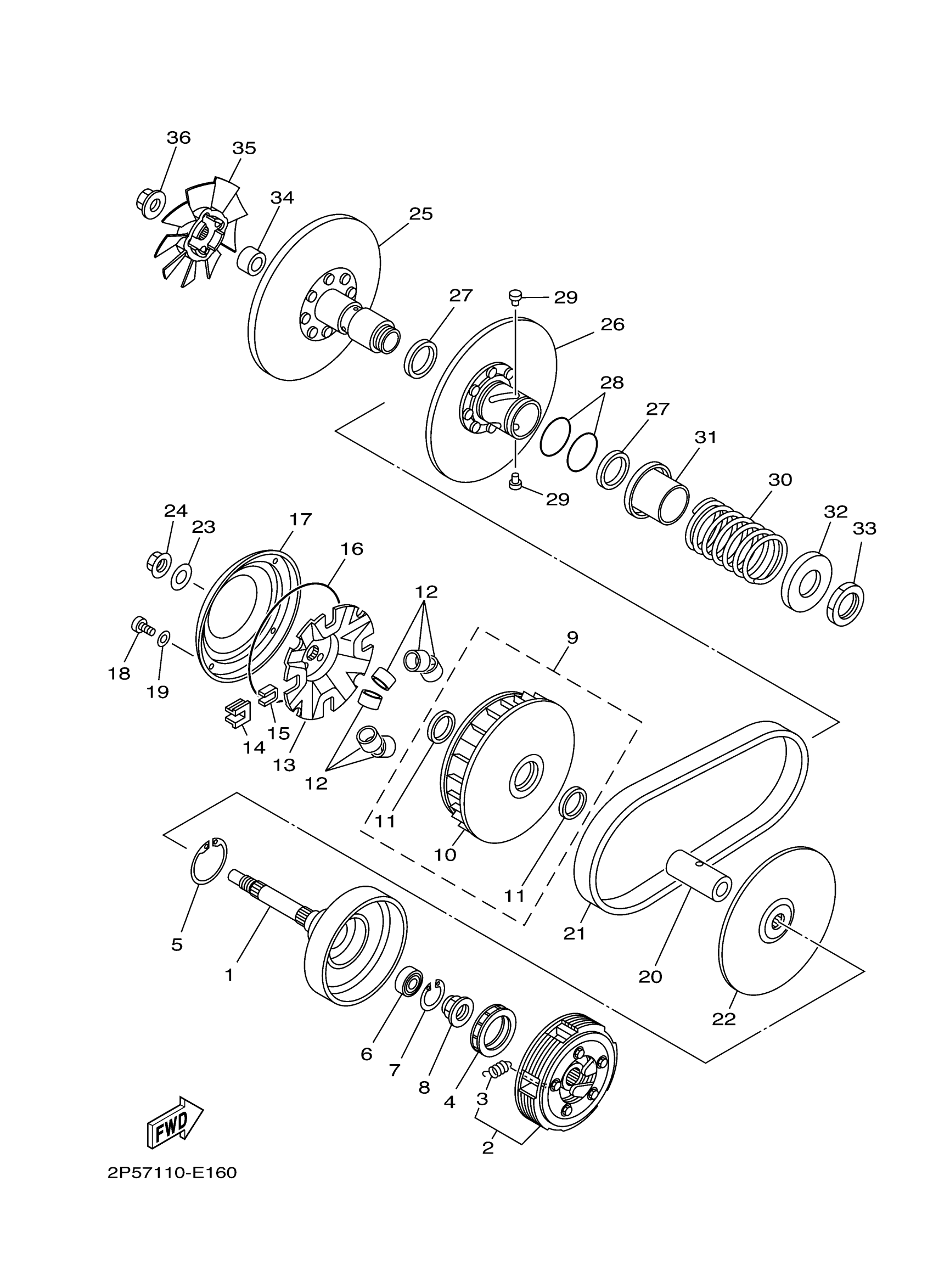

Yamaha YXR45FSEW (RHINO 450 SPECIAL EDITION) 2P56 2007 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

5GH-16611-10-00

$409.99

2

CLUTCH CARRIER ASSY

5GH-16620-01-00

Unavailable

3

SPRING, CLUTCH WEIGHT 1

5GH-16626-00-00

$14.49

4

BEARING, ONE WAY

5GH-16664-00-00

$149.99

5

CIRCLIP

93410-46079-00

$8.49

6

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

7

CIRCLIP (3G2)

93450-24062-00

$3.81

8

NUT

90179-22005-00

$28.99

9

PRIMARY SLIDING SHEAVE COMP.

5GH-17606-01-00

$235.99

10

PRIMARY SLIDING SHEAVE COMP.

5GH-17620-01-00

$303.99

11

OIL SEAL

93101-31167-00

$17.99

12

WEIGHT

5GH-17632-00-00

$15.49

13

CAM

5GH-17623-00-00

$75.99

14

SLIDER

4WV-17653-00-00

$7.99

15

SPACER 1

4WV-17654-01-00

$6.99

16

O-RING

93211-52001-00

Unavailable

17

STOPPER

5GH-17639-00-00

Unavailable

18

SCREW, PAN HEAD

90157-04006-00

Unavailable

19

WASHER, PLATE(4HC)

90201-047R9-00

Unavailable

20

COLLAR

90387-1914K-00

Unavailable

21

V-BELT

5GH-17641-11-00

Unavailable

22

SHEAVE, PRIMARY FIXED

2P5-17611-00-00

Unavailable

23

WASHER, PLATE

90201-190T7-00

Unavailable

24

NUT

90179-16005-00

Unavailable

25

SECONDARY FIXED SHEAVE COMP.

5GH-17660-10-00

Unavailable

26

SECONDARY SLIDING SHEAVE

2P5-17670-00-00

Unavailable

27

OIL SEAL

93101-41004-00

Unavailable

28

O-RING (10L)

93210-44545-00

Unavailable

29

PIN, GUIDE

4CW-17664-00-00

Unavailable

30

SPRING, COMPRESSION

90501-626L9-00

Unavailable

31

SEAT, SECONDARY SPRING

4WV-17684-00-00

Unavailable

32

SEAT, SPRING

4WV-17644-00-00

Unavailable

33

NUT (5G3)

90170-36279-00

Unavailable

34

SPACER

2P5-17649-00-00

Unavailable

35

FAN

5B4-17679-00-00

Unavailable

36

NUT

90179-16005-00

Unavailable
