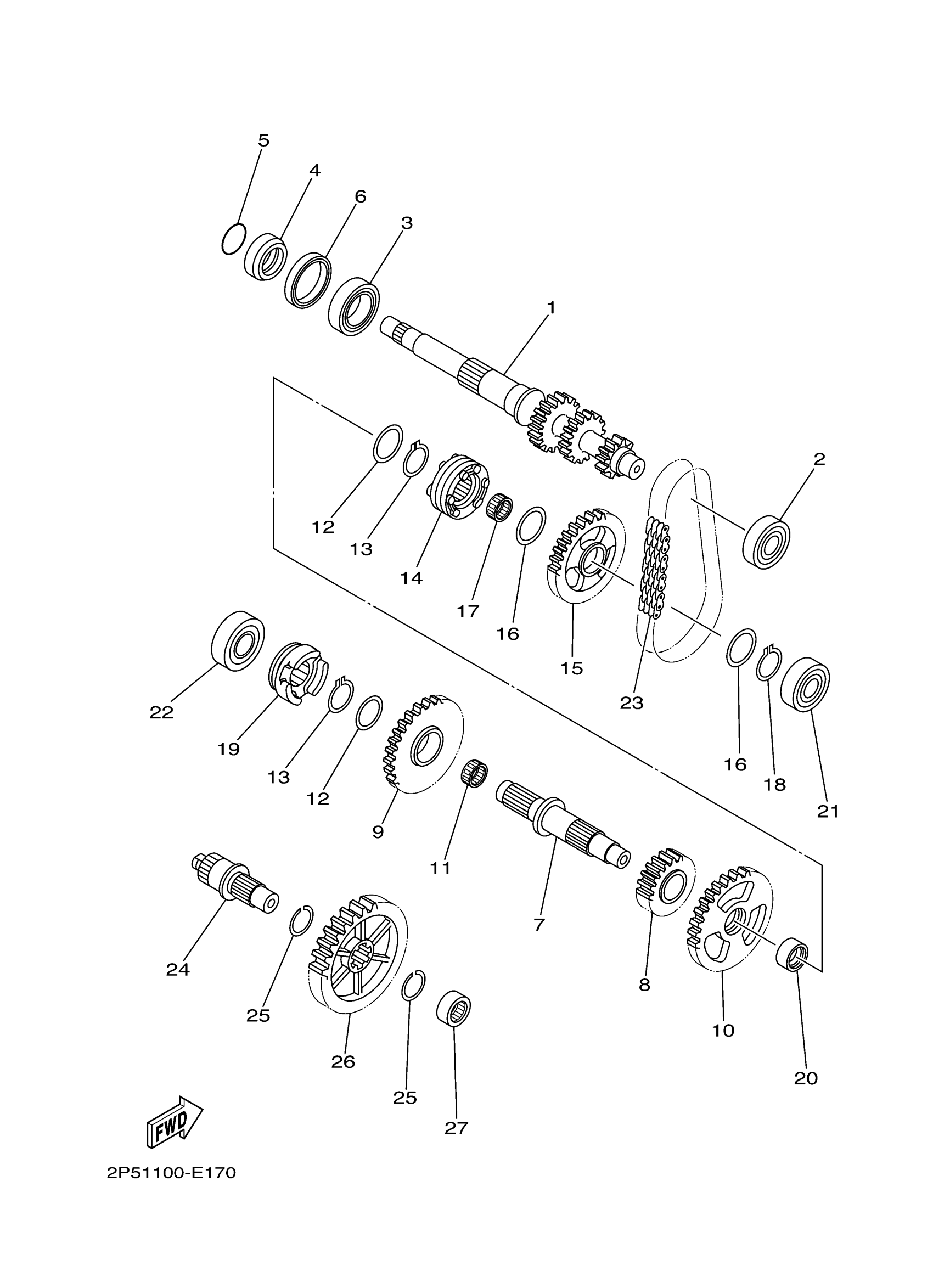

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

2P5-17681-00-00

Unavailable

2

BEARING (7K2)

93306-00423-00

$30.24

3

BEARING (5X5)

93306-20627-00

$64.75

4

COLLAR

90387-26001-00

$30.59

5

O-RING

93210-26001-00

$5.01

6

OIL SEAL

93102-42004-00

$25.32

7

DRIVE AXLE ASSY

5GH-17402-01-00

$122.64

8

GEAR, MIDDLE DRIVE (20T)

2P5-17582-00-00

Unavailable

9

GEAR, HIGH WHEEL

2P5-17223-00-00

$67.45

10

GEAR, LOW WHEEL

2P5-17233-00-00

Unavailable

11

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$28.21

12

WASHER, PLATE(8BB)

90201-250R9-00

$5.38

13

CIRCLIP (4L0)

93440-25084-00

$4.05

14

CLUTCH, DOG

5GT-17285-00-00

Unavailable

15

SPROCKET, DRIVEN

2P5-17453-00-00

Unavailable

16

WASHER PLATE 168171160000

90201-20278-00

Unavailable

17

. BEARING

93310-420F2-00

$23.64

18

CIRCLIP (525)

93410-20038-00

Unavailable

19

HOLDER

1D9-17286-00-00

Unavailable

20

COLLAR

90387-25013-00

Unavailable

21

BEARING

93306-30212-00

Unavailable

22

BEARING(3LD)

93306-20464-00

Unavailable

23

CHAIN

94591-54038-00

Unavailable

24

SHAFT

5ND-17523-00-00

Unavailable

25

CIRCLIP (4L0)

93440-25084-00

$4.05

26

GEAR, MIDDLE DRIVEN

2P5-17583-00-00

Unavailable

27

BEARING

93311-42077-00

Unavailable
