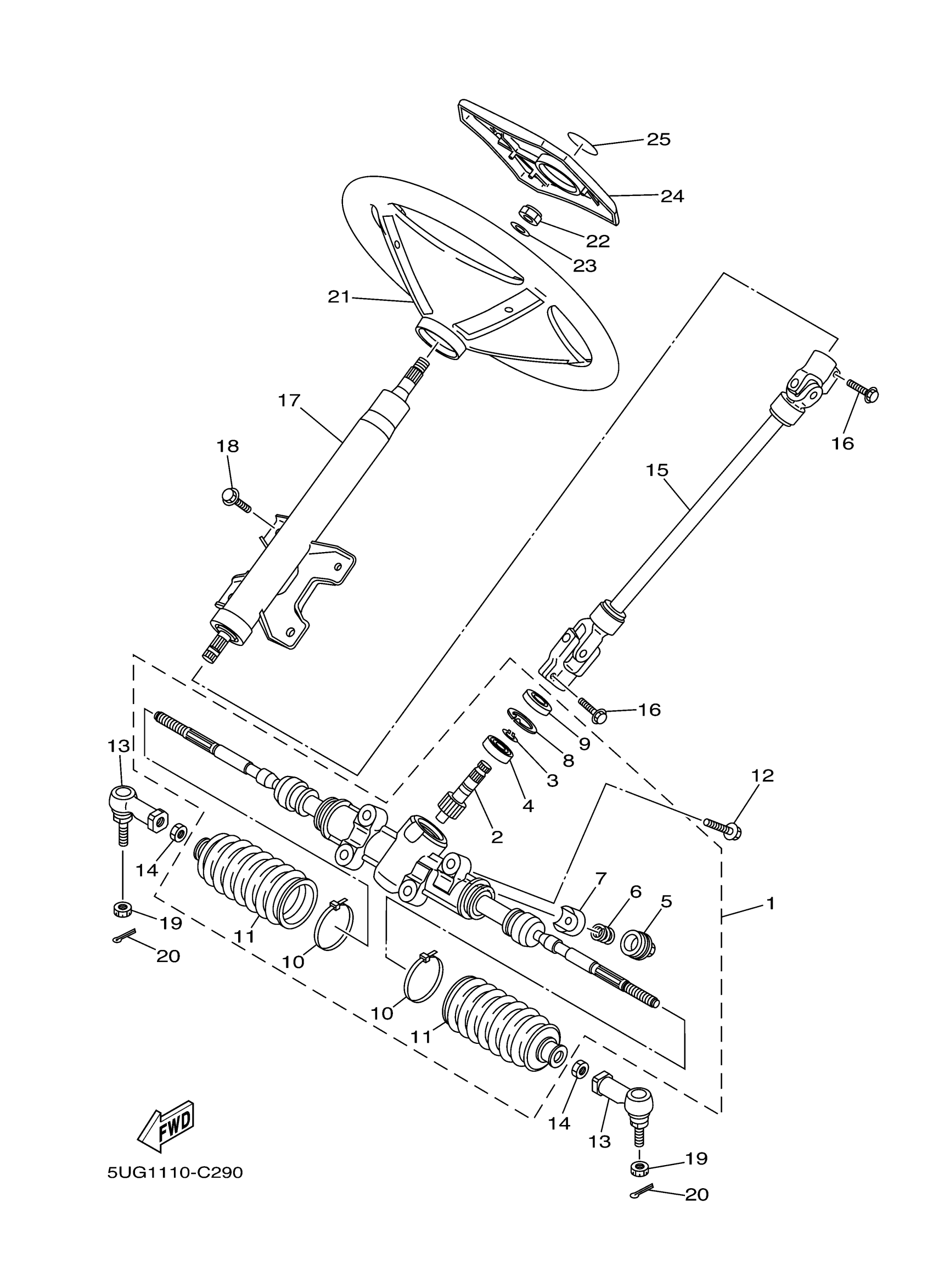

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 STEERING Diagram

#

Description
Price

1

STEERING ASSY

5UG-F3400-00-00

$393.42

2

. GEAR, STEERING DRIVE

5UG-F3863-00-00

Unavailable

3

. CIRCLIP

5UG-F3183-00-00

Unavailable

4

PLANE BEARING, STE

5UG-F3812-00-00

$14.11

5

COVER, ADJUST

5UG-F387G-00-00

$3.48

6

SPRING, PRESSURE

5UG-F387K-00-00

$1.49

7

PAD, PRESSURE

5UG-F387F-00-00

$9.56

8

RING, STOPPER

5UG-F387J-00-00

$2.20

9

SEAL

5UG-F3844-00-00

$5.47

10

BAND

5UG-F3489-00-00

Unavailable

11

SEAL,DUST 1

5UG-F3527-01-00

$6.38

12

BOLT, FLANGE

95022-10025-00

$5.88

13

JOINT, UNIVERSAL 1

5B4-23841-00-00

$59.70

14

NUT 1

1P0-F3833-00-00

$1.49

15

STEERING SHAFT ASS

5UG-F3840-01-00

$166.05

16

BOLT, FLANGE

95022-08025-00

Unavailable

17

COLUMN, STEERING

5UG-F3811-00-00

Unavailable

18

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

19

NUT, CASTLE

90171-12001-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

WHEEL, STEERING

JN3-F3838-09-00

$55.22

22

NUT, SELF-LOCKING

90185-12008-00

Unavailable

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

COVER, STEERING

5UG-F3818-00-00

Unavailable

25

TUNING FORK MARK

5FU-F175B-01-00

Unavailable
