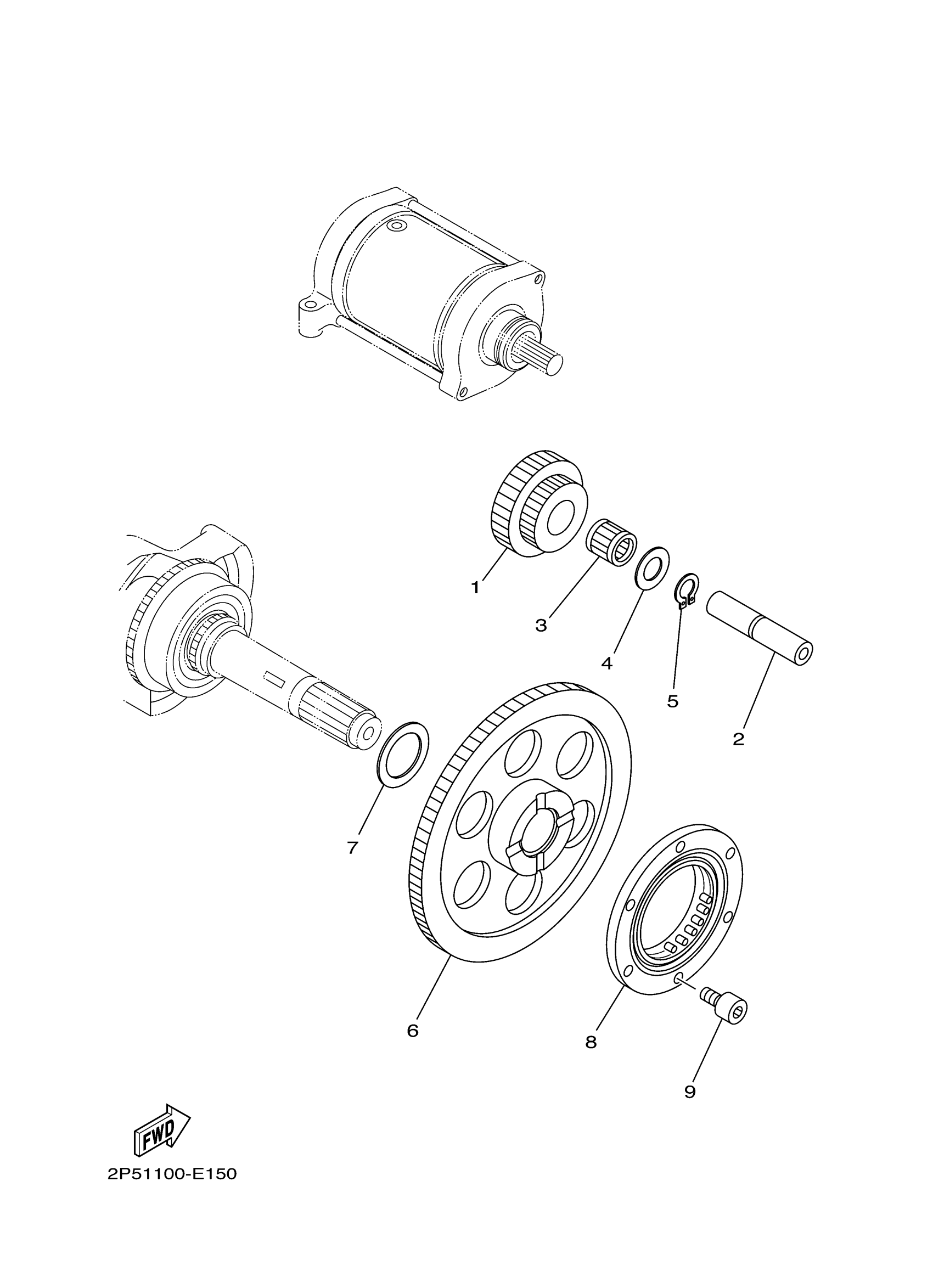

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5GH-15512-00-00

$127.89

2

SHAFT 2

4KB-15522-01-00

$21.02

3

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$30.76

4

WASHER, PLATE(52W)

90201-123K4-00

$5.83

5

CIRCLIP(10Y)

99009-12400-00

$3.08

6

GEAR, IDLER 2

5GH-15517-10-00

$187.79

7

WASHER PLATE 371115580000

90201-25291-00

$8.91

8

STARTER ONE-WAY ASSY

5KM-15590-00-00

$218.15

9

BOLT, SOCKET

91317-08016-00

$6.17
