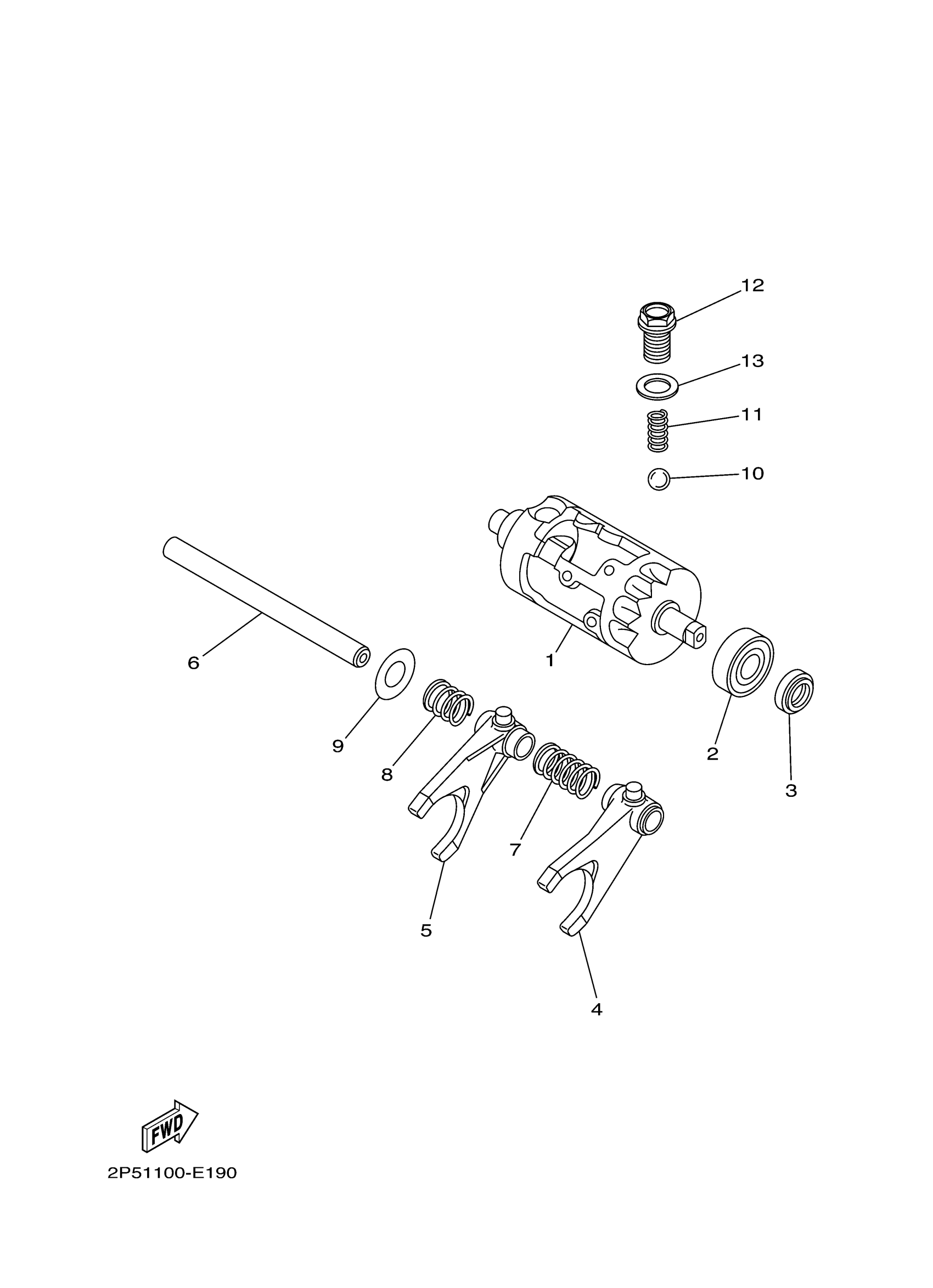

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

2P5-18540-00-00

Unavailable

2

BEARING(36F)

93306-00208-00

Unavailable

3

OIL SEAL (3X3)

93102-15212-00

$9.49

4

FORK, SHIFT 1

1D9-18511-00-00

Unavailable

5

FORK, SHIFT 2

1D9-18512-00-00

Unavailable

6

BAR, SHIFT FORK GUIDE 1

4KB-18531-01-00

Unavailable

7

SPRING, COMPRESSION

90501-130A1-00

Unavailable

8

SPRING, COMPRESSION

90501-166L4-00

Unavailable

9

WASHER PLATE 278156130000

90201-15234-00

$8.49

10

BALL

93503-08007-00

$4.15

11

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

12

BOLT, FLANGE

90105-14003-00

$8.49

13

GASKET(59V)

90430-14194-00

$8.49
