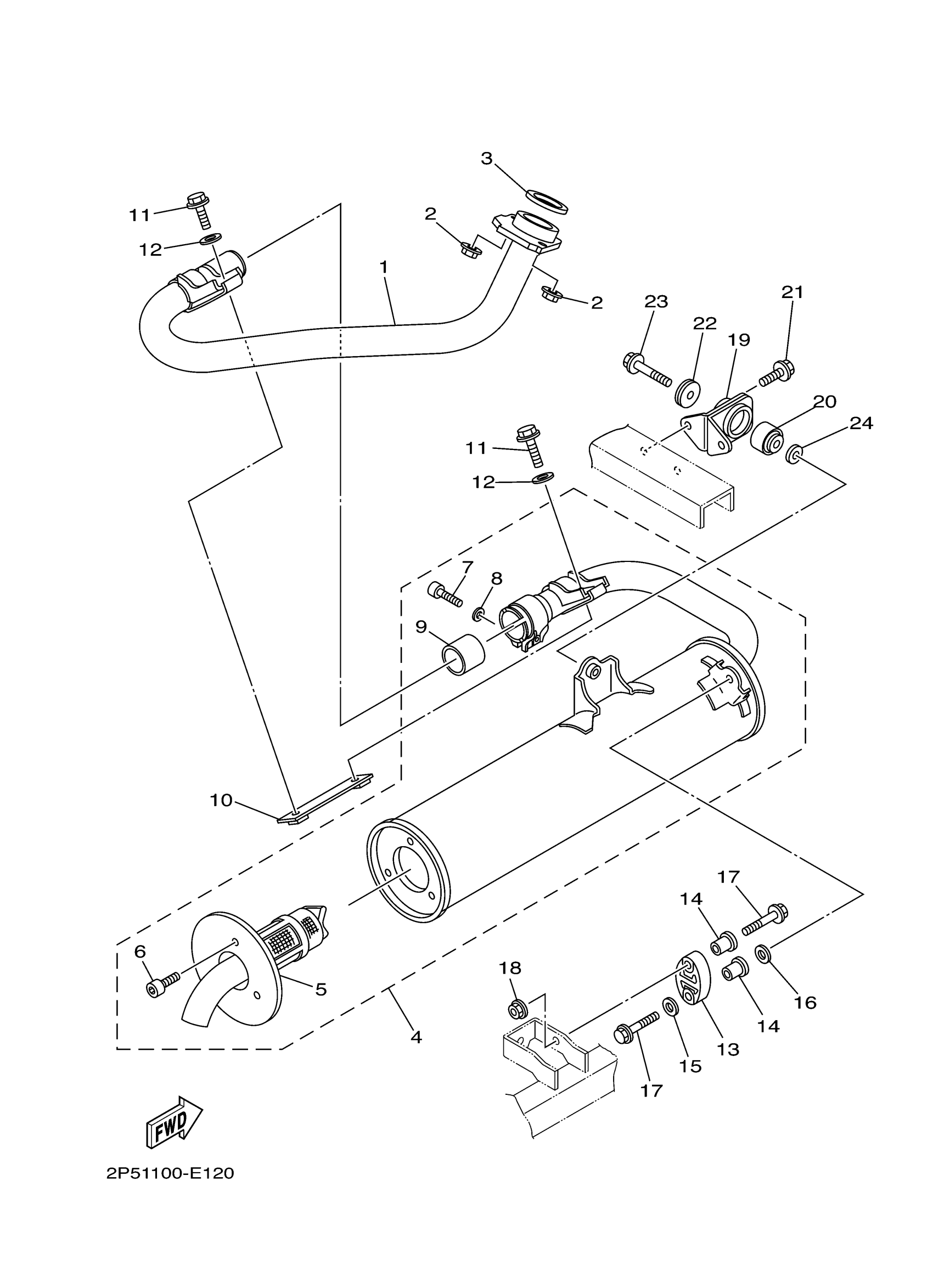

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2P5-E4611-00-00

Unavailable

2

NUT (22U)

90179-08410-00

$9.49

3

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

4

MUFFLER ASSY 1

2P5-E4710-00-00

Unavailable

5

PIPE, OUTLET

5ND-E4752-00-00

$119.99

6

BOLT,SOCKET

91380-06010-00

$8.49

7

BOLT

5ND-E4777-00-00

$5.49

8

WASHER

5ND-E4759-00-00

$6.49

9

GASKET, MUFFLER

3YF-14714-00-00

$36.99

10

STAY, EXHAUST PIPE 1

2P5-E4639-00-00

Unavailable

11

BOLT, FLANGE

95817-06020-00

$3.81

12

WASHER, PLATE

90201-06380-00

$0.60

13

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

14

COLLAR (36R)

90387-066J1-00

$8.49

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

WASHER, PLATE

90201-05016-00

Unavailable

17

BOLT, FLANGE

95817-06035-00

Unavailable

18

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

19

MUFF STAY SUB-KUMI

5UG-F1440-00-00

Unavailable

20

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

WASHER (29L)

90209-08249-00

Unavailable

23

BOLT, FLANGE

95817-08040-00

Unavailable

24

WASHER, PLATE

90201-07008-00

Unavailable
