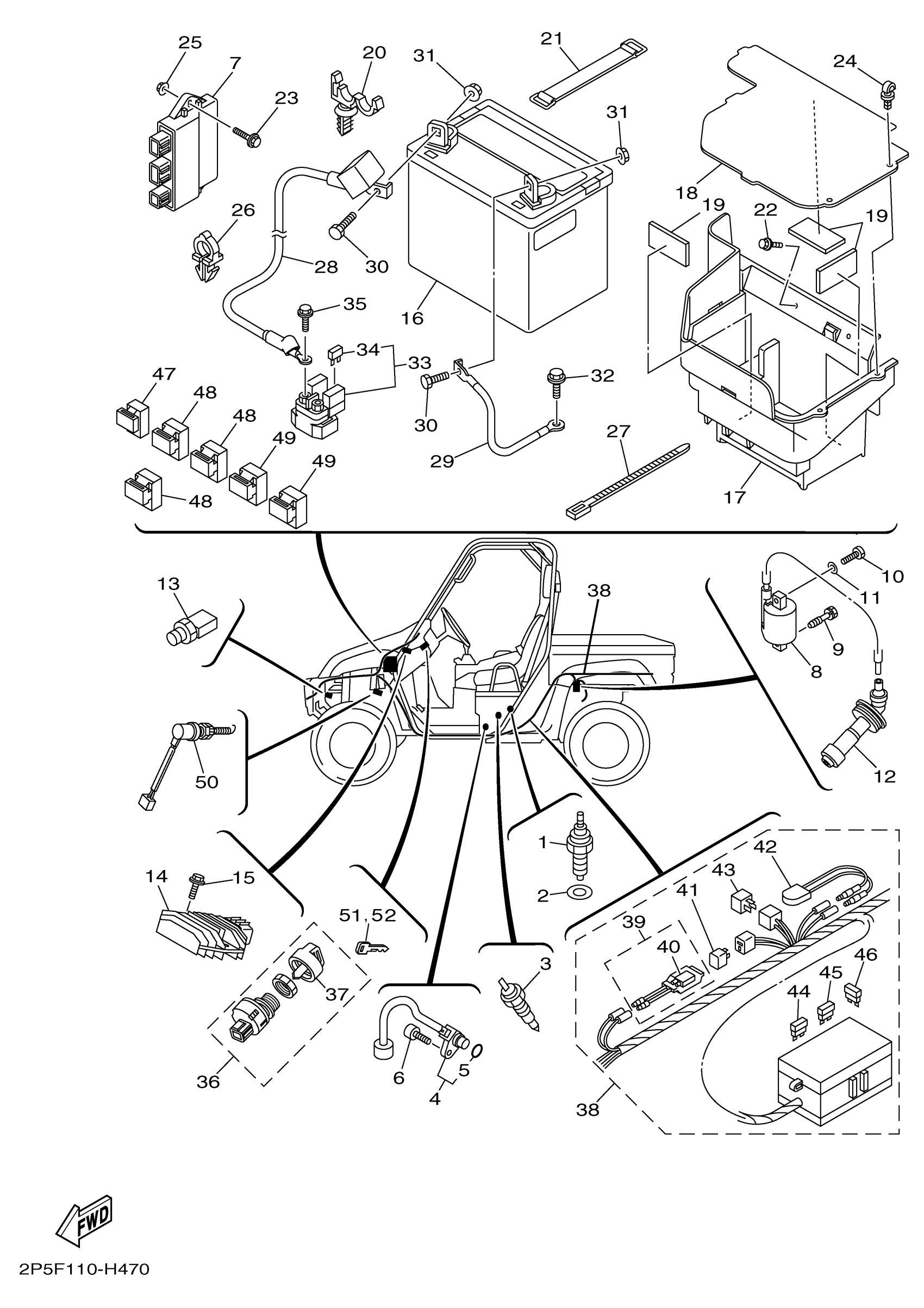

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 ELECTRICAL 1 Diagram
#
1
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
2
GASKET (1KH,1.0T)
90430-10148-00
$5.60
3
THERMO SWITCH ASSY
4BA-82560-00-00
$87.99
4
SENSOR, SPEED
2P5-83755-01-00
Unavailable
5
O-RING
4D9-81168-00-00
$6.99
6
BOLT,SOCKET
91317-06016-00
$1.25
7
C.D.I. UNIT ASSY
2P5-85540-00-00
$441.99
8
IGNITION COIL ASSY
5KM-82310-03-00
$46.99
9
BOLT (21V)
90109-06723-00
$8.49
10
BOLT, HEXAGON
97017-06020-00
$4.06
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
PLUG CAP ASSY
3NS-82370-00-00
$37.99
13
THERMO SWITCH ASSY
5GM-82560-01-00
$47.99
14
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
$204.99
15
BOLT, FLANGE
90105-06833-00
$2.28
16
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
17
BOX, BATTERY 1
5UG-H212B-02-00
Unavailable
18
COVER,BATTERY
5UG-H2129-10-00
Unavailable
19
DAMPER, SIDE COVER
4XE-F4145-00-00
Unavailable
20
CLAMP
90464-12830-00
Unavailable
21
BAND, BATTERY
22F-82131-00-00
Unavailable
22
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
23
BOLT, FLANGE
95817-06025-00
Unavailable
24
RIVET
5UG-F171S-00-00
Unavailable
25
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
26
CLAMP
90464-12830-00
Unavailable
27
CLAMP(JN6)
90464-31827-00
Unavailable
28
WIRE,PLUS LEAD
5UG-H2115-10-00
Unavailable
29
WIRE,MINUS LEAD
5UG-H2116-10-00
Unavailable
30
BOLT(6TD)
97080-08020-00
Unavailable
31
NUT
90179-08015-00
Unavailable
32
BOLT, FLANGE
95817-06014-00
Unavailable
33
STARTER RELAY ASSY (2768112-A)
5UG-81940-00-00
Unavailable
34
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
35
BOLT, FLANGE
95022-06008-00
Unavailable
36
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
37
CAP, KEY
5UG-H2579-00-00
Unavailable
38
WIRE HARNESS ASSY
2P5-82590-40-00
Unavailable
39
CIRCUIT BREAKER ASSY
5ND-82180-00-00
Unavailable
40
THERMO SWITCH ASSY
5ND-82560-00-00
Unavailable
41
DIODE ASSY
3WP-81980-00-00
Unavailable
42
THERMO SWITCH ASSY
5FU-82560-10-00
Unavailable
43
DIODE ASSY
3XV-81980-00-00
Unavailable
44
FUSE (15A)
67F-82151-50-00
Unavailable
45
. FUSE (10A)
67F-82151-40-00
Unavailable
46
. FUSE (3A)
67F-82151-30-00
Unavailable
47
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
48
RELAY ASSY
5DM-81950-01-00
Unavailable
49
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
50
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
51
KEY BLANK (A) 5000-5149
5UG-H2511-09-00
Unavailable
52
KEY BLANK (B) 5150 - 5299
5UG-H2511-19-00
Unavailable
