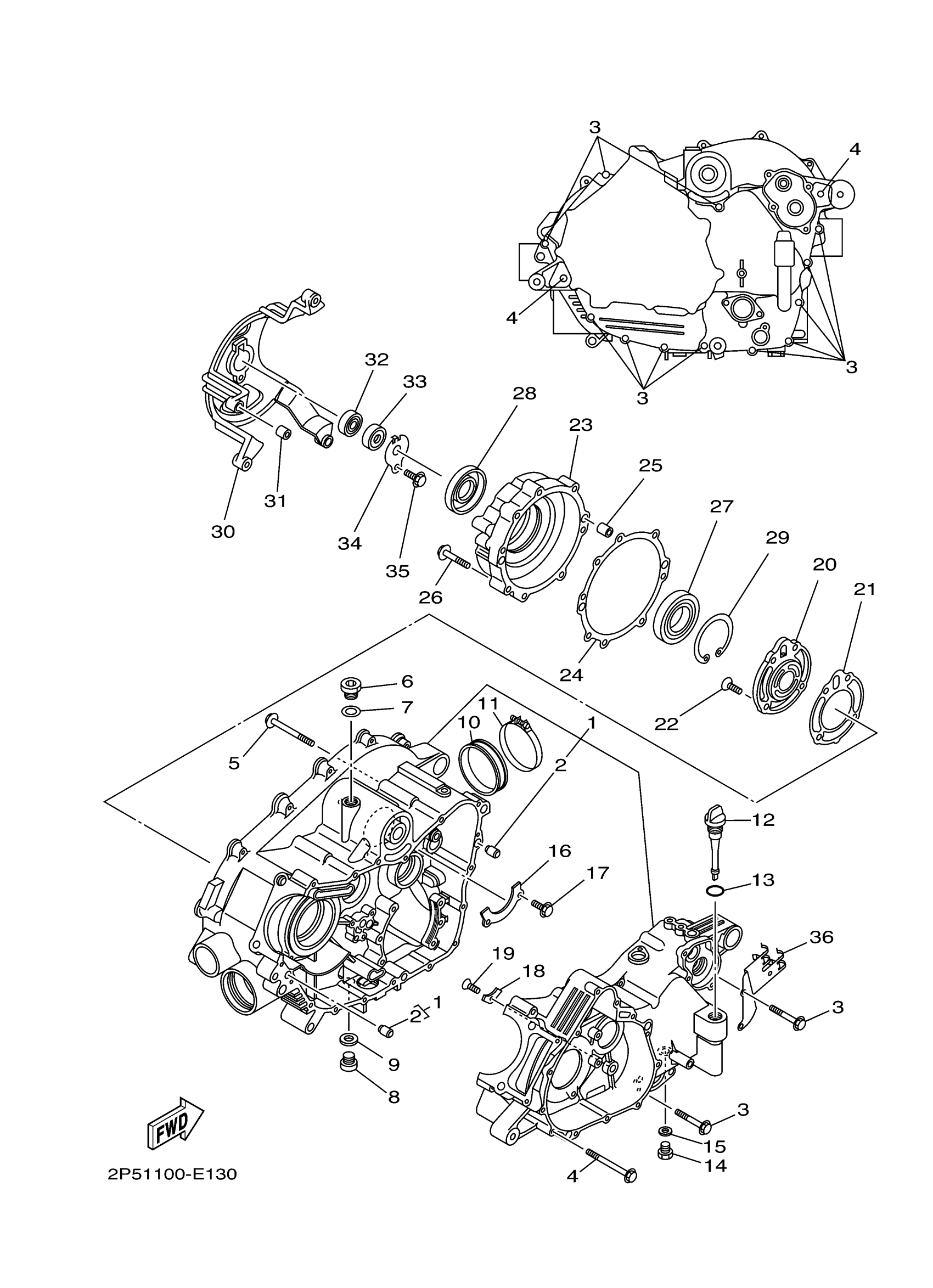

Yamaha YXR45FHY (RHINO 450 HUNTER) 2P5F 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2P5-15100-01-00

$1,343.99

2

PIN, DOWEL(3VD)

99530-10114-00

$2.03

3

BOLT, FLANGE

95022-06040-00

$2.86

4

BOLT, FLANGE

95022-06065-00

$1.69

5

BOLT, FLANGE

95022-06065-00

$1.69

6

PLUG, STRAIGHT SCREW

90340-18003-00

$4.97

7

GASKET (1J7)

90430-18130-00

$5.87

8

PLUG, STRAIGHT SCREW

90340-14002-00

$16.16

9

GASKET

214-11198-01-00

$2.58

10

PLUG

2P5-15189-00-00

$7.50

11

HOSE CLAMP ASSY

90450-60005-00

Unavailable

12

PLUG, OIL LEVEL

5GH-15362-00-00

Unavailable

13

O-RING (603)

93210-19026-00

$6.35

14

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.05

15

GASKET

214-11198-01-00

$2.58

16

PLATE, BEARING COVER

5GH-15388-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

19

SCREW, COUNTERSUNK

90151-06023-00

Unavailable

20

COVER, AIR CLEANER

5GH-15414-00-00

Unavailable

21

GASKET 1

5GH-15454-00-00

Unavailable

22

SCREW, FLAT

98707-06020-00

Unavailable

23

HOUSING, BEARING 1

5GH-15163-00-00

Unavailable

24

GASKET, CARBURETOR COVER 2

5GH-15463-00-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.03

26

BOLT, FLANGE

95022-06040-00

$2.86

27

BEARING

93316-01003-00

Unavailable

28

OIL SEAL

93102-32483-00

Unavailable

29

CIRCLIP

93420-80068-00

Unavailable

30

HOUSING, BEARING

5GH-15442-01-00

Unavailable

31

PIN, DOWEL

91810-20001-00

Unavailable

32

BEARING(82M)

93306-20117-00

Unavailable

33

OIL SEAL

93101-12168-00

Unavailable

34

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

35

BOLT, FLANGE

95022-06012-00

Unavailable

36

GUIDE, OIL HOSE

2P5-13487-00-00

Unavailable
