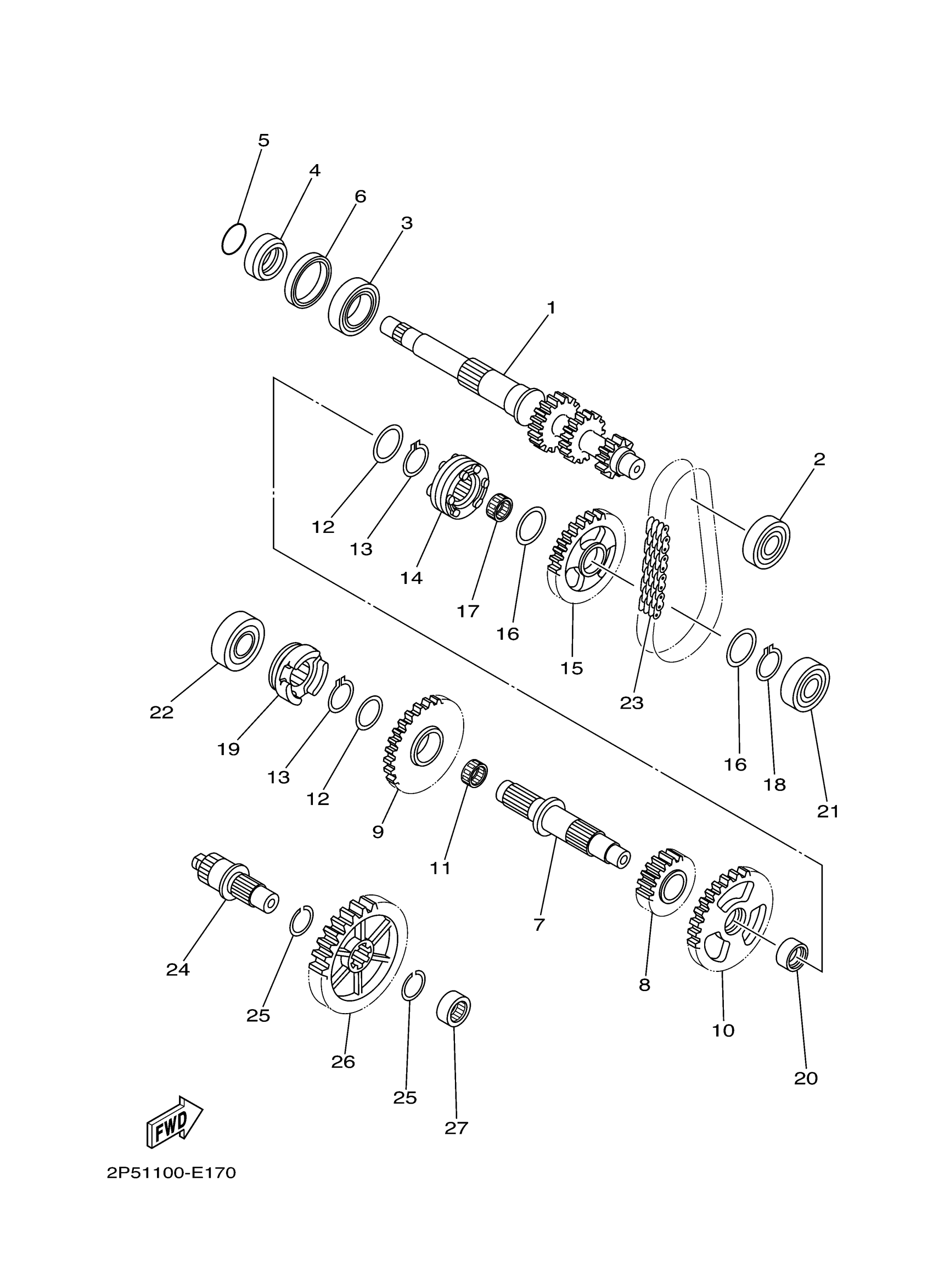

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 TRANSMISSION Diagram
#
Description
Price
1
SHAFT, SECONDARY
2P5-17681-00-00
Unavailable
2
BEARING (7K2)
93306-00423-00
$37.99
3
BEARING (5X5)
93306-20627-00
$75.99
4
COLLAR
90387-26001-00
$40.99
5
O-RING
93210-26001-00
$5.60
6
OIL SEAL
93102-42004-00
$30.99
7
DRIVE AXLE ASSY
5GH-17402-01-00
$131.99
8
GEAR, MIDDLE DRIVE (20T)
2P5-17582-00-00
Unavailable
9
GEAR, HIGH WHEEL
2P5-17223-00-00
$69.99
10
GEAR, LOW WHEEL
2P5-17233-00-00
Unavailable
11
BRG,CYL-CAL ROLLER 15G KY
93310-32590-00
$34.99
12
WASHER, PLATE(8BB)
90201-250R9-00
$5.60
13
CIRCLIP (4L0)
93440-25084-00
$5.60
14
CLUTCH, DOG
5GT-17285-00-00
Unavailable
15
SPROCKET, DRIVEN
2P5-17453-00-00
Unavailable
16
WASHER PLATE 168171160000
90201-20278-00
Unavailable
17
. BEARING
93310-420F2-00
Unavailable
18
CIRCLIP (525)
93410-20038-00
Unavailable
19
HOLDER
1D9-17286-00-00
Unavailable
20
COLLAR
90387-25013-00
Unavailable
21
BEARING
93306-30212-00
Unavailable
22
BEARING(3LD)
93306-20464-00
Unavailable
23
CHAIN
94591-54038-00
Unavailable
24
SHAFT
5ND-17523-00-00
Unavailable
25
CIRCLIP (4L0)
93440-25084-00
$5.60
26
GEAR, MIDDLE DRIVEN
2P5-17583-00-00
Unavailable
27
BEARING
93311-42077-00
Unavailable
