STAND FOOTREST

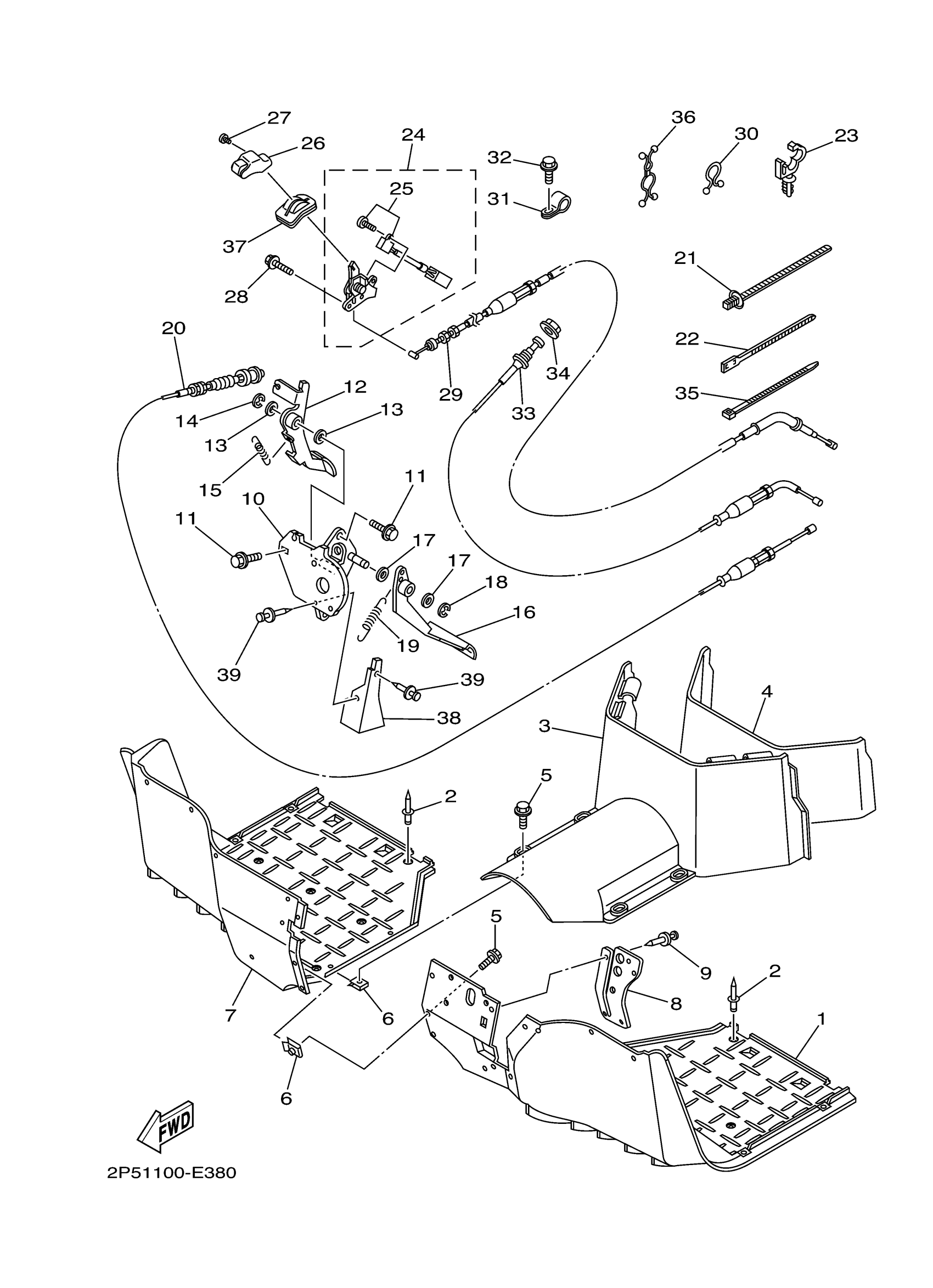

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 STAND FOOTREST Diagram
#
1
FOOTREST 1
5UG-F7411-12-00
Unavailable
2
RIVET, BLIND
90267-48820-00
Unavailable
3
COVER, FOOTREST
5UG-F7413-00-00
Unavailable
4
SEAL 2
5UG-F8228-01-00
Unavailable
5
BOLT, WITH WASHER
90119-05023-00
$8.49
6
NUT, SPRING
90183-051A1-00
Unavailable
7
FOOTREST 2
5UG-F7421-12-00
$127.99
8
COVER, DUST
5UG-F7286-00-00
Unavailable
9
RIVET
90269-06800-00
$2.18
10
BRACKET,PEDL SUPRT
5UG-F2548-01-00
Unavailable
11
BOLT, FLANGE
95812-08020-00
$2.80
12
ACCEL PEDAL ASSY
5UG-F7801-00-00
Unavailable
13
WASHER, PLATE
90201-15018-00
$7.49
14
CIRCLIP (122)
93430-12008-00
$8.49
15
SPRING, TENSION (2X4)
90506-20192-00
$7.49
16
PEDAL, BRAKE
5UG-F7200-00-00
Unavailable
17
WASHER, PLATE
90201-15018-00
$7.49
18
CIRCLIP (122)
93430-12008-00
$8.49
19
SPRING, TENSION (2X4)
90506-20192-00
$7.49
20
CABLE, THROTTLE 1
5UG-26311-10-00
Unavailable
21
CLAMP
90464-20005-00
Unavailable
22
CLAMP(JN6)
90464-40825-00
Unavailable
23
CLAMP
90464-12830-00
Unavailable
24
PARKING BRAKE COMP.
5UG-F5970-00-00
Unavailable
25
. SWITCH COMP
5UG-H251S-00-00
Unavailable
26
KNOB, PARKING LEVER
5UG-F5664-00-00
Unavailable
27
SCREW
5UG-F589H-00-00
Unavailable
28
BOLT, FLANGE
95812-06014-00
Unavailable
29
CABLE, BRAKE
2P5-26341-00-00
Unavailable
30
CLAMP (3Y2)
90464-16039-00
Unavailable
31
CLAMP
90461-08802-00
Unavailable
32
BOLT, FLANGE
90105-06831-00
Unavailable
33
CABLE, STARTER 1
2P5-26331-00-00
Unavailable
34
NUT
JU0-F6333-00-00
Unavailable
35
CLAMP
90464-16115-00
Unavailable
36
CLAMP(JN6)
90464-31827-00
Unavailable
37
COVER, HANDLE LEVER 1
5UG-F6372-00-00
Unavailable
38
PLATE, SPLASH
5UG-G5158-10-00
Unavailable
39
RIVET
90269-06800-00
$2.18
