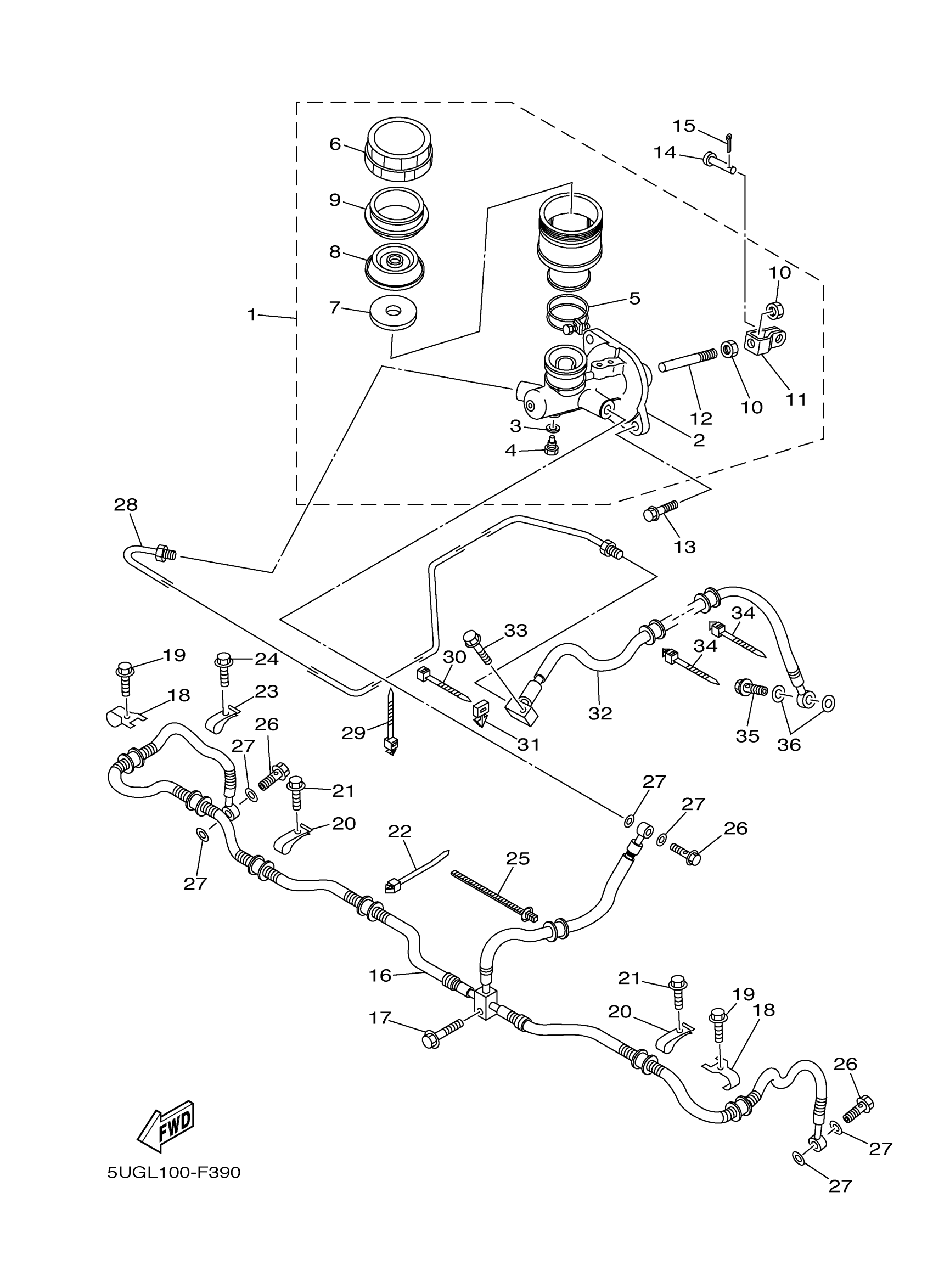

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 REAR MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5UG-2583T-00-00

$305.99

2

CYLINDER KIT, MASTER

5UG-W0042-00-00

$97.99

3

WASHER, OIL BOLT

5UG-25878-00-00

Unavailable

4

BOLT, OIL 1

5UG-25877-00-00

$0.99

5

BAND

5UG-25719-00-00

$6.99

6

CAP, RESERVOIR

5UG-25852-00-00

$17.49

7

FLOAT, RESERVOIR

5UG-25853-00-00

$10.99

8

DIAPHRAGM, RESERVOIR

5UG-25854-00-00

$9.99

9

BUSH,DIAPHRAGM

5UG-25855-00-00

$5.49

10

NUT, HEXAGON SMALL

95317-08700-00

$9.49

11

JOINT

2YK-27222-00-00

$21.99

12

PUSH ROD COMP.

5UG-25880-00-00

Unavailable

13

BOLT, FLANGE

90105-08129-00

$4.88

14

PIN, CLEVIS

90240-08005-00

$8.49

15

PIN, COTTER

91490-20025-00

$1.99

16

HOSE,BRAKE 1

5UG-F5872-03-00

Unavailable

17

BOLT, FLANGE

95822-06025-00

Unavailable

18

HOLDER, BRAKE HOSE

5ND-F5875-01-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

BAND

5UG-F3192-01-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

Unavailable

22

CLAMP(JN6)

90464-31827-00

Unavailable

23

BAND

5UG-F3192-01-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

Unavailable

25

CLAMP

90464-20005-00

Unavailable

26

BOLT, UNION

90401-10015-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

PIPE, BRAKE

5UG-F5871-00-00

Unavailable

29

CLAMP

90464-20005-00

Unavailable

30

CLAMP(JN6)

90464-31827-00

Unavailable

31

HOLDER

5UG-F2465-00-00

Unavailable

32

HOSE,BRAKE 2

5UG-F5873-10-00

Unavailable

33

BOLT, FLANGE

90105-06833-00

Unavailable

34

CLAMP

90464-20005-00

Unavailable

35

BOLT, UNION

90401-10015-00

Unavailable

36

WASHER, PLATE(481)

90201-10118-00

Unavailable
