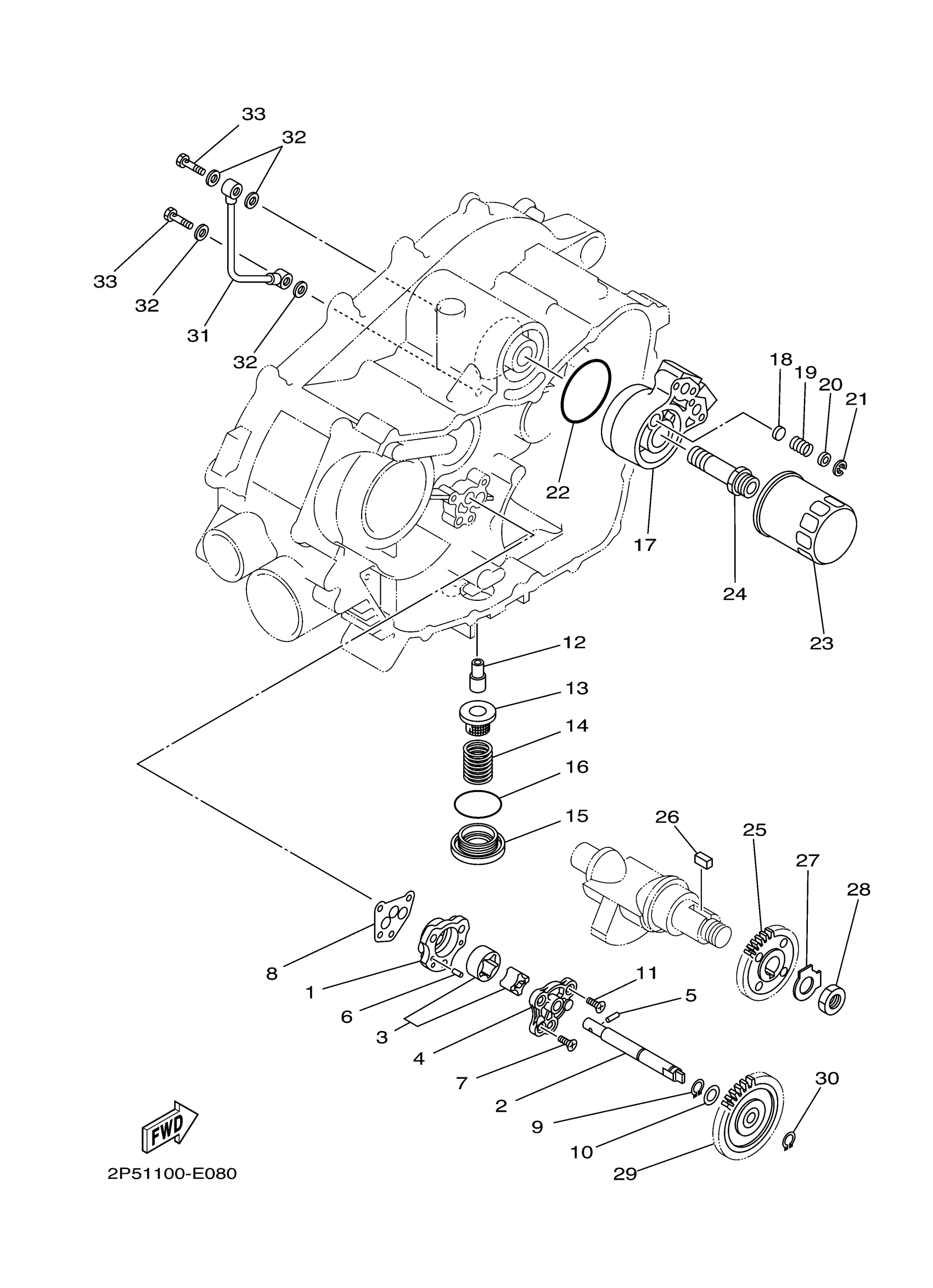

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 OIL PUMP Diagram

#

Description
Price

1

HOUSING, ROTOR

1UY-13336-00-00

$43.99

2

SHAFT, PUMP

5GH-13314-00-00

$93.99

3

ROTOR ASSY 1

3Y1-13310-01-00

$69.99

4

COVER, PUMP

1UY-13316-00-00

$34.99

5

PIN,DOWEL (137)

93603-12030-00

$2.07

6

PIN, DOWEL

93603-07073-00

$9.49

7

SCREW, FLAT

98707-06020-00

$8.49

8

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

9

CIRCLIP(24H)

99009-11400-00

$8.49

10

WASHER, PLATE(3YL)

90201-114P2-00

$5.60

11

SCREW, FLAT HEAD

98702-06030-00

$3.98

12

PIPE, OIL 1

2XK-13416-00-00

$7.99

13

STRAINER, OIL

51Y-13411-00-00

$37.99

14

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

15

PLUG, DRAIN

4HC-15351-00-00

$18.49

16

O-RING (5X4)

93210-35512-00

Unavailable

17

PLATE, ADAPTOR

5UG-13461-00-00

Unavailable

18

PLUG

1YW-13497-00-00

Unavailable

19

SPRING, COMPRESSION(1YW)

90501-082E3-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

CIRCLIP(1YW)

93420-13073-00

Unavailable

22

O-RING (4H7)

93210-57428-00

Unavailable

23

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

24

BOLT, UNION(4KM)

90401-20162-00

Unavailable

25

GEAR, PUMP DRIVE

5GH-13324-00-00

Unavailable

26

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

27

WASHER, LOCK (15Y)

90215-14205-00

Unavailable

28

NUT (5H0)

90170-14284-00

Unavailable

29

GEAR, PUMP DRIVEN

5GH-13325-00-00

Unavailable

30

CIRCLIP(24H)

99009-11400-00

$8.49

31

PIPE, DELIVERY 1

4KB-13161-01-00

Unavailable

32

GASKET

90430-08119-00

Unavailable

33

BOLT, UNION

90401-08006-00

Unavailable
