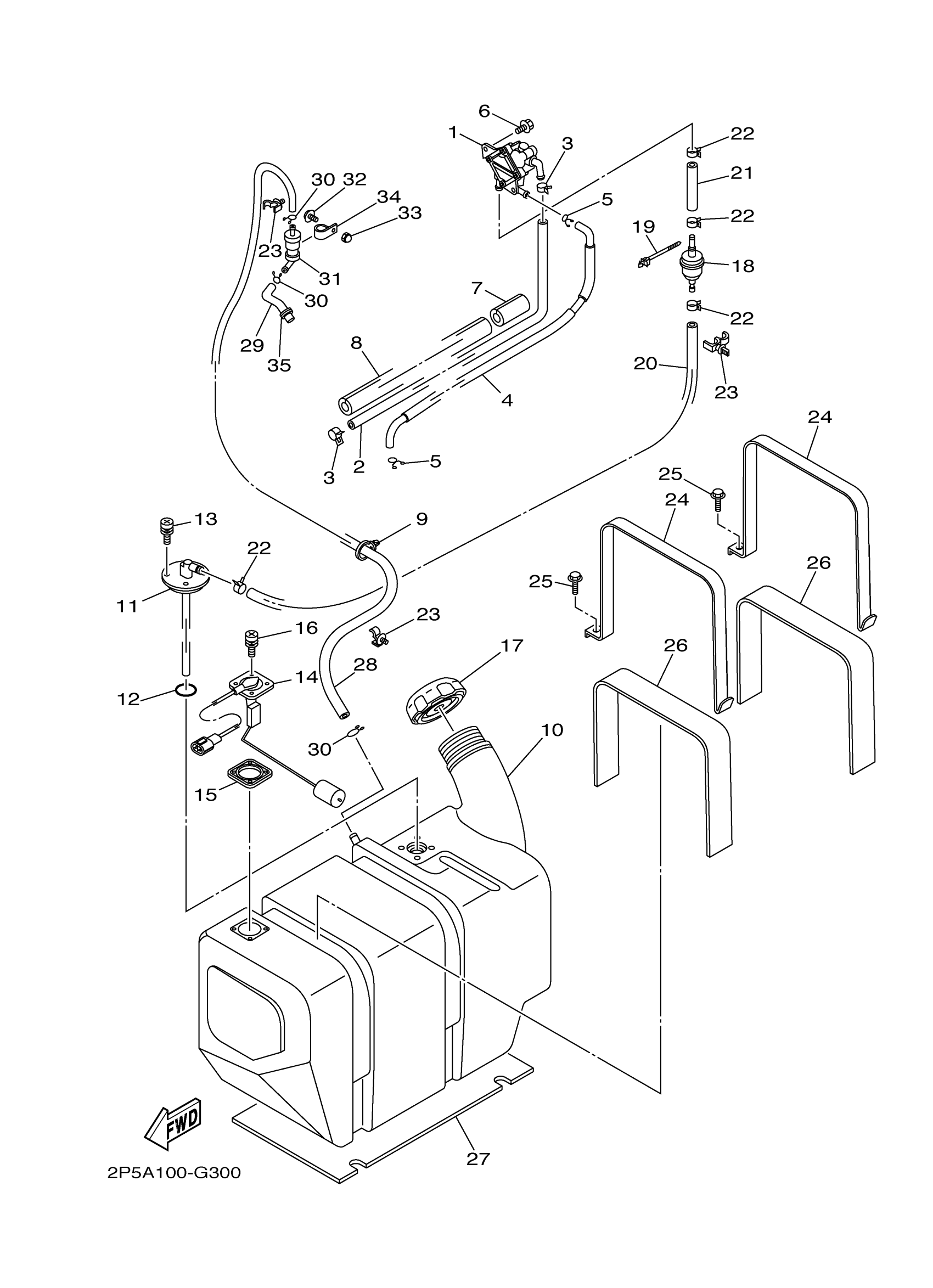

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 FUEL TANK Diagram
#
Description
Price
2
PIPE, FUEL
2P5-14295-10-00
Unavailable
4
HOSE, AIR
2P5-E3895-00-00
Unavailable
9
CLAMP
90464-25826-00
Unavailable
10
TANK, FUEL
5UG-F4111-30-00
Unavailable
11
FUEL PIPE JOINT
2P5-F4300-10-00
Unavailable
14
SENDER UNIT ASSY, FUEL METER
5UG-85752-01-00
Unavailable
17
CAP ASSY
BVG-24610-00-00
Unavailable
18
FILTER ASSY
JN6-F4560-00-00
Unavailable
19
CLAMP
90464-38800-00
Unavailable
20
PIPE, FUEL 1
5UG-24311-10-00
Unavailable
21
PIPE 3
5UG-24313-10-00
Unavailable
23
CLAMP
90464-12830-00
Unavailable
24
STAY, FUEL TANK 1
5UG-F4157-00-00
Unavailable
25
BOLT, FLANGE
90105-08879-00
Unavailable
26
DAMPER, PLATE 1
5UG-F414H-00-00
Unavailable
27
DAMPER, PLATE 2
5UG-F414J-00-00
Unavailable
28
PIPE 4
5UG-F4314-00-00
Unavailable
29
PIPE 2
5UG-F4312-00-00
Unavailable
31
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
32
SCREW, BIND(6K1)
98980-05010-00
Unavailable
33
NUT, CROWN
90176-05006-00
Unavailable
34
CLAMP
90464-15014-00
Unavailable
35
GROMMET (1E6)
90480-15058-00
Unavailable
