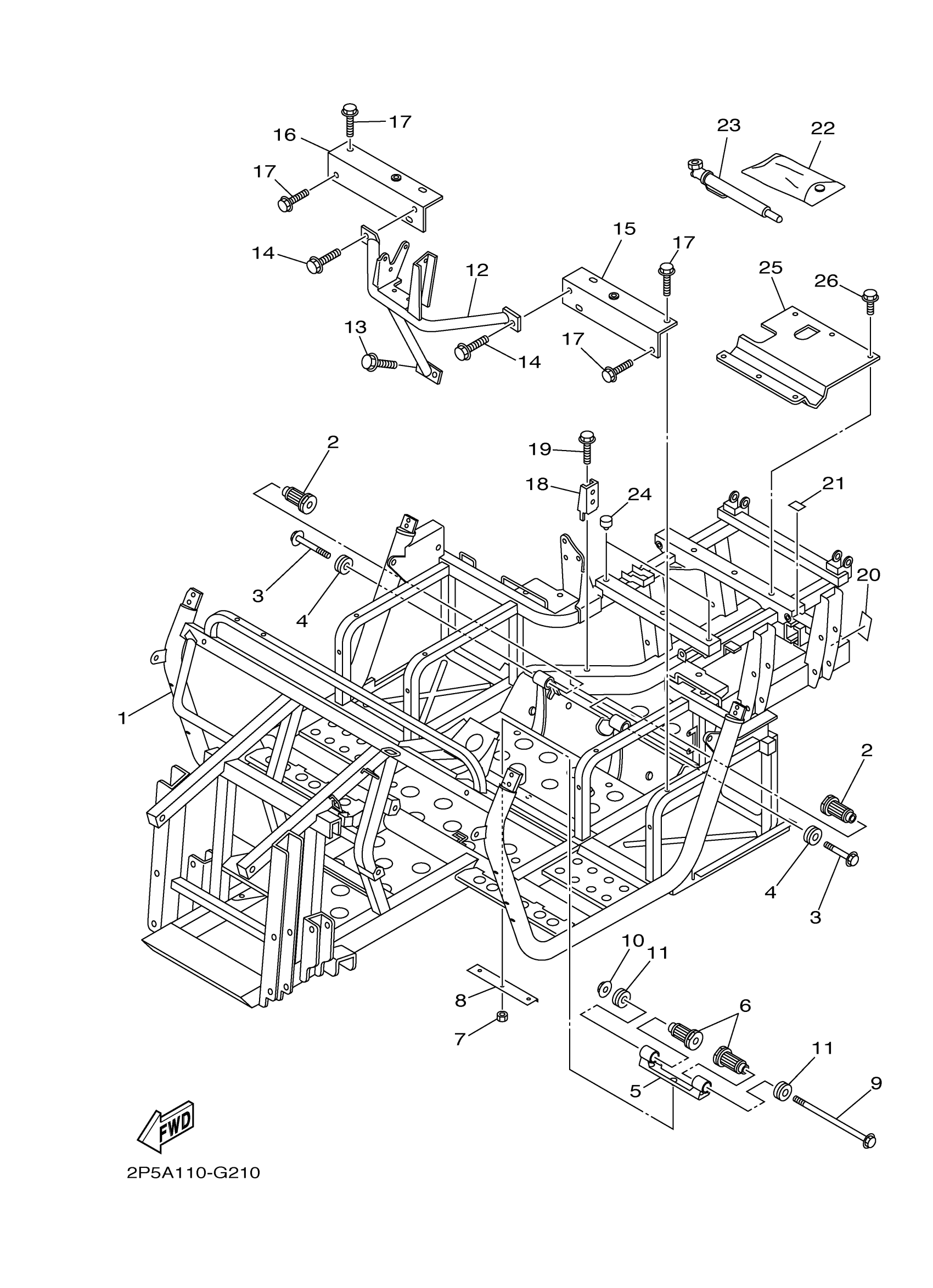

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 FRAME Diagram
#
Description
Price
1
FRAME COMP.
2P5-F1110-20-00
Unavailable
2
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
3
BOLT, FLANGE
95812-10080-00
$9.49
4
DAMPER 2
5ND-F1486-00-00
$10.99
5
STAY, ENGINE 2
2P5-F1315-00-00
Unavailable
6
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
7
NUT, SELF-LOCKING
95602-08200-00
$3.20
8
BRACKET, UNDER
2P5-F2229-00-00
Unavailable
9
BOLT, FLANGE
90105-10284-00
$10.49
10
NUT, S/L FLANGE
95602-10200-00
$4.82
11
DAMPER 2
5ND-F1486-00-00
$10.99
12
REINFORCEMENT, FRAME 1
5UG-F1986-00-00
Unavailable
13
BOLT, FLANGE
90105-06831-00
$2.29
14
BOLT, FLANGE
95817-10020-00
$8.49
15
SUPPORT, SEAT
5UG-F114H-01-00
Unavailable
16
SUPPORT, SEAT
5UG-F114J-01-00
Unavailable
17
BOLT, FLANGE
90105-08867-00
Unavailable
18
BRKT.
5UG-F116B-00-00
Unavailable
19
BOLT, FLANGE
90105-06831-00
$2.29
20
LABEL 7
5B4-F151K-00-00
Unavailable
21
LABEL 6
5UG-F151J-00-00
Unavailable
22
TOOL KIT
5ND-F8100-00-00
Unavailable
23
GAUGE, AIR
5UG-F811A-00-00
Unavailable
24
STOPPER, MAIN STAND
5UG-F7114-00-00
Unavailable
25
INSULATOR, HEAT
5UG-F2898-00-00
Unavailable
26
BOLT, FLANGE
90105-06831-00
$2.29
