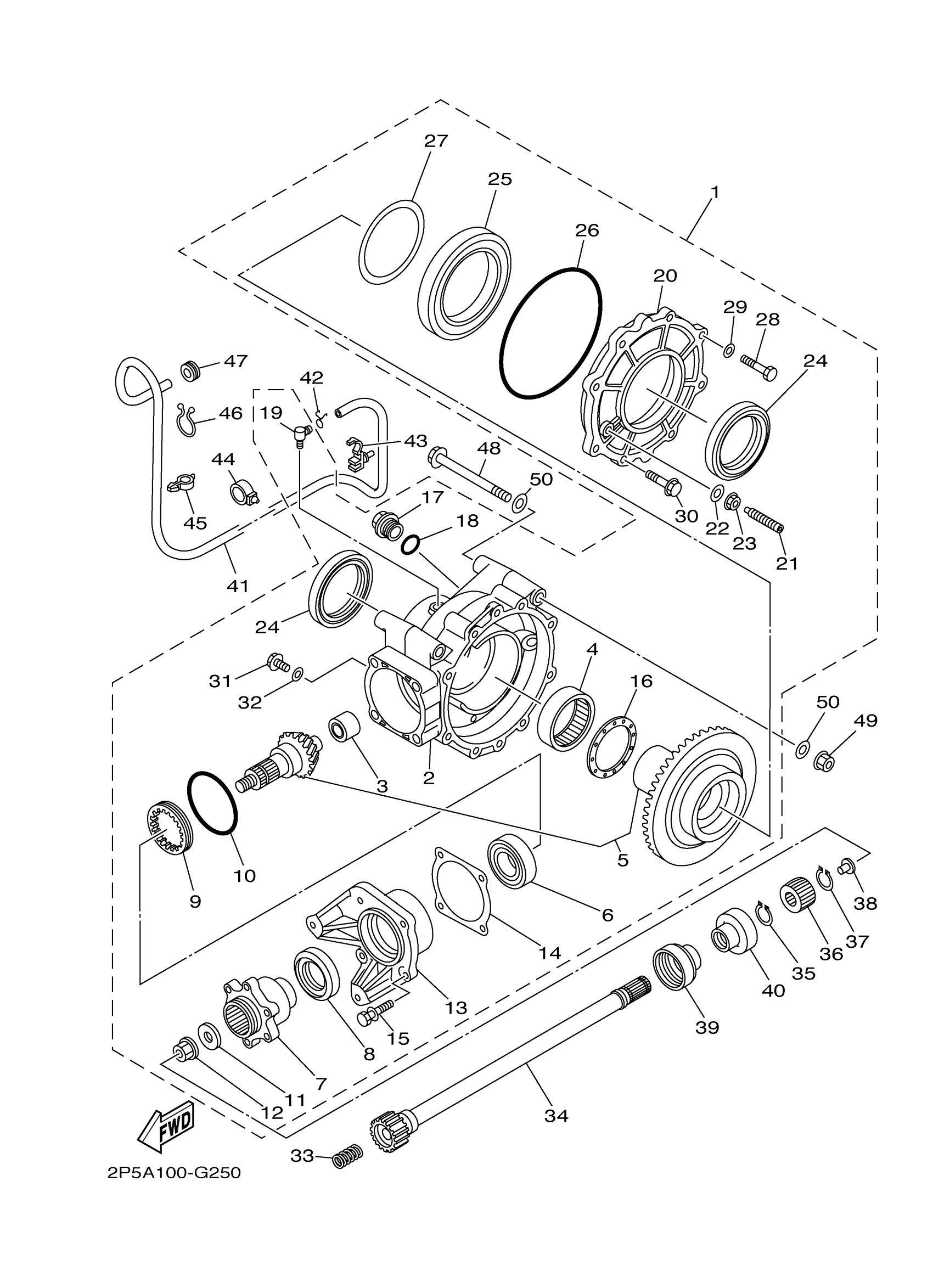

Yamaha YXR45FHX (RHINO 450 HUNTER) 2P5C 2008 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
5UG-46101-10-00
$1,718.99
2
HOUSING, DRIVE SHAFT
5UG-46151-01-00
$241.99
3
BEARING ASSY
5KM-46102-00-00
$65.99
4
BEARING, CYLINDRICAL(3HN)
93317-85569-00
$86.99
5
RING GEAR SET
5UG-Y4612-00-00
$519.99
6
BEARING
93306-30574-00
$73.99
7
BOSS, 1
5UG-46212-00-00
$203.99
8
OIL SEAL
93102-35009-00
$22.99
9
NUT(59V)
90179-65305-00
$43.99
10
O-RING
93210-626A7-00
$14.99
11
WASHER, PLATE
90201-12029-00
$7.49
12
NUT (4X7)
90179-12325-00
$5.60
13
HOUSING, PINION BEARING
5UG-46144-00-00
$139.99
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
15
. BOLT, WITH WASHER
90119-08125-00
Unavailable
16
WASHER, THRUST
24W-46118-00-12
Unavailable
16
WASHER, THRUST
24W-46118-00-14
Unavailable
16
WASHER, THRUST
24W-46118-00-16
Unavailable
16
WASHER, THRUST
24W-46118-00-18
Unavailable
16
WASHER, THRUST
24W-46118-00-20
Unavailable
17
PLUG, STRAIGHT SCREW(4GY)
90340-20143-00
Unavailable
18
O-RING (646)
93210-19123-00
Unavailable
19
BREATHER
5UG-15371-00-00
Unavailable
20
HOUSING, BEARING
5KM-46152-00-00
Unavailable
21
STOPPER, RING GEAR
2HR-46156-00-00
Unavailable
22
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
23
NUT,FLANGE(J10)
95702-08500-00
Unavailable
24
OIL SEAL
93102-65008-00
Unavailable
25
BEARING
93316-01701-00
Unavailable
26
O-RING(59V)
93211-54698-00
Unavailable
27
SHIM, RING GEAR
22U-46117-00-25
Unavailable
27
SHIM, RING GEAR
22U-46117-00-30
Unavailable
27
SHIM, RING GEAR
22U-46117-00-40
Unavailable
28
BOLT, HEXAGON
97017-08025-00
Unavailable
29
.. WASHER, PLATE
92990-08600-00
Unavailable
30
. BOLT, FLANGE
95812-10025-00
Unavailable
31
BOLT, FLANGE
95022-10016-00
Unavailable
32
GASKET (5R6)
90430-10171-00
Unavailable
33
SPRING, COMPRESSION
90501-200A0-00
Unavailable
34
SHAFT, DRIVE
5UG-G6172-00-00
Unavailable
35
CIRCLIP(1EY)
99009-19400-00
Unavailable
36
COUPLING
5KM-46126-00-00
Unavailable
37
CIRCLIP (537)
93410-22039-00
Unavailable
38
DAMPER
5KM-46559-00-00
Unavailable
39
SEAL 2
5KM-46137-00-00
Unavailable
40
SEAL 1
5KM-46136-00-00
Unavailable
41
HOSE (L1700)
90445-070G6-00
Unavailable
42
CLIP (1J7)
90467-07029-00
Unavailable
43
CLAMP
90464-12830-00
Unavailable
44
CLAMP
90464-19815-00
Unavailable
45
CLAMP
90464-12830-00
Unavailable
46
CLAMP
90464-20804-00
Unavailable
47
GROMMET(3GM)
90480-10517-00
Unavailable
48
BOLT, FLANGE
90105-10220-00
Unavailable
49
NUT, SELF-LOCKING
90185-10011-00
Unavailable
50
WASHER, PLATE
90201-10035-00
Unavailable
