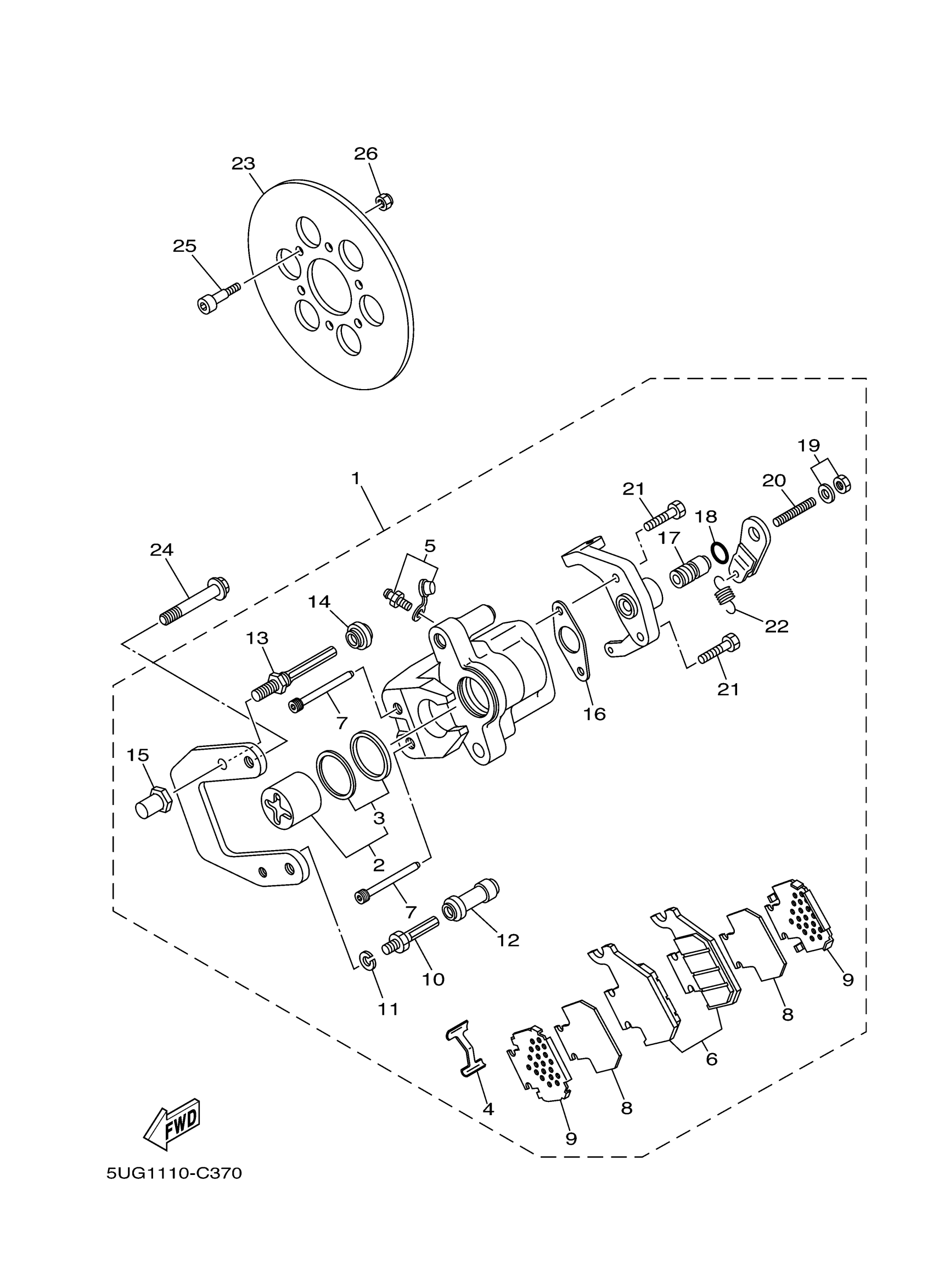

Yamaha YXR45FHW (RHINO 450 HUNTER) 2P55 2007 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR 1

5UG-2580V-02-00

Unavailable

2

PISTON ASSY, CALIPER

5UG-W0057-00-00

$66.68

3

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

4

SUPPORT, PAD

4GY-25919-50-00

Unavailable

5

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

6

BRAKE PAD KIT 2

5UG-W0046-01-00

$39.42

7

PIN, PAD

5GH-25924-00-00

Unavailable

8

SHIM, CALIPER

5UG-25827-00-00

$21.88

9

SHIM, CALIPER

5GH-25828-00-00

$13.33

10

BOLT

1UY-25926-51-00

$3.11

11

WASHER, SPRING

1UY-25938-51-00

Unavailable

12

BOOT 2

1UY-25937-51-00

$11.48

13

BOLT

3JD-25926-00-00

$5.99

14

BOOT, CALIPER

3JD-25917-00-00

$7.03

15

NUT

3JD-25961-00-00

$6.46

16

GASKET

5UG-25898-00-00

Unavailable

17

SHAFT

5UG-25978-00-00

Unavailable

18

RUBBER, BUSHING

5UG-25975-00-00

Unavailable

19

NUT

5UG-25973-00-00

Unavailable

20

. ADJUSTBOLT

5UG-25972-00-00

Unavailable

21

BOLT, FITTING

5UG-25833-00-00

Unavailable

22

SPRING, RETURN

5UG-25977-00-00

Unavailable

23

DISC, BRAKE (RIGHT

5UG-F5831-00-00

Unavailable

24

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

25

BOLT

90109-06038-00

Unavailable

26

NUT, SELF-LOCKING

95617-06100-00

Unavailable
