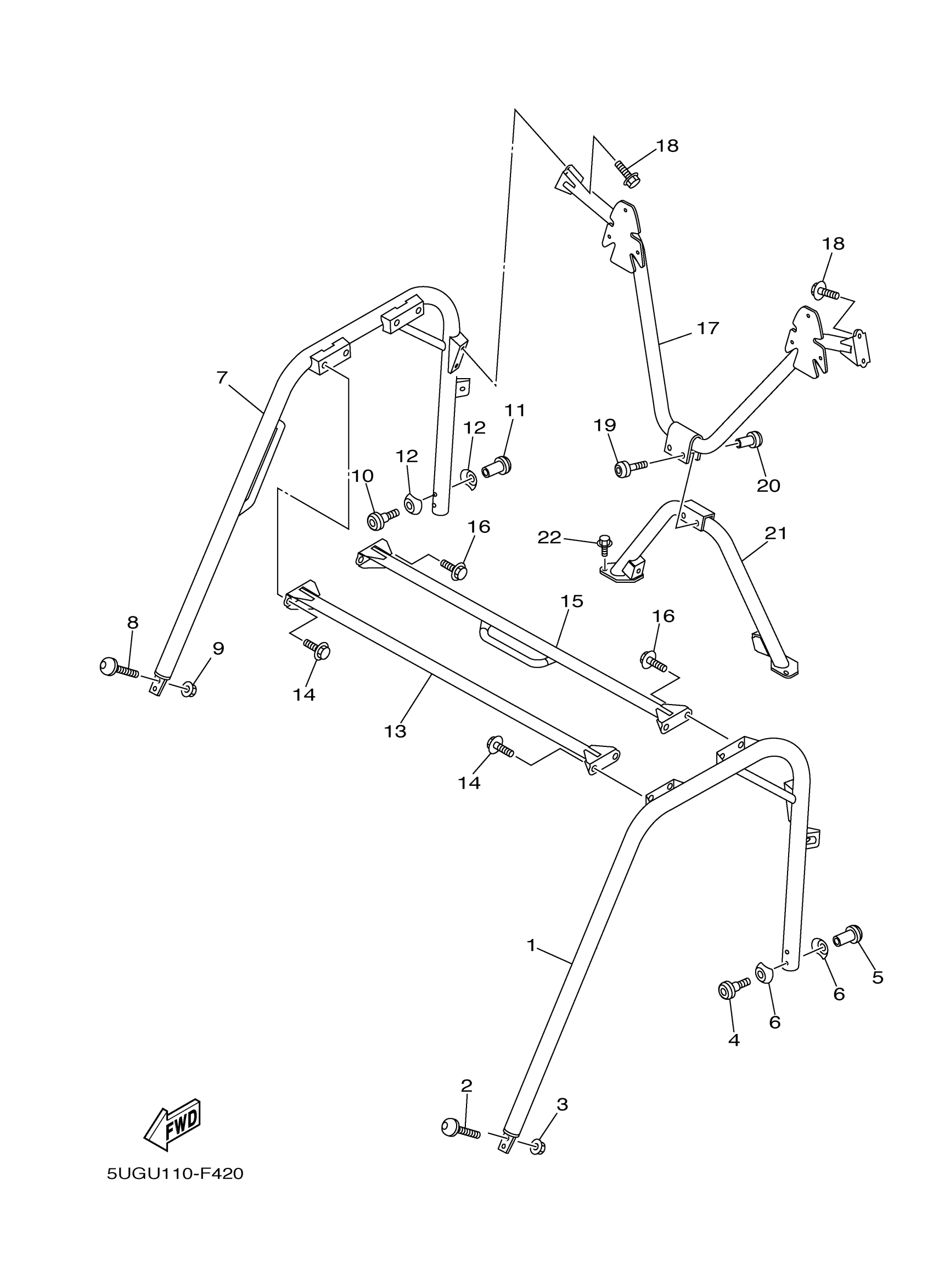

Yamaha YXR45FHW (RHINO 450 HUNTER) 2P55 2007 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
5UG-K831A-51-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
7
SUPPORT, ROOF 4
5UG-K831E-51-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
13
MEMBER, ROOF FRAME
1RB-K8392-00-00
Unavailable
15
MEMBER, CROSS ROOF
1RB-K8336-00-00
Unavailable
17
ROOF SUPPORT ASSY
1RB-K830A-00-00
Unavailable
21
ROOF SUPPORT ASSY
5UG-K830B-51-00
Unavailable
22
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
