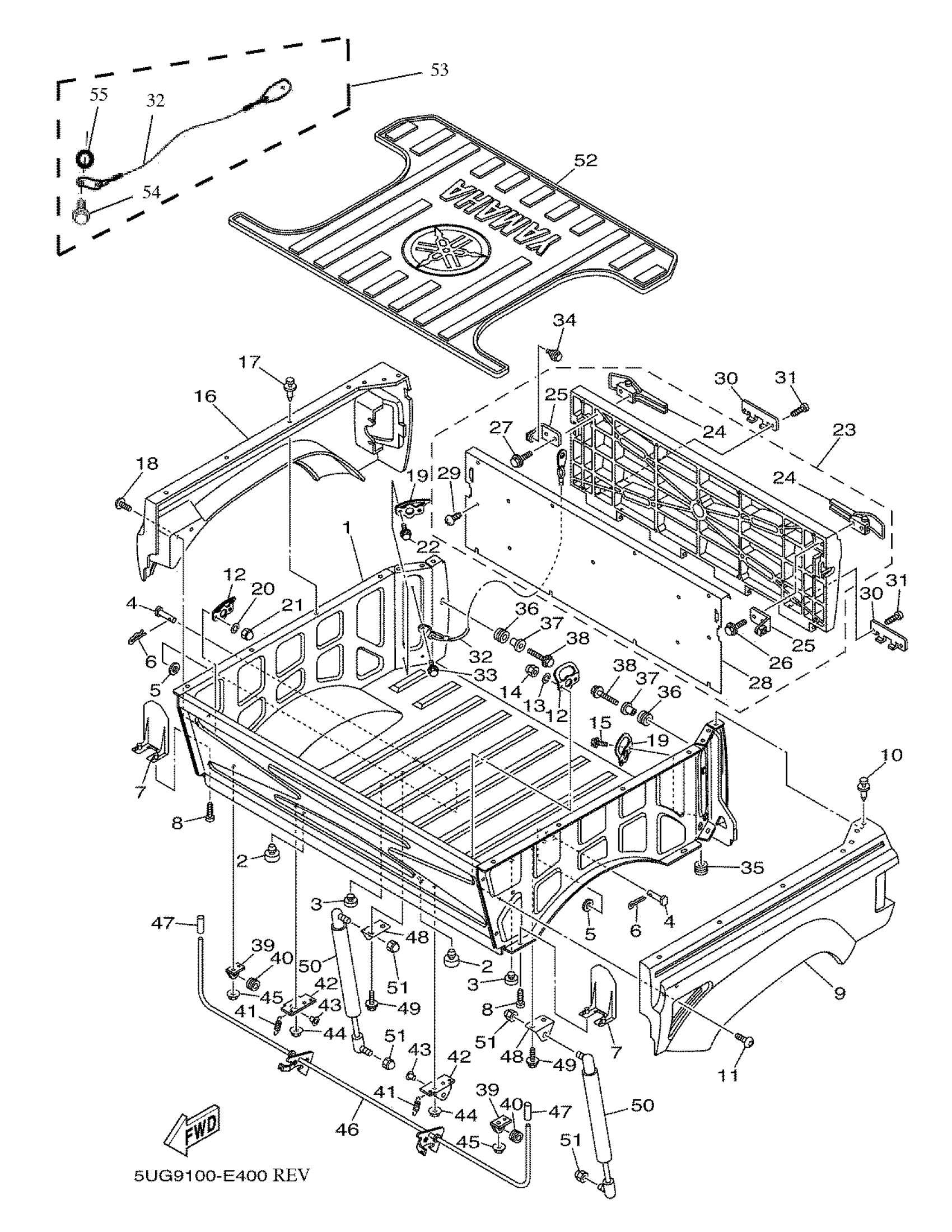

Yamaha YXR45FHW (RHINO 450 HUNTER) 2P55 2007 CARRIER Diagram
#
1
CARRIER BOX ASSY
2P5-F4850-02-00
Unavailable
2
STOPPER, MAIN STAND
116-27114-00-00
$10.99
3
STOPPER, MAIN STAND
128-27114-00-00
$7.99
4
PIN, CLEVIS
90240-12002-00
$11.49
5
WASHER, PLATE(55K)
90201-127J6-00
$8.49
6
PIN, COTTER
91401-30025-00
$8.49
7
GUARD, LEVER
2P5-F6123-00-00
Unavailable
8
SCREW, TAPPING
90167-06800-00
$1.71
9
PANEL, REAR FENDER (CAMO LEFT)
5UG-K8193-F0-00
Unavailable
10
RIVET
90269-06800-00
$2.18
11
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
$8.49
12
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
13
WASHER, SPRING
92907-06100-00
$4.25
14
NUT(4MY)
95307-06800-00
$3.82
15
BOLT, FLANGE
95817-06016-00
$2.75
16
PANEL, REAR FENDER (CAMO RIGHT
5UG-K8194-F0-00
Unavailable
17
RIVET
90269-06800-00
$2.18
18
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
$8.49
19
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
$15.49
20
WASHER, SPRING
92907-06100-00
$4.25
21
NUT(4MY)
95307-06800-00
$3.82
22
BOLT, FLANGE
95817-06016-00
$2.75
23
REAR STORAGE LID C
5UG-K810N-21-00
Unavailable
24
LATCH
5UG-F389E-00-00
Unavailable
25
BRACKET,TRUNK STOP
5UG-F849R-00-00
Unavailable
26
BOLT, FLANGE
95817-06025-00
Unavailable
27
BOLT, FLANGE
95817-06025-00
Unavailable
28
. CASE
5UG-K8365-00-00
Unavailable
29
SCREW, TAPPING(53L)
90167-05030-00
Unavailable
30
COVER, HINGE
5UG-F4669-00-00
Unavailable
31
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
32
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
$2.75
34
BOLT
90109-06183-00
Unavailable
35
GROMMET(2GH)
90480-12475-00
Unavailable
36
GROMMET (4V1)
90480-18290-00
Unavailable
37
COLLAR (36R)
90387-066J1-00
Unavailable
38
BOLT, FLANGE
95817-06025-00
Unavailable
39
HOLDER, LATCH
2P5-K7175-00-00
Unavailable
40
GROMMET(2GH)
90480-12475-00
Unavailable
41
SPRING, TENSION(3JN)
90506-16451-00
Unavailable
42
PLATE 1
2P5-K7185-00-00
Unavailable
43
BUSH, RUBBER 1
2P5-K7515-00-00
Unavailable
44
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
45
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
46
LATCH ASSY
2P5-K7180-00-00
Unavailable
47
CAP, PROTECTOR END 4
5UG-K818M-00-00
Unavailable
48
BRACKET, DAMPER
5UG-F1798-10-00
Unavailable
49
BOLT, FLANGE
90105-06831-00
Unavailable
50
DAMPER 1
5UG-F8415-00-00
Unavailable
51
NUT, SELF-LOCKING
90185-08169-00
Unavailable
52
MAT
5UG-F483J-00-00
Unavailable
53
HOLDER, CABLE KIT
5UG-K7195-10-KT
Unavailable
54
BOLT
90109-06183-00
Unavailable
55
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
