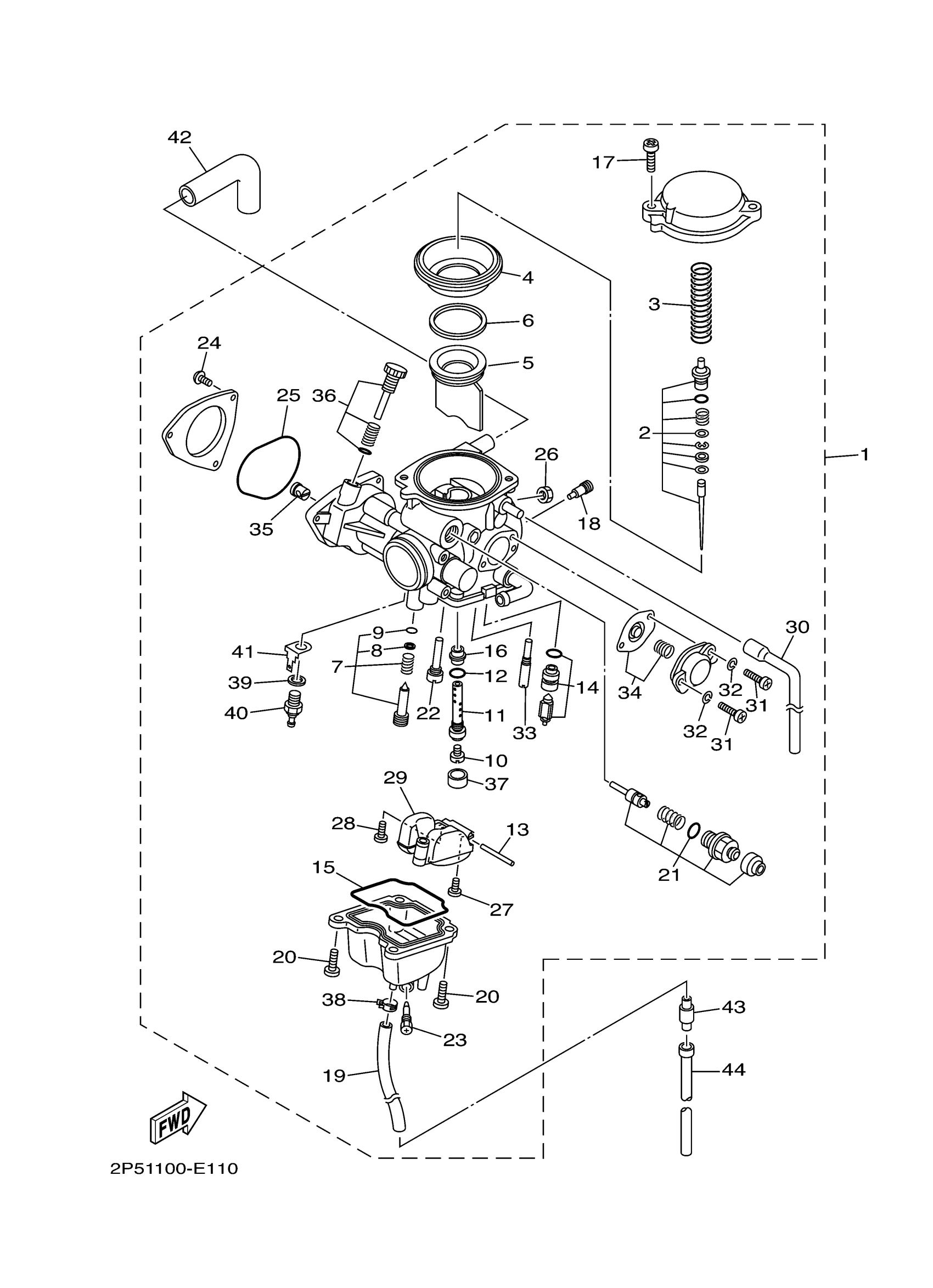

Yamaha YXR45FHW (RHINO 450 HUNTER) 2P55 2007 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
2P5-E4901-01-00
Unavailable
2
NEEDLE SET
2P5-1490J-00-00
$42.99
3
SPRING, DIAPHRAGM
4KM-14933-00-00
$20.99
4
DIAPHRAGM ASSY
5GH-14940-10-00
$63.99
5
VALVE, THROTTLE 1
5DM-14112-00-00
$87.99
6
RING
5GH-14918-10-00
$6.99
7
PILOT SCREW SET
2P5-14105-00-00
$19.49
8
WASHER, PILOT SCREW
3H1-14962-00-00
$7.99
9
O-RING, PILOT SCREW
3H1-14147-00-00
$8.99
10
JET, MAIN(#133.8)
3G2-1423E-53-00
$13.49
11
HOLDER
5GH-14261-00-00
Unavailable
12
O-RING
583-14561-00-00
$5.49
13
PIN, FLOAT
127-14186-00-00
$6.65
14
NEEDLE VALVE SET
5UH-14107-10-00
$55.99
15
O-RING
5DM-14561-00-00
$17.49
16
NOZZLE, MAIN
5DM-1414M-40-00
Unavailable
17
SCREW
4KM-14216-00-00
Unavailable
18
JET, MAIN (# 80)
1HX-14231-16-00
Unavailable
19
PIPE
4KB-14193-20-00
Unavailable
20
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
21
STARTER SET
2P5-1410A-00-00
Unavailable
22
JET,MAIN #57.5
3G2-1423A-62-A0
Unavailable
23
PLUG, DRAIN
3FV-14191-00-00
Unavailable
24
SCREW, PAN HEAD
9850L-04006-00
Unavailable
25
O-RING
5FU-E4147-00-00
Unavailable
26
NUT, CABLE ADJUSTING
522-14161-00-00
Unavailable
27
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
28
SCREW
1FN-14565-00-00
Unavailable
29
FLOAT
5DM-14985-00-00
Unavailable
30
PIPE
5GH-14197-00-00
Unavailable
31
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
32
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
33
JET, PILOT (# 20)
4KM-14142-20-00
Unavailable
34
DIAPHRAGM SET 5
5EL-1490H-00-00
Unavailable
35
GUIDE, CABLE
5FU-E4155-00-00
Unavailable
36
. THROTTLE SCREW SET
5UG-14103-10-00
Unavailable
37
RING
5GH-14918-00-00
Unavailable
38
CLIP
4XE-14937-00-00
Unavailable
39
WASHER
5CY-14951-00-00
Unavailable
40
HEATER ASSY
5FU-83790-20-00
Unavailable
41
TERMINAL 1
5FU-82103-00-00
Unavailable
42
PIPE
2P5-E4349-00-00
Unavailable
43
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
44
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
