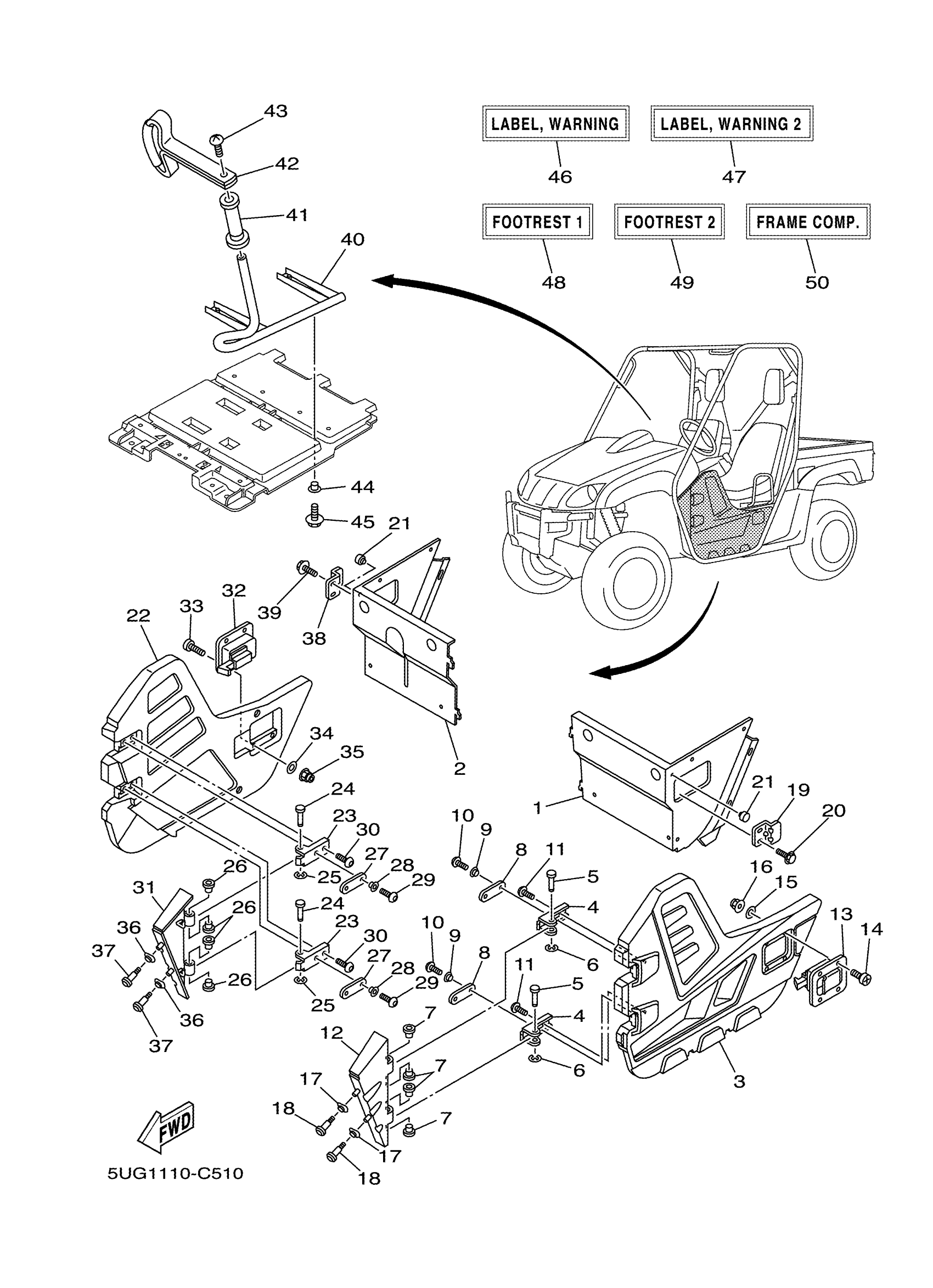

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 WITH DOORS Diagram

#

Description
Price

1

SUPPORT, SIDE PANEL

5UG-F254J-11-00

Unavailable

2

SUPPORT, SIDE PANEL 2

5UG-F254K-11-00

Unavailable

3

COVER, SIDE 1

5B4-F2864-00-00

Unavailable

4

HINGE

5B4-F1797-00-00

$4.15

5

PIN 1

5B4-F146A-00-00

$7.01

6

CLIP

5B4-F3447-00-00

$1.49

7

BUSH, RUBBER 1

2P5-K7515-00-00

$1.49

8

BAND, RUBBER

5B4-F2929-01-00

$3.33

9

COLLAR

90387-06089-00

$5.78

10

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.73

11

BOLT 2

5B4-F1722-00-00

$1.49

12

HINGE 1

5B4-F197J-00-00

Unavailable

13

HANDLE, LATCH

5B4-F389F-00-00

Unavailable

14

SCREW, BINDING

98907-05020-00

$5.88

15

WASHER, PLATE

90201-05039-00

$5.35

16

NUT, S/L FLANGE

95607-05200-00

Unavailable

17

WASHER 2

5UG-K7526-00-00

Unavailable

18

BOLT

5B4-K7519-00-00

Unavailable

19

LATCH

5B4-F389E-00-00

Unavailable

20

BOLT

5B4-F1738-00-00

$8.30

21

PAD, BATTERY

5TG-82121-10-00

Unavailable

22

COVER, SIDE 2

5B4-F2868-00-00

Unavailable

23

HINGE

5B4-F1797-00-00

$4.15

24

PIN 1

5B4-F146A-00-00

$7.01

25

CLIP

5B4-F3447-00-00

$1.49

26

BUSH, RUBBER 1

2P5-K7515-00-00

$1.49

27

BAND, RUBBER

5B4-F2929-01-00

$3.33

28

COLLAR

90387-06089-00

$5.78

29

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.73

30

BOLT 2

5B4-F1722-00-00

$1.49

31

HINGE 2

5B4-F197K-00-00

$44.33

32

HANDLE, LATCH

5B4-F389F-00-00

Unavailable

33

SCREW, BINDING

98907-05020-00

$5.88

34

WASHER, PLATE

90201-05039-00

$5.35

35

NUT, S/L FLANGE

95607-05200-00

Unavailable

36

WASHER 2

5UG-K7526-00-00

Unavailable

37

BOLT

5B4-K7519-00-00

Unavailable

38

LATCH

5B4-F389E-00-00

Unavailable

39

BOLT

5B4-F1738-00-00

$8.30

40

ASSIST, GRIP

5B4-F474A-00-00

Unavailable

41

GRIP

5B4-F6241-00-00

Unavailable

42

HANDLE, SEAT

5B4-F4773-00-00

Unavailable

43

SCREW, BINDING

98907-06020-00

Unavailable

44

COLLAR

90387-06210-00

Unavailable

45

BOLT, FLANGE

90105-06831-00

Unavailable

46

LABEL, WARNING

5B4-F1568-01-00

Unavailable

47

LABEL, WARNING 2

5B4-F1558-00-00

Unavailable

48

FOOTREST 1

5UG-F7411-12-00

Unavailable

49

FOOTREST 2

5UG-F7421-12-00

Unavailable

50

FRAME COMP.

2P5-F1110-00-00

Unavailable
