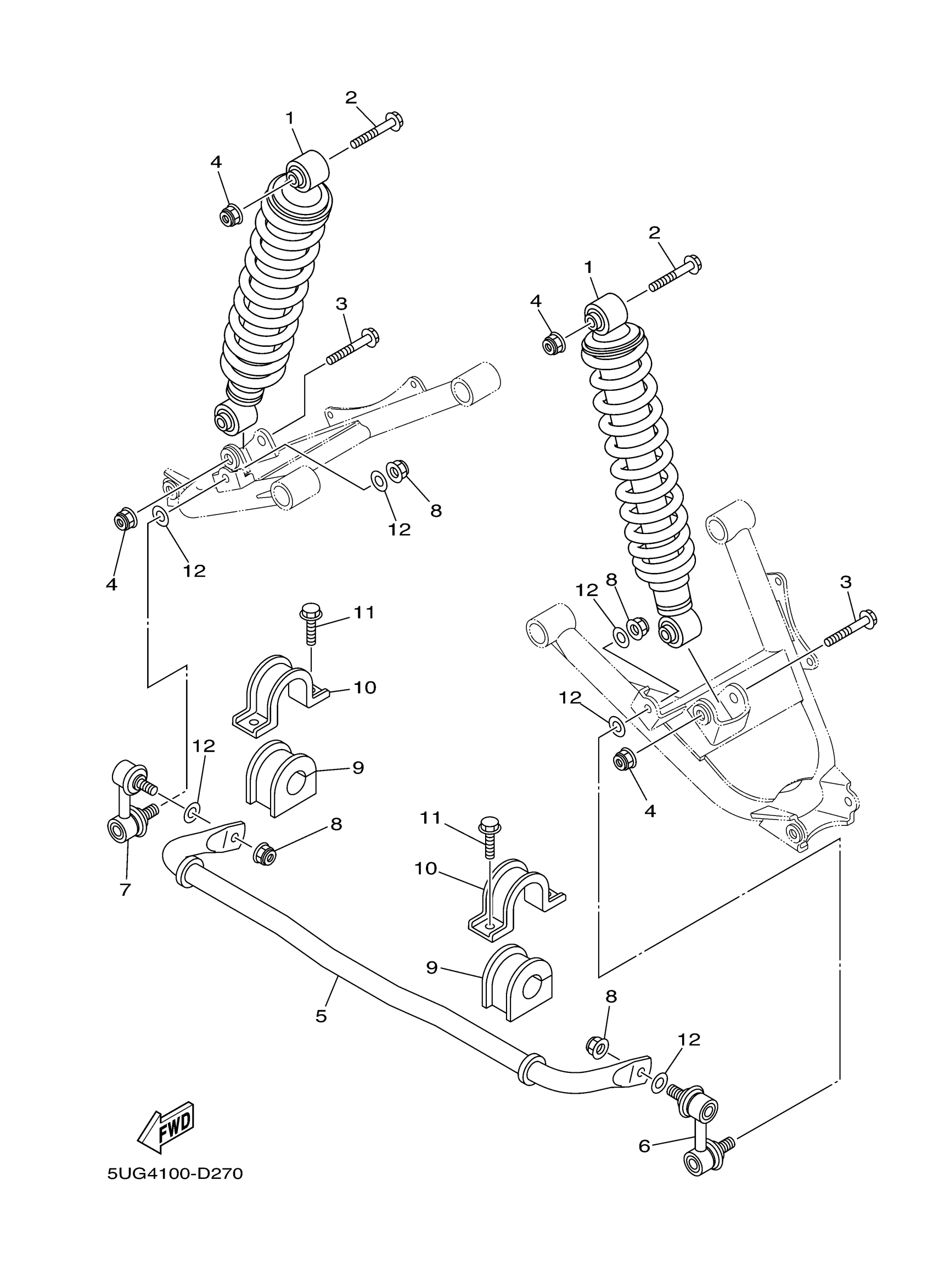

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5UG-F2210-10-00

Unavailable

2

BOLT, FLANGE

90105-12037-00

Unavailable

3

BOLT, FLANGE

90105-12036-00

$12.27

4

NUT, SELF LOCKING (1M1)

90185-12072-00

$8.31

5

BAR, STABILIZER

5UG-G7491-00-00

Unavailable

6

JOINT, STABILIZER 1

16B-2385L-10-00

Unavailable

7

JOINT, STABILIZER 2

16B-2385M-10-00

Unavailable

8

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

9

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

10

COVER, STABILIZER FRONT

5UG-F386H-00-00

Unavailable

11

BOLT, FLANGE

95817-08014-00

$1.94

12

WASHER, PLATE(47X)

90201-101J1-00

$6.17
