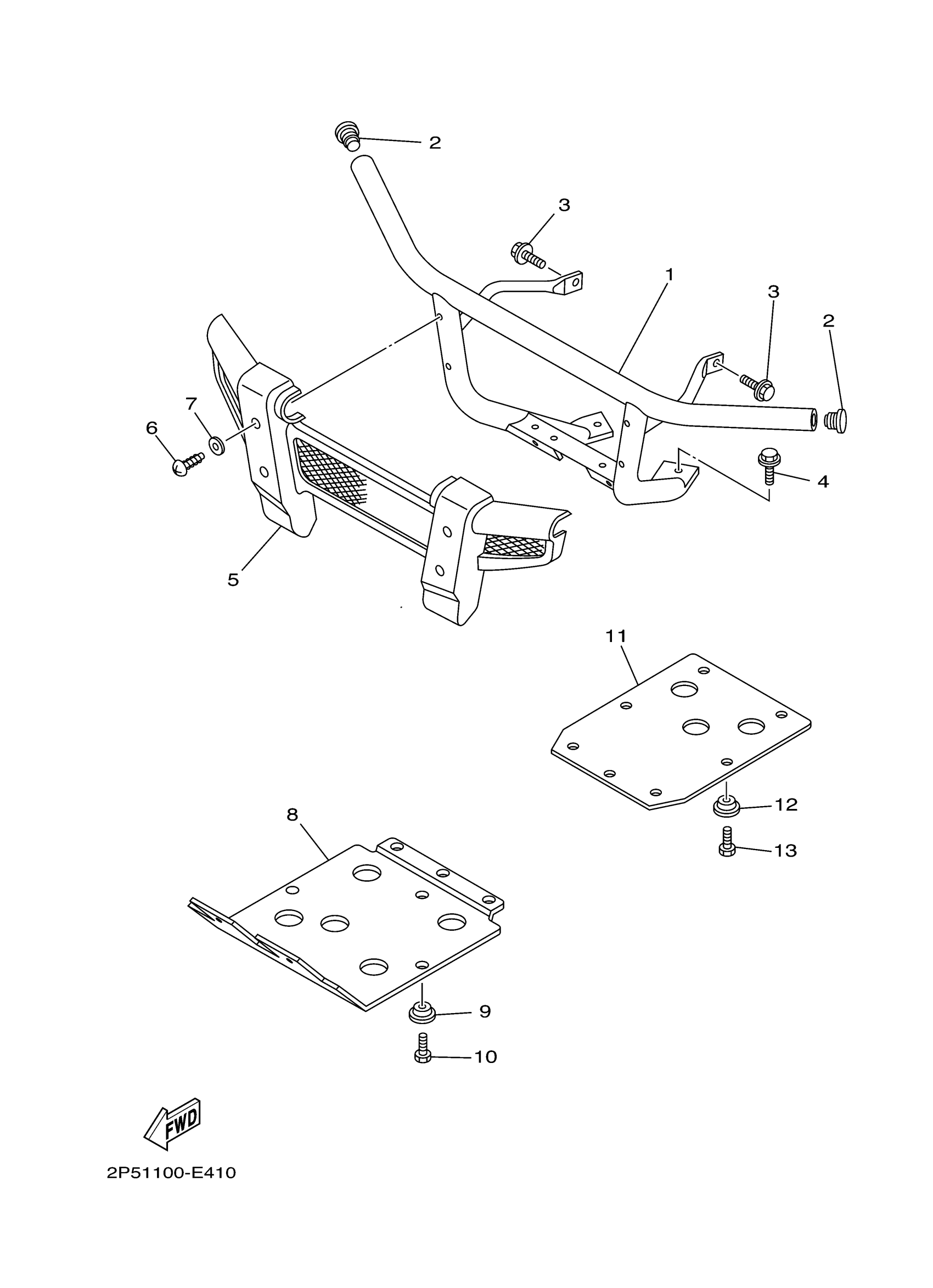

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT, WRINKLE BLK

1RB-F845N-00-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$5.06

3

BOLT, FLANGE

95817-10020-00

$6.08

4

BOLT, FLANGE

9581P-12025-00

Unavailable

5

COVER 5

5UG-F842A-00-00

$47.96

6

BOLT, FLANGE

95817-06016-00

$1.49

7

WASHER, PLATE

90201-06055-00

$2.75

8

COVER,LOWER

2P5-F8385-01-00

$80.99

9

SPACER

5UG-F8329-01-00

$5.53

10

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49

11

COVER,UNDER 2

5UG-F8395-01-00

$83.99

12

SPACER

5UG-F8329-01-00

$5.53

13

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49
