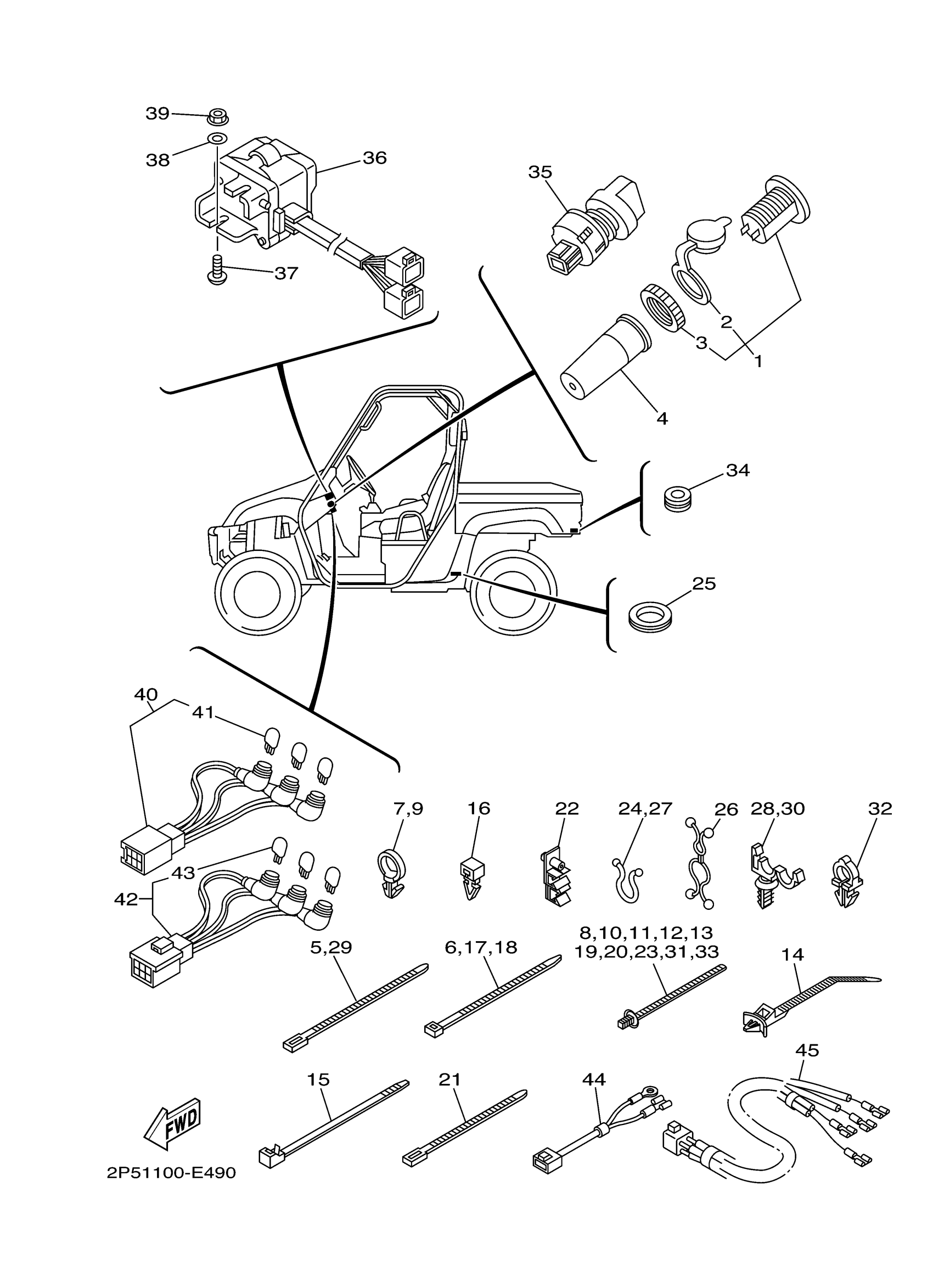

Yamaha YXR45FAVGR (RHINO 450 4WD) 2P51 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL ASSY

5FU-H1920-10-00

$41.86

2

COVER

5FU-H1942-10-00

$8.88

3

NUT

5FU-H191B-10-00

$1.49

4

COVER,CONNECTER

5FU-H2599-01-00

$5.11

5

CLAMP(JN6)

90464-40825-00

$1.67

6

CLAMP

90464-48800-00

Unavailable

7

CLAMP

90464-19815-00

$1.57

8

CLAMP

90464-20005-00

$2.04

9

CLAMP

90464-19815-00

$1.57

10

CLAMP

90464-20005-00

$2.04

11

CLAMP

90464-20005-00

$2.04

12

CLAMP

90464-20005-00

$2.04

13

CLAMP

90464-20005-00

$2.04

14

CLAMP

90464-38800-00

$4.21

15

CLAMP

90464-51800-00

$11.31

16

HOLDER

5UG-F2465-00-00

Unavailable

17

CLAMP

90464-48800-00

Unavailable

18

CLAMP

90464-48800-00

Unavailable

19

CLAMP

90464-20005-00

$2.04

20

CLAMP

90464-20005-00

$2.04

21

CLAMP(JN6)

90464-31827-00

Unavailable

22

CLAMP

5UG-F481H-00-00

Unavailable

23

CLAMP

90464-20005-00

$2.04

24

CLAMP

90464-20804-00

$2.18

25

GROMMET

90480-25856-00

Unavailable

26

CLAMP(3XV)

90464-29179-00

Unavailable

27

CLAMP

90464-20804-00

$2.18

28

CLAMP

90464-12830-00

Unavailable

29

CLAMP(JN6)

90464-40825-00

$1.67

30

CLAMP

90464-12830-00

Unavailable

31

CLAMP

90464-20005-00

$2.04

32

CLAMP

90464-12830-00

Unavailable

33

CLAMP

90464-20005-00

$2.04

34

GROMMET(2GH)

90480-12475-00

Unavailable

35

SWITCH, LAMP

5UG-H2526-00-00

Unavailable

36

Switch, Handle 1

5UG-83976-12-00

Unavailable

37

SCREW(3YF)

90149-05299-00

Unavailable

38

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

39

NUT, NYLON

95707-05300-00

Unavailable

40

PILOT LIGHT ASSY

5UG-83530-10-00

Unavailable

41

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

42

PILOT LIGHT ASSY

5UG-83530-01-00

Unavailable

43

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

44

WIRE, SUB LEAD

5KM-82509-10-00

Unavailable

45

WIRE, LEAD

5ND-82541-01-00

Unavailable
