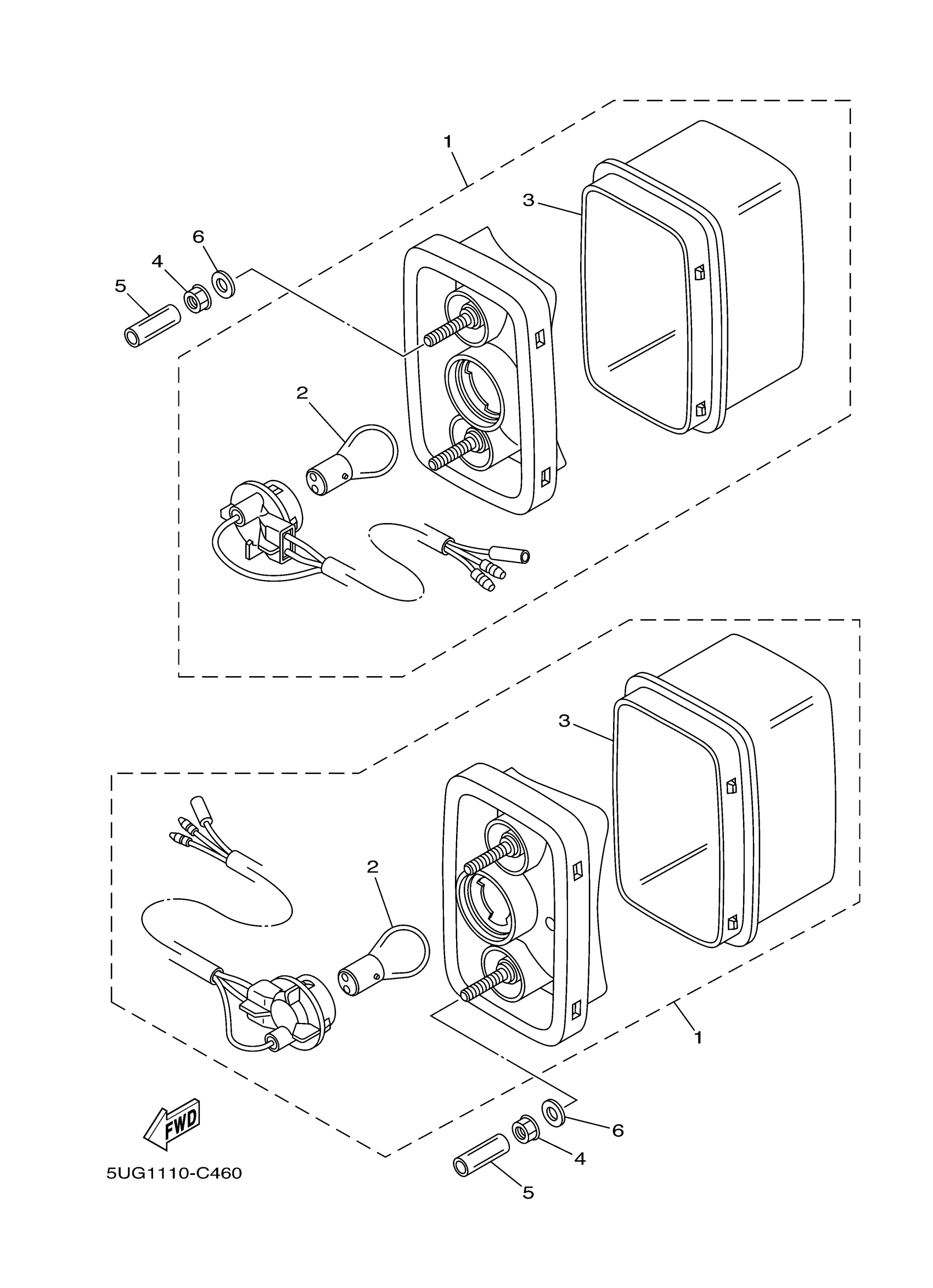

Yamaha YXR45FAHV (RHINO 450 REALTREE HD CAMO) 2P57 2006 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

5KM-84710-01-00

$49.49

2

BULB

1A2-84714-50-00

$11.98

3

TAILLIGHT UNIT ASSY

5KM-84710-01-00

$49.49

4

NUT, NYLON

95707-06300-00

$3.05

5

PIPE 5

5RB-24315-00-00

$5.73

6

WASHER PLATE 248217570000

90201-06074-00

$5.98
