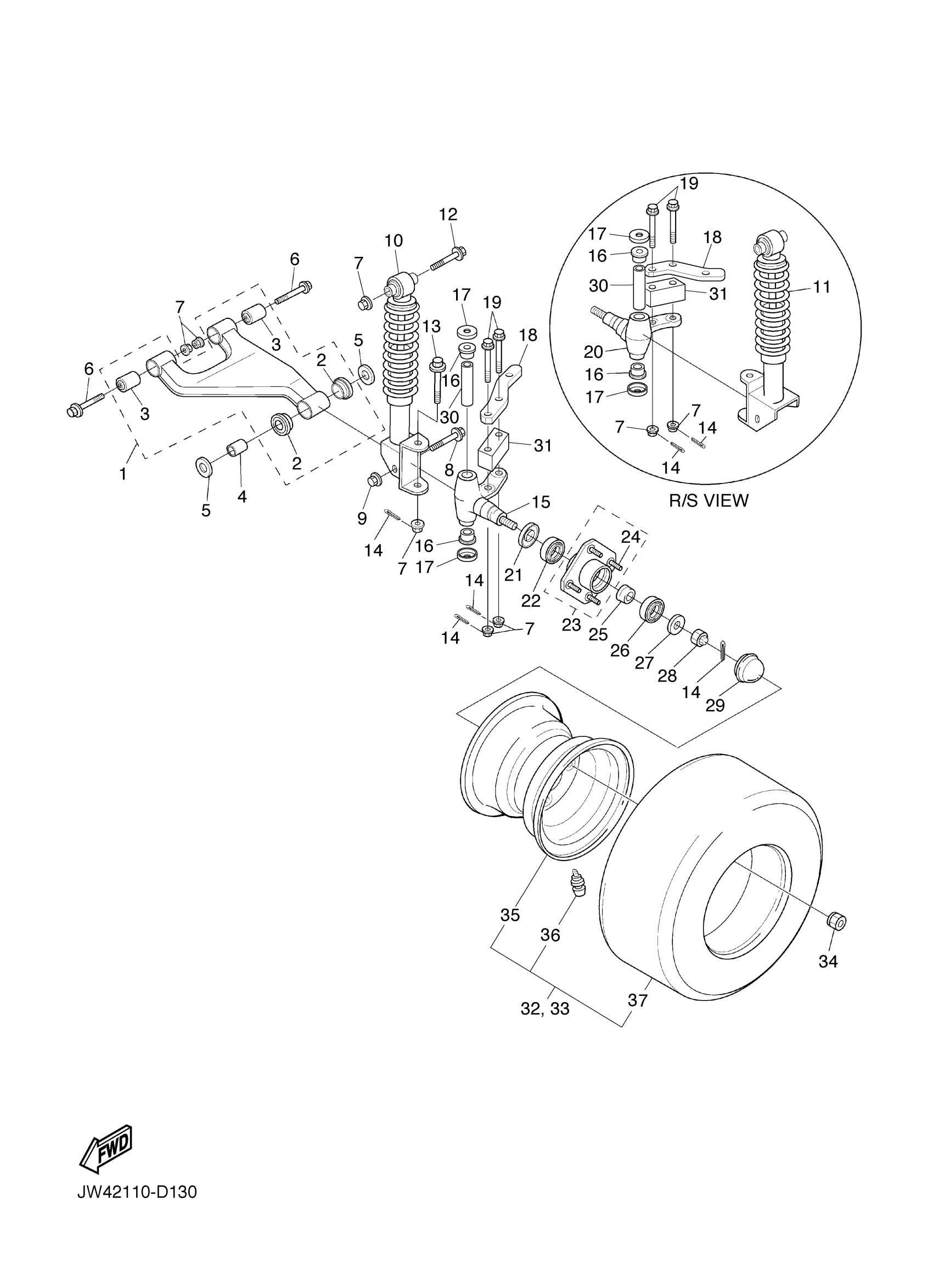

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP.

JU0-F3570-20-00

$102.89

2

. BUSH, SOLID

90381-18001-00

$9.49

3

BUSH

2HR-23526-00-00

$17.39

4

COLLAR

90387-12016-00

$7.56

5

COVER, THRUST 1

401-22128-01-00

$24.30

6

BOLT, FLANGE

90105-10267-00

$7.38

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.17

8

BOLT, FLANGE

95817-12080-00

$5.30

9

NUT, U

95612-12100-00

$3.90

10

SHOCK ABSORBER ASSY

JU7-F3350-00-00

Unavailable

11

SHOCK ABSORBER ASSY 2

JU7-F3390-00-00

Unavailable

12

BOLT,FLANGE

95817-10065-00

$4.65

13

BOLT, FLANGE

90105-10064-00

$6.04

14

PIN, COTTER

91490-25020-00

$2.89

15

KNUCKLE, STEERING 1

JU0-F3511-01-00

$56.05

16

BUSH, SOLID(2NL)

90381-17067-00

Unavailable

17

COVER, THRUST 1

3JN-23517-00-00

Unavailable

18

ARM,KNUCKLE 1

JU7-F3512-01-00

Unavailable

19

BOLT, WASHER BASED(JN9)

90105-10774-00

Unavailable

20

KNUCKLE, STEERING 2

JU0-F3521-01-00

$58.65

21

OIL SEAL (30X47X7-810)

93102-30083-00

Unavailable

22

BEARING (J17)

93306-20437-00

$21.72

23

HUB BEARING UNIT ASSY

J0B-F5103-00-00

Unavailable

24

BOLT, SERRATION

90114-12806-00

$1.75

25

COLLAR(J41)

90387-241M7-00

Unavailable

26

BEARING

93306-00511-00

$26.41

27

WASHER, CONICAL SPRING

90208-14801-00

$1.83

28

NUT, U(4JT)

95617-14100-00

Unavailable

29

COVER, HUB DUST

JN6-F5118-01-00

$3.79

30

SPACER

2NL-23448-00-00

Unavailable

31

SPACER

JU7-F3118-00-00

Unavailable

32

WHEEL ASSY (20X10-8/4/244)

JW4-F5100-00-00

Unavailable

33

WHEEL ASSY., 2 (20X10-8/4/244)

JW4-F5109-00-00

Unavailable

34

NUT (J10)

90179-12262-00

Unavailable

35

RIM, WHEEL (LOW GLOSS BLACK)

JW4-F5180-10-00

Unavailable

36

VALVE STEM

93900-00815-00

Unavailable

37

TIRE

94110-08801-00

$114.99
