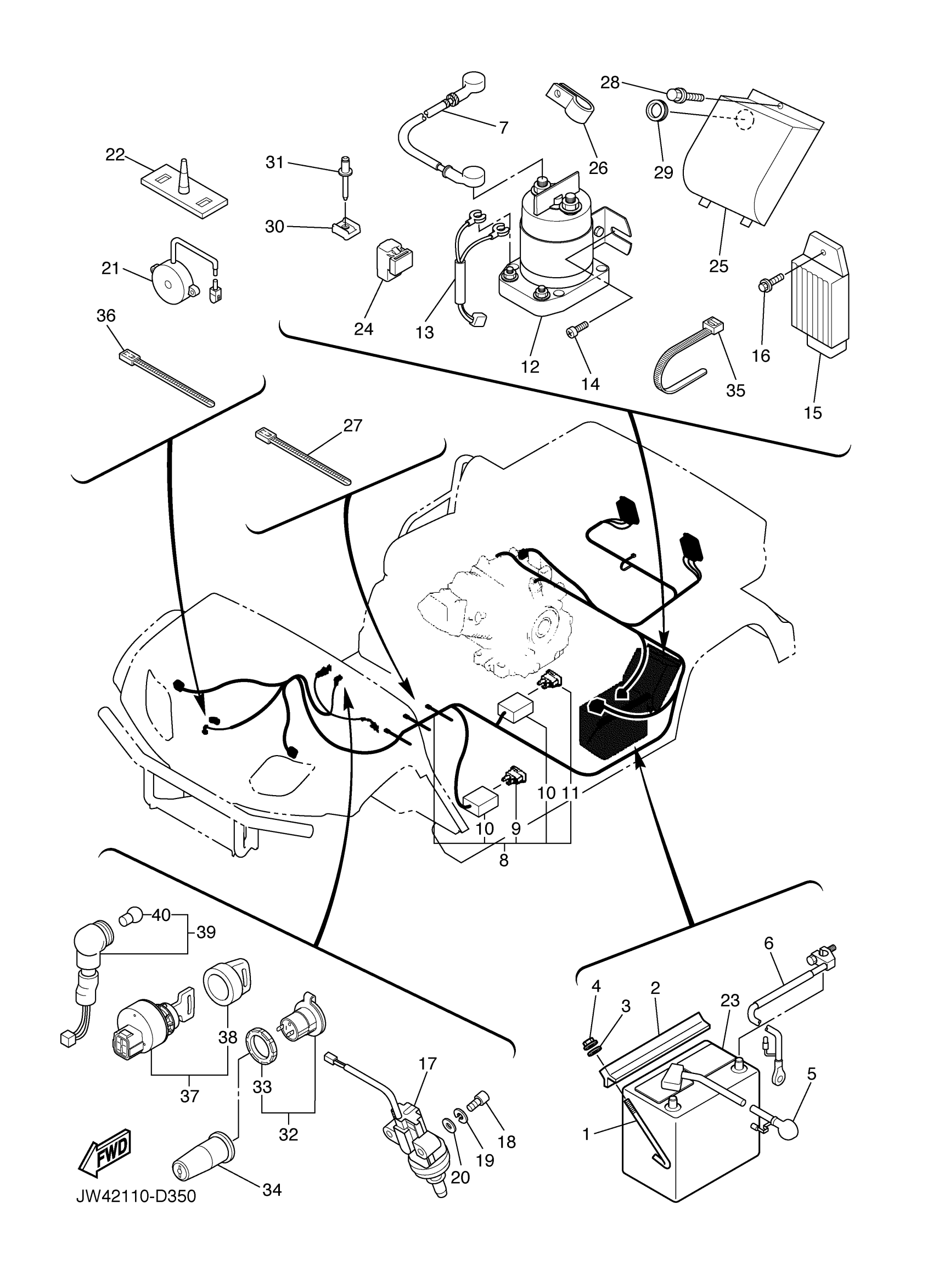

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

SCREW, FITTING

JN3-H2133-00-00

$5.98

2

PLATE, BATTERY FITTING (YPDI)

J55-H2136-00-00

$7.93

3

WASHER(6TA)

92907-06200-00

$5.88

4

NUT, FLANGE(4MV)

95707-06500-00

$1.49

5

WIRE, PLUS LEAD

JU7-H2115-00-00

Unavailable

6

WIRE, MINUS LEAD

JN6-H2116-01-00

Unavailable

7

WIRE, LEAD

JU7-H2117-00-00

Unavailable

8

WIRE HARNESS ASSY

JW4-H2590-02-00

Unavailable

9

. FUSE (10A)

JN6-H2151-00-00

Unavailable

10

. FUSE HOLDER ASSY

JR1-H2150-00-00

$11.35

11

. FUSE (20 A)

JU7-H2151-00-00

Unavailable

12

RELAY ASSY

JW1-H1950-00-00

$63.05

13

WIRE HARNESS

JN6-H2105-00-00

Unavailable

14

SCREW, TAPPING

90163-06005-00

$1.49

15

VOLTAGE REGULATOR

JF2-81910-12-00

Unavailable

16

BOLT, FLANGE

90105-06870-00

$1.49

17

SWITCH

JF7-82817-22-00

$106.23

18

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable

19

WASHER(3SX)

92907-05100-00

Unavailable

20

WASHER(1RW)

92907-05600-00

Unavailable

21

BUZZER

JR1-H3383-02-00

$14.65

22

STAY, BUZZER

JN6-H3386-01-00

$2.41

23

BATTERY ASSY (GC-24, 12V)

JG5-H2110-01-00

Unavailable

24

RELAY ASSY

4U8-81950-03-00

Unavailable

25

COVER

JN6-H1942-00-00

Unavailable

26

CLAMP

90461-16802-00

Unavailable

27

CLAMP(JN6)

90464-40825-00

Unavailable

28

BOLT, FLANGE

90105-06870-00

$1.49

29

GROMMET

90480-25856-00

Unavailable

30

WASHER, FINISH

90207-05800-00

Unavailable

31

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

32

TERMINAL ASSY

5FU-H1920-10-00

Unavailable

33

NUT

5FU-H191B-10-00

Unavailable

34

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

35

CLAMP

90464-14806-00

Unavailable

36

CLAMP(JN6)

90464-31827-00

Unavailable

37

MAIN SWITCH 3-WAY(MULTI KEY)

JU6-H2510-01-00

Unavailable

38

CAP, KEY

5UG-H2579-00-00

Unavailable

39

PILOT LIGHT ASSY

JN6-83530-00-00

$23.99

40

BULB (12V-3.4W)

123-83516-21-00

Unavailable
