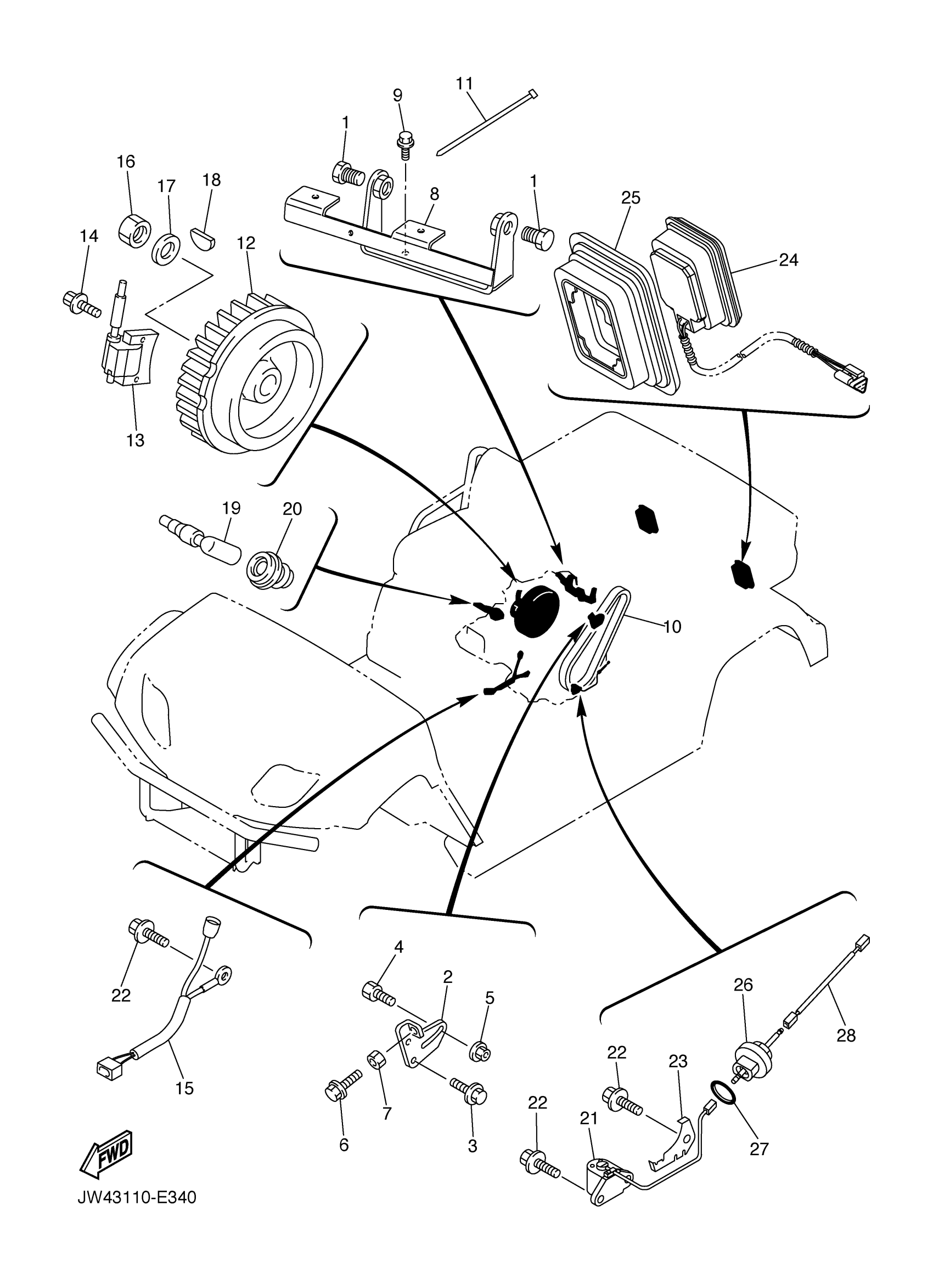

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, FLANGE

9581P-12025-00

Unavailable

2

TENSIONER ASSY

JN6-H1170-01-00

Unavailable

3

BOLT, FLANGE

9582P-08020-00

Unavailable

4

BOLT

90109-08827-00

$1.49

5

NUT, FLANGE(JN5)

95707-08500-00

$1.49

6

BOLT (3Y2)

90101-06478-00

$2.72

7

NUT(6TA)

95317-06600-00

$2.57

8

BRKT,STARTER GEN

JN6-H1171-11-00

$15.14

9

BOLT, FLANGE

9582P-08020-00

Unavailable

10

BELT

JN6-H1173-09-00

$8.69

11

CLAMP(JN6)

90464-09823-00

$4.71

12

ROTOR ASSY

JR7-85650-00-00

$287.97

13

T.C.I. UNIT ASSY

J0A-85640-00-00

$149.93

14

BOLT, FLANGE

95817-06025-00

Unavailable

15

WIRE, SUB-LEAD

JN6-82318-00-00

$17.08

16

NUT,HEXAGON

95317-18600-00

Unavailable

17

WASHER, PLATE (1J7)

90201-18620-00

Unavailable

18

KEY,WOODRUFF

90280-04052-00

Unavailable

19

PLUG CAP ASSY

JN6-82370-00-00

Unavailable

20

SEAL, PLUG CAP

7CP-H2372-00-00

Unavailable

21

OIL LEVEL GAUGE ASSY

JT0-85720-01-00

$53.90

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

CLAMP

JT0-85724-00-00

$2.58

24

TAILLIGHT ASSY

JU5-H4700-10-00

Unavailable

25

GROMMET

JU5-H4718-00-00

$9.83

26

PLUG, OIL LEVEL

JT0-15362-00-00

$8.53

27

O-RING (22U)

93210-15566-00

Unavailable

28

WIRE, LEAD

JT0-8231Y-00-00

$8.32
