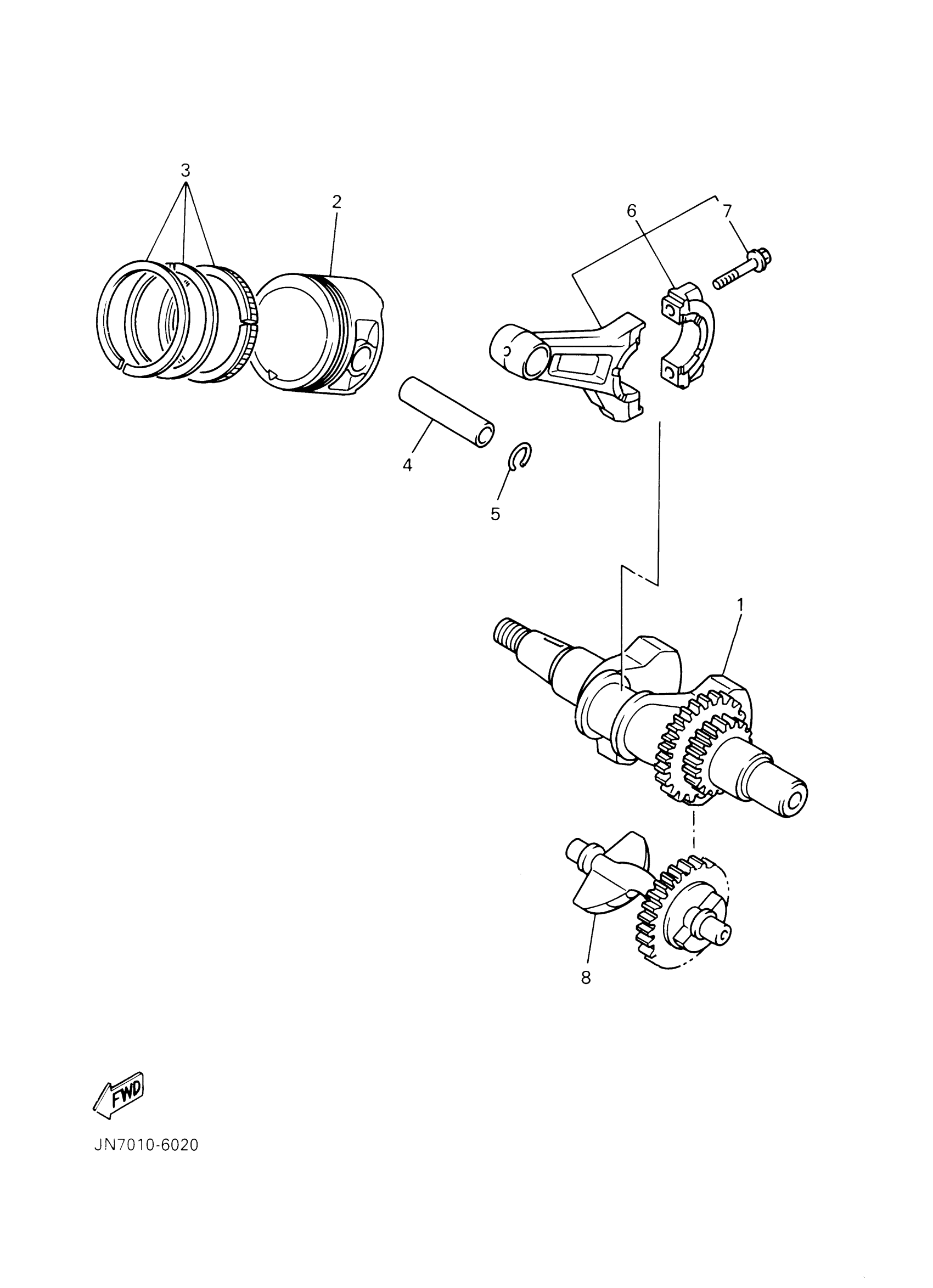

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

JN6-11400-00-00

$328.99

PISTON (STD)

JR7-11631-00-A0

$77.99

PISTON (0.25MM O/S)

JR7-11635-00-00

$78.99

PISTON (0.50MM O/S)

JR7-11636-00-00

$78.99

PISTON RING SET (STD)

JR7-11610-00-00

$49.99

PISTON RING SET (0.25MM O/S)

JR7-11610-10-00

$49.99

PISTON RING SET (0.50MM O/S)

JR7-11610-20-00

$49.99

PIN, PISTON

583-11633-00-00

Unavailable

CIRCLIP (8H0)

93450-21053-00

$3.30

CONNECTING ROD ASSY

7CT-E1650-00-00

Unavailable

BOLT, CONNECTING ROD

7CT-E1654-00-00

$3.04

WEIGHT 1

7CT-E1454-00-00

$131.91
