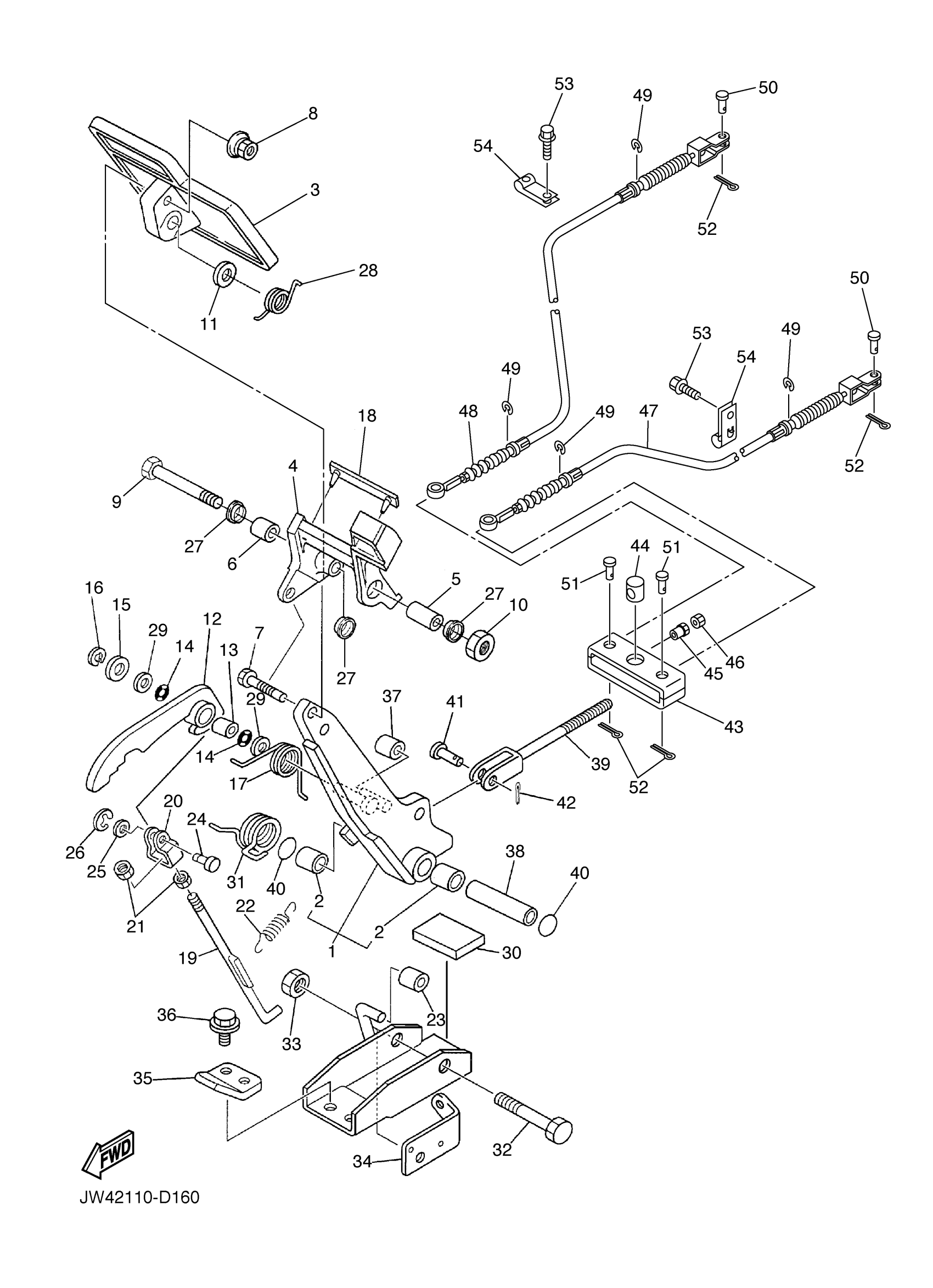

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 BRAKE Diagram

#

Description
Price

1

BRAKE ARM COMP.

J46-27250-03-00

$123.99

2

BUSH, BIMETAL FORMED (J10)

90384-14080-00

$4.89

3

PEDAL, BRAKE

JU0-27211-01-00

$53.02

4

PEDAL, PARKING BRAKE

JU0-25671-00-00

$39.44

5

COLLAR

90387-08014-00

$4.62

6

COLLAR

90387-08013-00

$4.77

7

BOLT(21W)

97017-06035-00

$2.75

8

NUT(J17)

90179-07564-00

Unavailable

9

BOLT, HEXAGON

97027-08100-00

$4.48

10

NUT(6TA)

95337-08600-00

$5.87

11

WASHER(6TC)

92907-08200-00

$5.88

12

SECTOR, PARKING BRAKE

J17-W2561-02-00

$67.99

13

BUSH, BIMETAL FORMED (J17)

90384-10162-00

$14.35

14

SEAL, SHAFT

J17-27221-00-00

$3.33

15

WASHER(6TA)

92907-10600-00

$5.88

16

CIRCLIP

99080-07600-00

$2.89

17

SPRING, TORSION (J17)

90508-14548-00

Unavailable

18

PAD, PARKING PEDAL

J17-25672-01-00

$5.83

19

ROD, BRAKE

J17-27231-03-00

$13.18

20

END, ROD 2

J17-27232-00-00

$9.08

21

NUT(JN5)

95317-06700-00

Unavailable

22

SPRING, TENSION

90506-09001-00

Unavailable

23

DAMPER, BRAKE

J17-25673-00-00

$4.17

24

PIN, JOINT

J17-27228-00-00

$4.33

25

WASHER(1RW)

92907-05600-00

Unavailable

26

CIRCLIP (EU0)

99080-04600-00

$1.83

27

COLLAR

90387-12009-00

$4.47

28

SPRING, TORSION

90508-32015-00

$5.45

29

WASHER, PLATE (J27)

90201-104G8-00

Unavailable

30

PAD, BRAKE PEDAL

JN3-F7245-00-00

Unavailable

31

SPRING, TORSION

90508-40007-00

$14.49

32

BOLT

90101-10819-00

Unavailable

33

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

34

BRACKET, 3

J55-2252M-00-00

$9.83

35

NAIL, BRAKE

J17-27246-00-00

$24.23

36

BOLT, FLANGE

90105-088B0-00

$2.05

37

DAMPER, BRAKE

J17-25673-00-00

$4.17

38

COLLAR (J17)

90387-107F8-00

Unavailable

39

ROD

JN6-F5685-01-00

$5.52

40

O-RING (26H)

93210-14579-00

Unavailable

41

PIN, CLEVIS (J10)

91701-10022-00

Unavailable

42

PIN COTTER

91490-30025-00

Unavailable

43

EQUALIZER, BRAKE

JN6-F5681-00-00

Unavailable

44

PIN (J10)

90249-14129-00

Unavailable

45

NUT

90179-08822-00

$3.35

46

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

47

CABLE, BRAKE

JU0-F6341-10-00

Unavailable

48

CABLE, BRAKE

JU0-F6351-10-00

Unavailable

49

CIRCLIP(J51)

99080-09600-00

Unavailable

50

PIN, CLEVIS (2J2)

91701-08018-00

Unavailable

51

PIN, CLEVIS(JA1)

91701-08026-00

Unavailable

52

PIN, COTTER

91490-25020-00

Unavailable

53

BOLT, FLANGE

90105-06870-00

$1.49

54

CLAMP

90461-16802-00

Unavailable
