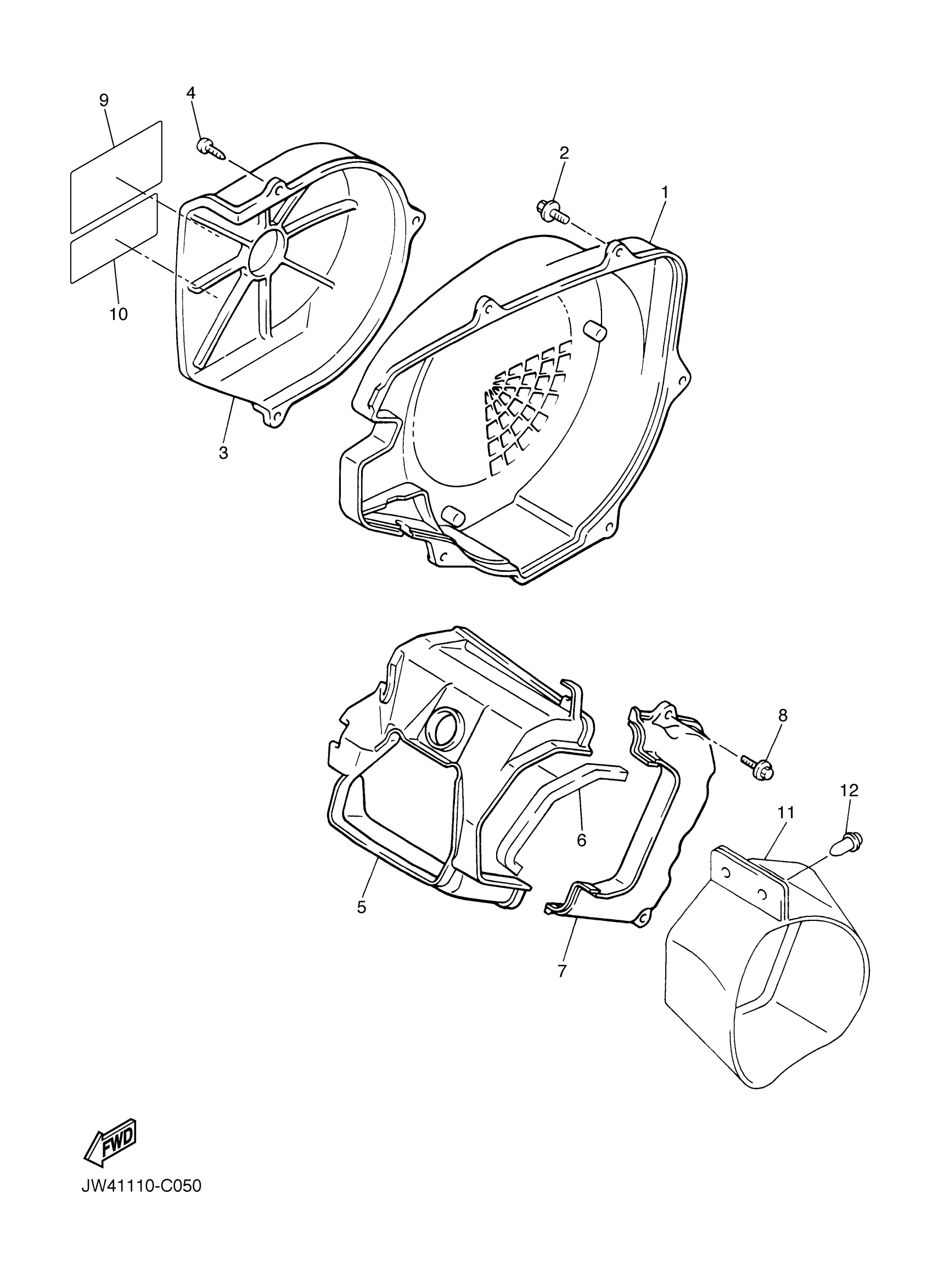

Yamaha YXP700AVL (PRO HAULER 700 2WD) JW43 2006 AIR SHROUD FAN Diagram

#

Description
Price

1

CASE, FAN

JN6-12621-02-00

$27.30

2

BOLT, FLANGE

95817-06020-00

$2.69

3

COVER, FAN CASE

JN6-12616-00-00

$14.99

4

SCREW, TAPPING(JA3)

97707-60520-00

$6.68

5

AIR SHROUD, CYLINDER 1

JN6-12651-01-00

Unavailable

6

DAMPER, AIR SHROUD 1

JR7-12658-00-00

$9.22

7

AIR SHROUD, CYLINDER 2

JN6-12652-00-00

$47.99

8

BOLT, FLANGE

95817-06020-00

$2.69

9

PLATE, EPA 2 (CALIFORNIA)

JR6-2179R-01-00

Unavailable

10

LABEL

7UH-2111F-00-00

$2.85

11

DUCT, 1

JN6-E2691-00-00

Unavailable

12

RIVET

90269-08813-00

Unavailable
