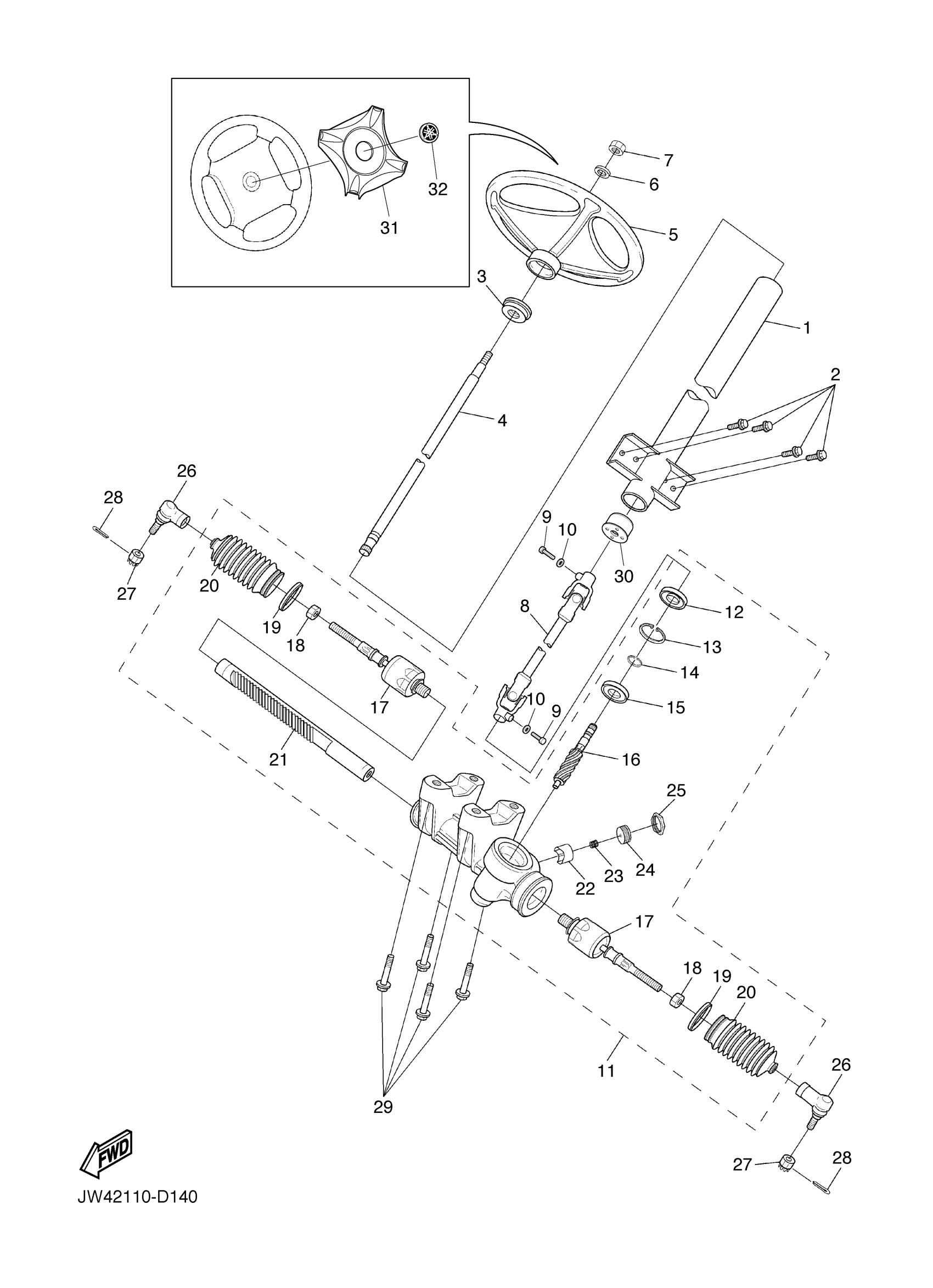

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 STEERING Diagram
#
1
COLUMN, STEERING
JU0-F3811-00-00
Unavailable
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
HOLDER, HANDLE UPPER
JN3-F3814-01-00
Unavailable
4
ROD, STEERING
JU0-F3828-10-00
Unavailable
5
WHEEL, STEERING
JN3-F3838-09-00
Unavailable
6
YBS66-12 WASHER,PLAIN
92990-12200-00
$8.49
7
NUT, SELF LOCKING (23X)
90185-12119-00
$11.49
8
JOINT 1
JU0-F3822-00-00
Unavailable
9
BOLT, HEXAGON
97017-08030-00
$9.49
10
WASHER(6TA)
92907-08600-00
$3.03
11
STEERING ASSY
JU7-F3400-00-00
Unavailable
12
. SEAL
JU0-F3844-00-00
Unavailable
13
. RING, STOPPER
JU0-F387J-00-00
Unavailable
14
. CIRCLIP
JU0-F3183-00-00
Unavailable
15
. BEARING
JU0-F339Y-00-00
Unavailable
16
. GEAR, PINION
JU0-F387A-00-00
Unavailable
17
. ROD, TIE 2
JU7-F3837-00-00
Unavailable
18
. NUT 1
JU0-F3833-00-00
Unavailable
19
. CLAMP
JU0-F1338-00-00
Unavailable
20
. BOOT
JU0-F3848-00-00
Unavailable
21
. GEAR, RACK
JU0-F387E-00-00
Unavailable
22
. PAD, PRESSURE
JU0-F387F-00-00
Unavailable
23
. SPRING, PRESSURE
JU0-F387K-00-00
Unavailable
24
. COVER, ADJUST
JU0-F387G-00-00
Unavailable
25
. NUT 2
JU0-F3834-00-00
Unavailable
26
JOINT, UNIVERSAL 1
JW8-23841-01-00
Unavailable
27
NUT, U FLANGE
95607-12200-00
Unavailable
28
PIN, COTTER
91490-25020-00
Unavailable
29
BOLT, FLANGE
90105-10847-00
Unavailable
30
HOLDER
JU0-F3857-20-00
Unavailable
31
COVER, STEERING
5UG-F3818-00-00
Unavailable
32
TUNING FORK MARK
5FU-F175B-01-00
Unavailable
