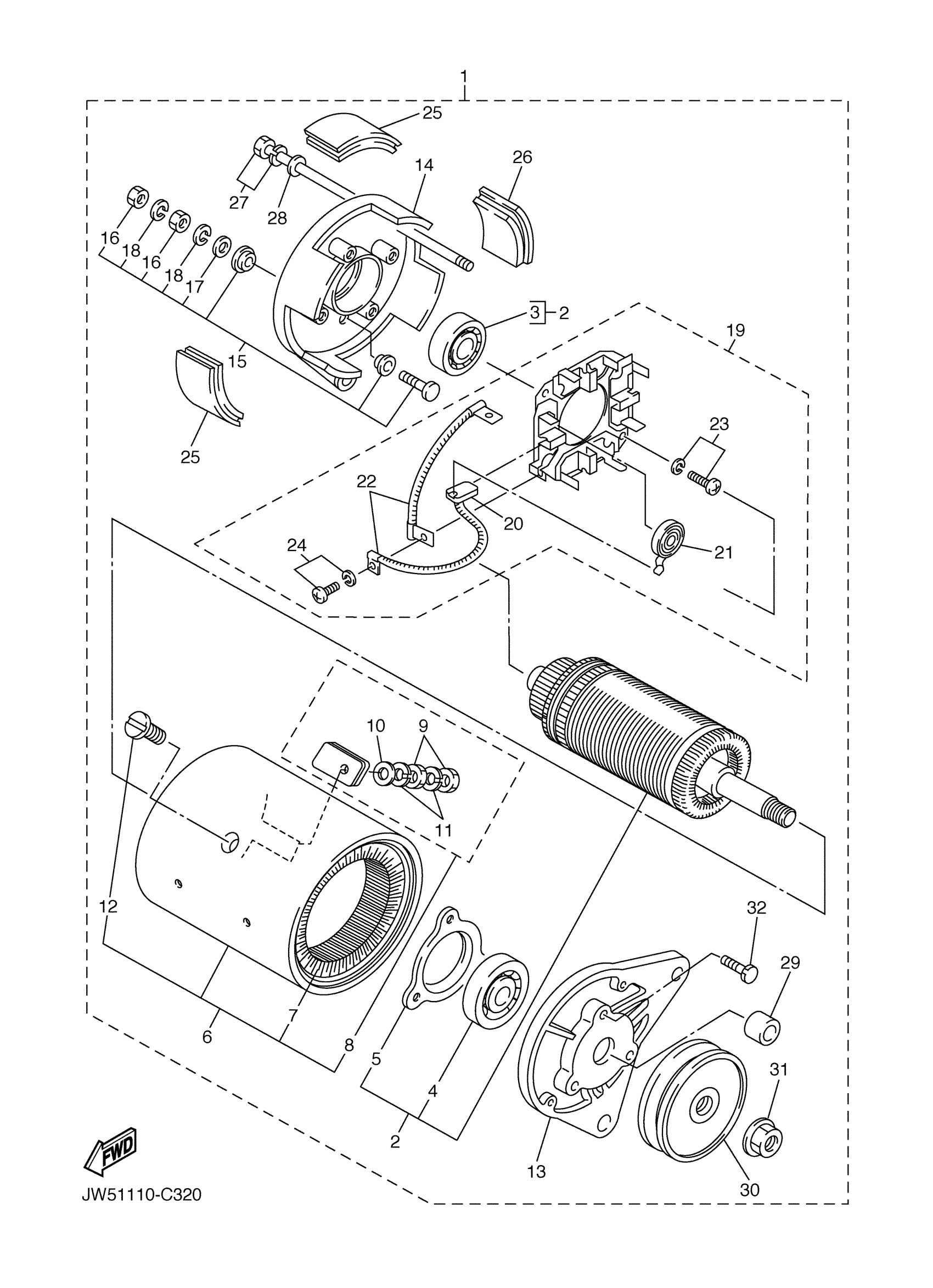

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 STARTING MOTOR Diagram

#

Description
Price

1

STARTER GEN ASY

J0B-H1100-00-00

Unavailable

2

ARMATURE ASSY

JN5-81150-09-00

$236.35

3

BEARING(3DL)

93306-20226-00

$31.81

4

BEARING(4HM)

93306-30317-00

$32.19

5

HOLDER, BEARING

J10-81159-19-00

Unavailable

6

.. STATOR ASSY

JN6-H1110-10-00

$372.59

7

.. FIELD COIL ASSY

JN6-H1160-10-00

Unavailable

8

SCREW 4

J10-81148-19-00

$20.44

9

NUT(6TA)

95317-06600-00

$2.52

10

. WASHER

9290N-06600-00

Unavailable

11

WASHER, SPRING

92907-06100-00

$0.98

12

.. SCREW 2

J10-81146-10-00

$11.35

13

. BRACKET, STARTER GENERATOR 1

JN6-H1165-00-00

$77.12

14

BRACKET, STARTER GENERATOR 2

JB2-81166-00-00

Unavailable

15

TERMINAL BOLT SET

J10-81147-19-00

$63.62

16

NUT(6TA)

95317-06600-00

$2.52

17

. WASHER

9290N-06600-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$0.98

19

. BRUSH HOLDER ASSY

JN6-H1119-00-00

Unavailable

20

.. BRUSH

JF2-H1111-00-00

$17.41

21

.. SPRING, BRUSH

JN6-H1113-00-00

Unavailable

22

WIRE, LEAD

J10-81115-19-00

$22.99

23

.. SCREW, PAN HEAD

9850N-05016-00

Unavailable

24

.. SCREW, PAN HEAD

9850N-04010-00

Unavailable

25

COVER, BRUSH

J10-81129-19-00

Unavailable

26

. COVER, BRUSH 2

J10-H1139-10-00

Unavailable

27

. SCREW 1

J10-81145-10-00

$6.67

28

. WASHER

9290N-06600-00

Unavailable

29

. SPACER

JN3-H1661-00-00

Unavailable

30

PULLEY

JN6-H1161-00-00

$72.08

31

NUT(3JP)

90179-16661-00

Unavailable

32

. SCREW, PAN HEAD

9850N-05018-00

Unavailable
