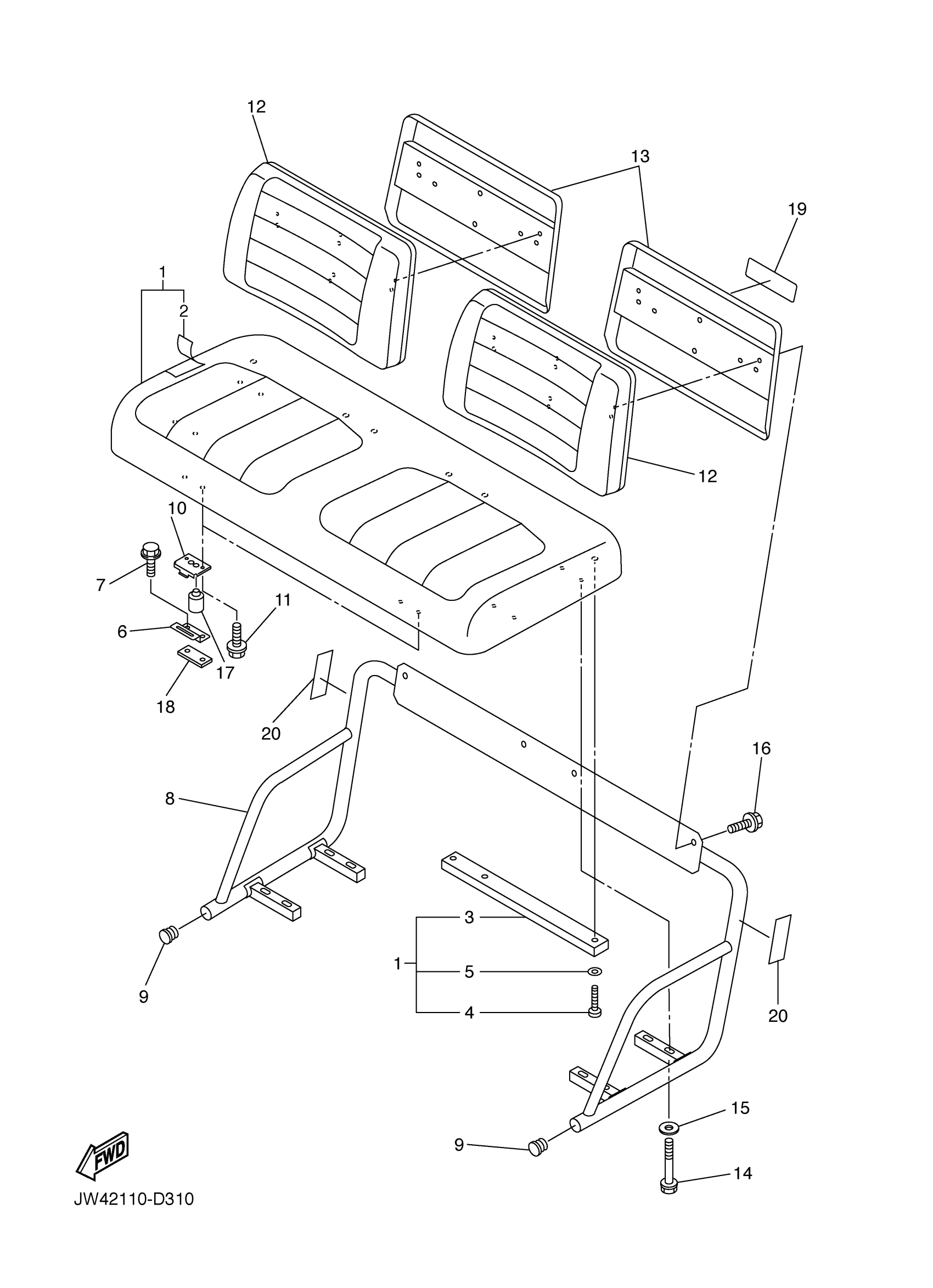

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 SEAT Diagram

#

Description
Price

1

SEAT SUB-ASSY,CUSH

JW4-K8401-10-00

Unavailable

2

. COVER, SEAT

JW4-K8404-00-00

Unavailable

3

. SEAL, SEAT 2

JU7-K842A-00-00

Unavailable

4

. SCREW

JU7-K7387-00-00

Unavailable

5

. WASHER

JU7-K7389-00-00

Unavailable

6

HINGE, SEAT 2

JF2-K8427-00-00

Unavailable

7

BOLT,FLANGE (EW2)

90105-06903-00

$9.49

8

SEAT ASSY 2

JU7-K8420-00-00

Unavailable

9

CAP, MAIN PIPE

JU7-F111A-00-00

Unavailable

10

HINGE, SEAT 1

JN3-K8426-02-00

Unavailable

11

BOLT, WITH WASHER

90119-06892-00

Unavailable

12

SEAT SUB ASSY, BACK

JW4-K8402-00-00

Unavailable

13

COVER, SEAT BACK

JJ3-K8413-10-00

Unavailable

14

BOLT, WITH WASHER

90119-069UW-00

Unavailable

15

WASHER, PLATE

90201-068G0-00

Unavailable

16

BOLT, WITH WASHER

90119-06837-00

Unavailable

17

DAMPER, SEAT

JU7-F4747-00-00

Unavailable

18

WASHER, PLATE

JU7-K8478-10-00

Unavailable

19

LABEL, WARNING 7

JU7-K7767-00-00

Unavailable

20

LABEL,WARNING 4

5B4-K7764-00-00

Unavailable
