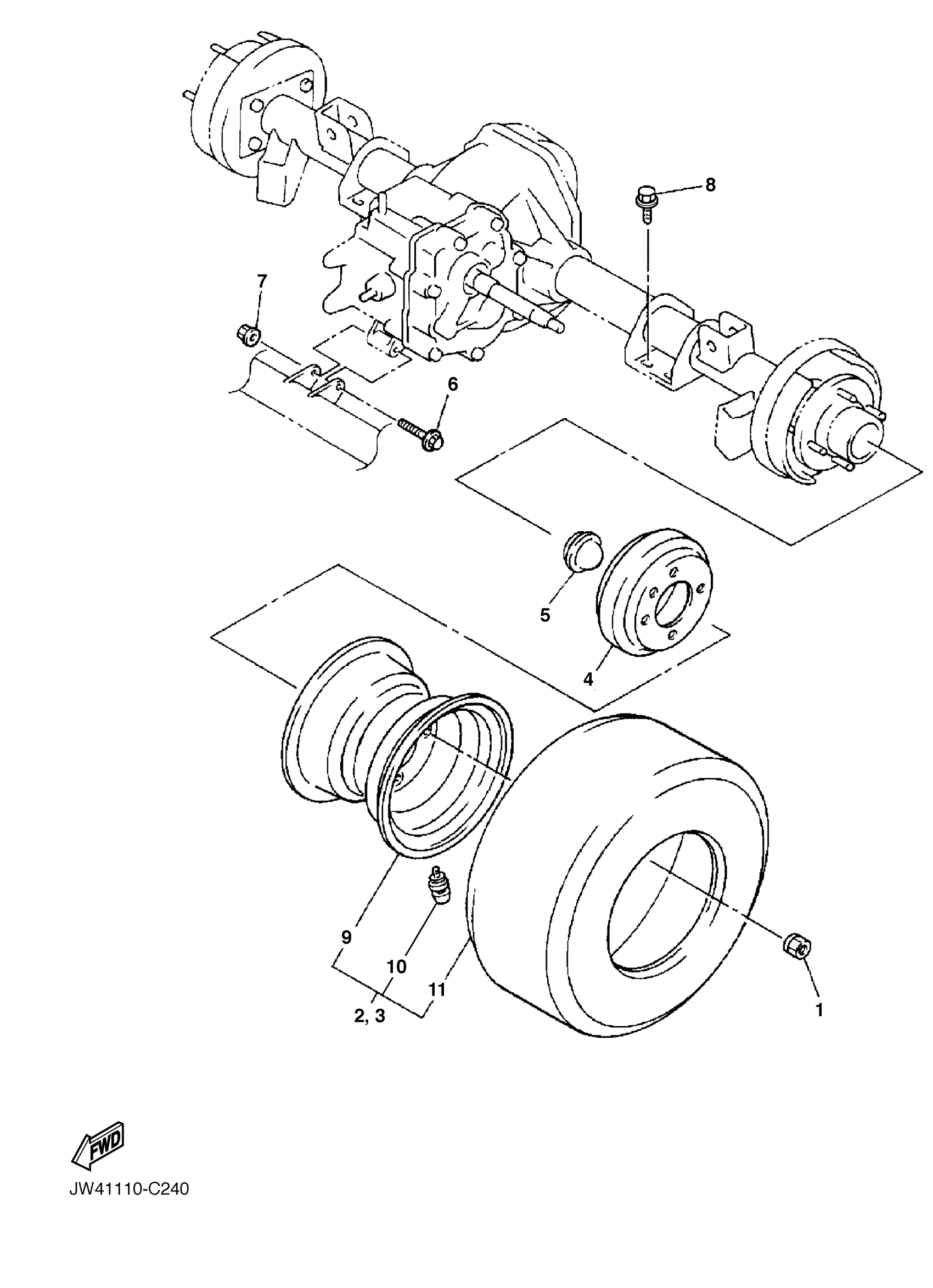

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 REAR AXLE MOUNT WHEEL Diagram

#

Description

Price

1

NUT (J10)

90179-12262-00

$5.60

2

WHEEL ASSY (20X10-8/4/244)

JW4-F5100-00-00

Unavailable

3

WHEEL ASSY., 2 (20X10-8/4/244)

JW4-F5109-00-00

Unavailable

4

DRUM

JU0-G6521-00-00

Unavailable

5

COVER, HUB DUST

JN6-F5118-01-00

Unavailable

6

BOLT, FLANGE

95817-08075-00

$4.82

7

NUT, FLANGE(JN5)

95707-08500-00

$3.13

8

BOLT, WITH WASHER

9751P-10620-00

Unavailable

9

RIM, WHEEL (LOW GLOSS BLACK)

JW4-F5180-10-00

Unavailable

10

VALVE STEM

93900-00815-00

Unavailable

11

TIRE

94110-08801-00

Unavailable
