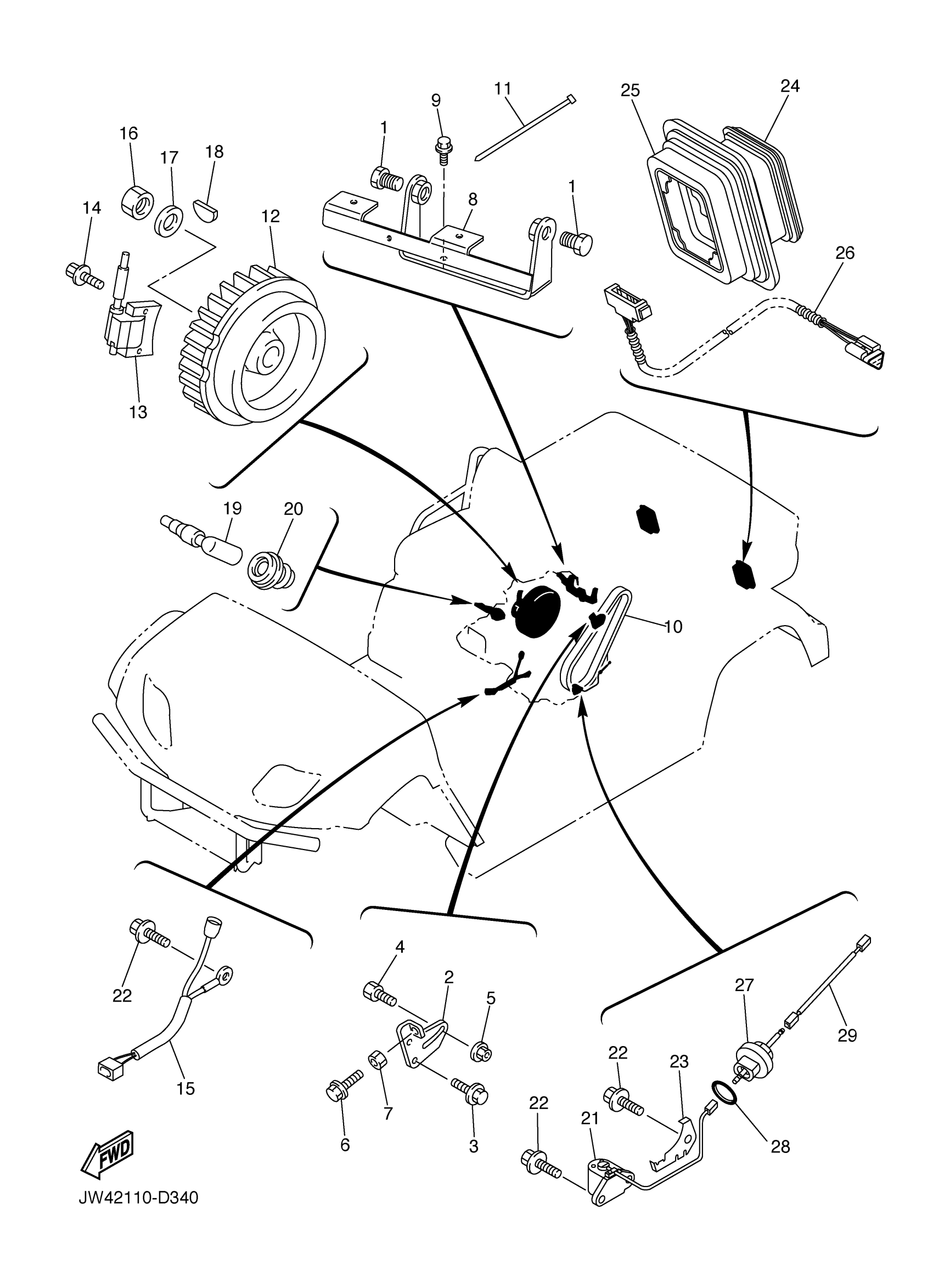

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 ELECTRICAL 1 Diagram
#
1
BOLT, FLANGE
9581P-12025-00
Unavailable
2
TENSIONER ASSY
JN6-H1170-01-00
Unavailable
3
BOLT, FLANGE
9582P-08020-00
Unavailable
4
BOLT
90109-08827-00
Unavailable
5
NUT, FLANGE(JN5)
95707-08500-00
$3.13
6
BOLT (3Y2)
90101-06478-00
$4.15
7
NUT(6TA)
95317-06600-00
$3.55
8
BRKT,STARTER GEN
JN6-H1171-11-00
Unavailable
9
BOLT, FLANGE
9582P-08020-00
Unavailable
10
BELT
JN6-H1173-09-00
Unavailable
11
CLAMP(JN6)
90464-09823-00
$5.60
12
ROTOR ASSY
JR7-85650-00-00
Unavailable
13
T.C.I. UNIT ASSY
J0A-85640-00-00
Unavailable
14
BOLT, FLANGE
95817-06025-00
Unavailable
15
WIRE, SUB-LEAD
JN6-82318-00-00
Unavailable
16
NUT,HEXAGON
95317-18600-00
Unavailable
17
WASHER, PLATE (1J7)
90201-18620-00
Unavailable
18
KEY,WOODRUFF
90280-04052-00
Unavailable
19
PLUG CAP ASSY
JN6-82370-00-00
Unavailable
20
SEAL, PLUG CAP
7CP-H2372-00-00
Unavailable
21
OIL LEVEL GAUGE ASSY
JT0-85720-01-00
Unavailable
22
BOLT, FLANGE
95817-06012-00
Unavailable
23
CLAMP
JT0-85724-00-00
Unavailable
24
TAILLIGHT ASSY
JU5-H4700-00-00
Unavailable
25
GROMMET
JU5-H4718-00-00
Unavailable
26
WIRE,LEAD TAILLIGHT
JU7-H2521-01-00
Unavailable
27
PLUG, OIL LEVEL
JT0-15362-00-00
Unavailable
28
O-RING (22U)
93210-15566-00
Unavailable
29
WIRE, LEAD
JT0-8231Y-00-00
Unavailable
