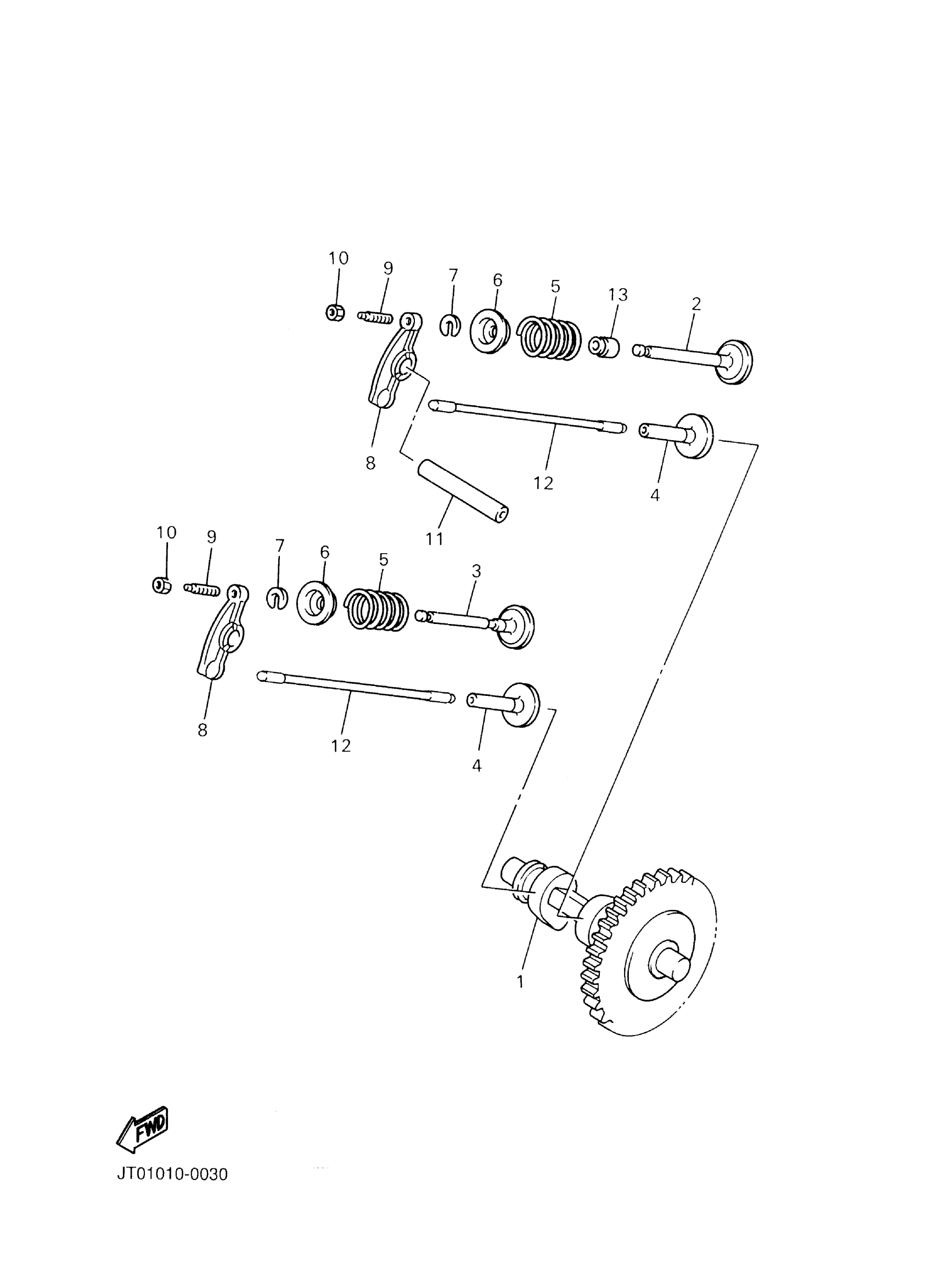

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 CAMSHAFT VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY 2

JR7-12180-10-00

Unavailable

2

VALVE, INTAKE

7CT-E2111-00-00

$10.99

3

VALVE, EXHAUST

7CT-E2121-00-00

$17.49

4

LIFTER, VALVE

7CT-E2153-00-00

Unavailable

5

SPRING, COMPRESSION(J38)

90501-264A9-00

$7.49

6

RETAINER, VALVE SPR

7CT-E2117-00-00

$4.37

7

COTTER, VALVE

7CT-E2118-00-00

$4.52

8

ARM, VALVE ROCKER

7CT-E2151-00-00

$14.49

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

$9.99

10

NUT (22F)

90170-05302-00

$5.60

11

SHAFT, ROCKER 2

7CT-E2156-00-00

$6.99

12

ROD, VALVE PUSH

JW1-E2154-00-00

$12.99

13

SEAL, VALVE STEM

5H0-12119-00-00

$16.49
