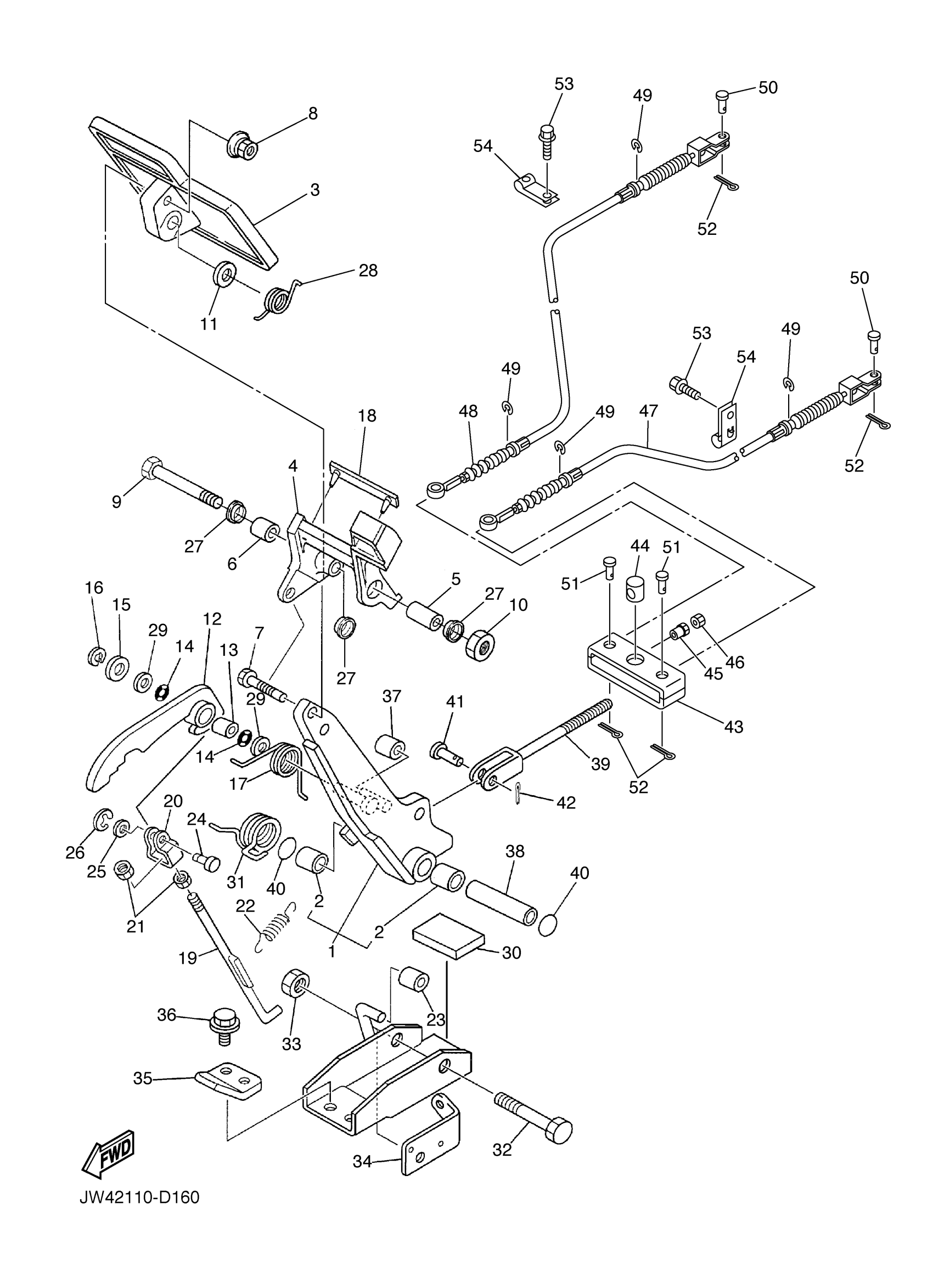

Yamaha YXP700AT (PRO HAULER 700) JW42 2005 BRAKE Diagram
#
1
BRAKE ARM COMP.
J46-27250-03-00
Unavailable
2
BUSH, BIMETAL FORMED (J10)
90384-14080-00
$5.60
3
PEDAL, BRAKE
JU0-27211-01-00
Unavailable
4
PEDAL, PARKING BRAKE
JU0-25671-00-00
Unavailable
5
COLLAR
90387-08014-00
Unavailable
6
COLLAR
90387-08013-00
Unavailable
7
BOLT(21W)
97017-06035-00
$3.40
8
NUT(J17)
90179-07564-00
Unavailable
9
BOLT, HEXAGON
97027-08100-00
$5.60
10
NUT(6TA)
95337-08600-00
$8.49
11
WASHER(6TC)
92907-08200-00
$8.49
12
SECTOR, PARKING BRAKE
J17-W2561-02-00
Unavailable
13
BUSH, BIMETAL FORMED (J17)
90384-10162-00
$16.99
14
SEAL, SHAFT
J17-27221-00-00
Unavailable
15
WASHER(6TA)
92907-10600-00
$8.49
16
CIRCLIP
99080-07600-00
Unavailable
17
SPRING, TORSION (J17)
90508-14548-00
Unavailable
18
PAD, PARKING PEDAL
J17-25672-01-00
Unavailable
19
ROD, BRAKE
J17-27231-03-00
Unavailable
20
END, ROD 2
J17-27232-00-00
Unavailable
21
NUT(JN5)
95317-06700-00
Unavailable
22
SPRING, TENSION
90506-09001-00
Unavailable
23
DAMPER, BRAKE
J17-25673-00-00
Unavailable
24
PIN, JOINT
J17-27228-00-00
Unavailable
25
WASHER(1RW)
92907-05600-00
Unavailable
26
CIRCLIP (EU0)
99080-04600-00
Unavailable
27
COLLAR
90387-12009-00
Unavailable
28
SPRING, TORSION
90508-32015-00
Unavailable
29
WASHER, PLATE (J27)
90201-104G8-00
Unavailable
30
PAD, BRAKE PEDAL
JN3-F7245-00-00
Unavailable
31
SPRING, TORSION
90508-40007-00
Unavailable
32
BOLT
90101-10819-00
Unavailable
33
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
34
BRACKET, 3
J55-2252M-00-00
Unavailable
35
NAIL, BRAKE
J17-27246-00-00
Unavailable
36
BOLT, FLANGE
90105-088B0-00
Unavailable
37
DAMPER, BRAKE
J17-25673-00-00
Unavailable
38
COLLAR (J17)
90387-107F8-00
Unavailable
39
ROD
JN6-F5685-01-00
Unavailable
40
O-RING (26H)
93210-14579-00
Unavailable
41
PIN, CLEVIS (J10)
91701-10022-00
Unavailable
42
PIN COTTER
91490-30025-00
Unavailable
43
EQUALIZER, BRAKE
JN6-F5681-00-00
Unavailable
44
PIN (J10)
90249-14129-00
Unavailable
45
NUT
90179-08822-00
Unavailable
46
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
47
CABLE, BRAKE
JU0-F6341-10-00
Unavailable
48
CABLE, BRAKE
JU0-F6351-10-00
Unavailable
49
CIRCLIP(J51)
99080-09600-00
Unavailable
50
PIN, CLEVIS (2J2)
91701-08018-00
Unavailable
51
PIN, CLEVIS(JA1)
91701-08026-00
Unavailable
52
PIN, COTTER
91490-25020-00
Unavailable
53
BOLT, FLANGE
90105-06870-00
Unavailable
54
CLAMP
90461-16802-00
Unavailable
