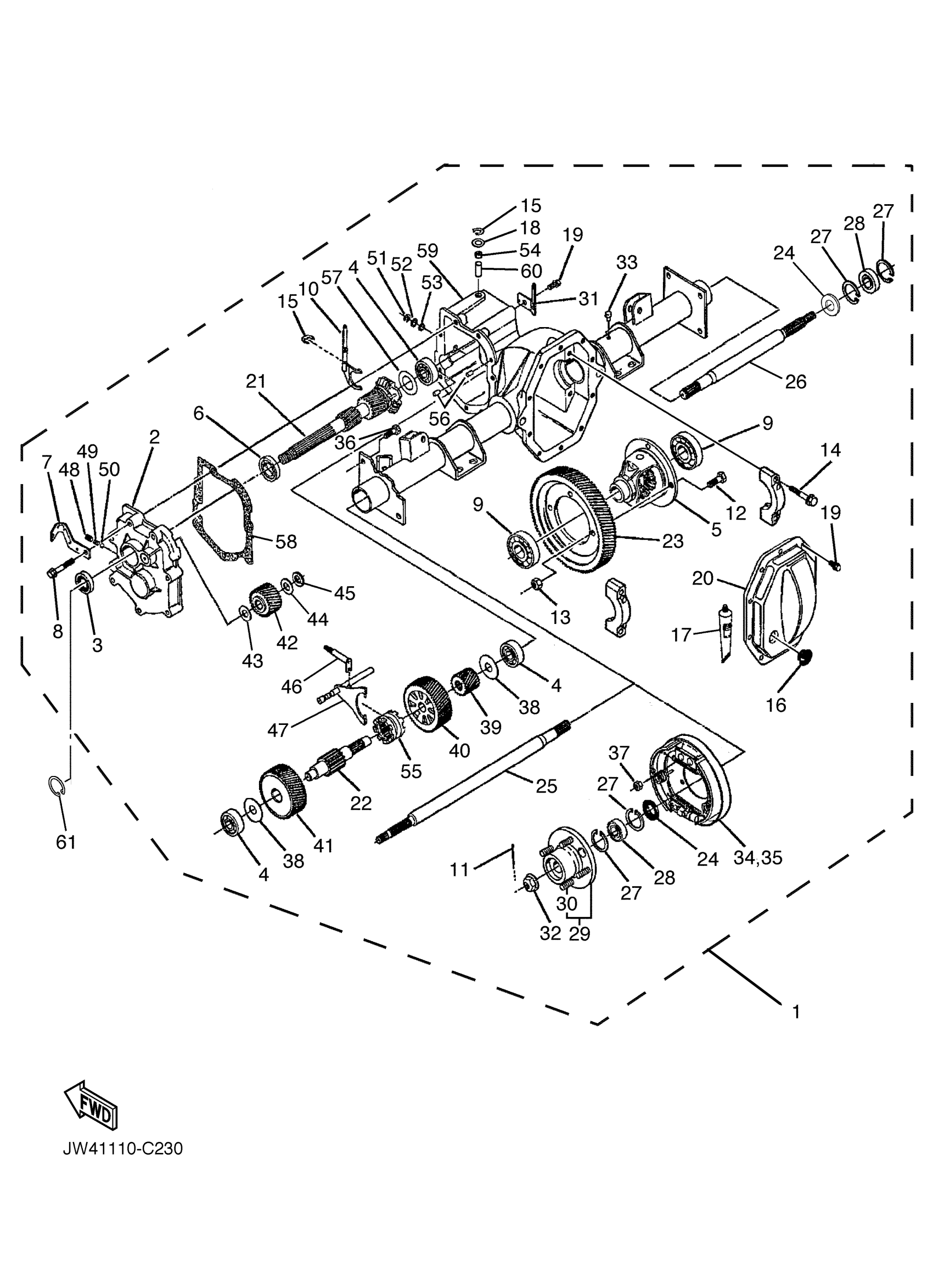

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 TRANSMISSION 1 Diagram

#

Description
Price

1

TRANSAXLE ASSEMBLY

JN6-G6300-04-00

Unavailable

2

.. COVER, TRNSMISSION

JN3-G6313-00-00

Unavailable

3

. OIL SEAL

93102-25868-00

Unavailable

4

. BEARING

93306-303Y6-00

Unavailable

5

DIFFERENTIAL ASSY.

JW9-G6410-00-00

Unavailable

6

. BEARING

93306-005Y4-00

Unavailable

7

. BRACKET 2

JN6-G6555-00-00

Unavailable

8

. BOLT, FLANGE

90105-08859-00

Unavailable

9

. BEARING

93306-007Y0-00

Unavailable

10

. BAR 1

JN3-G633E-01-00

Unavailable

11

PIN, COTTER(6L5)

91490-25030-00

$3.77

12

BOLT

JC1-G2544-00-00

Unavailable

13

. NUT

90170-10840-00

Unavailable

14

. BOLT, FLANGE

90105-10840-00

Unavailable

15

. RETAINER

JU0-F722H-00-00

Unavailable

16

. STOPPER

JN3-G6432-00-00

Unavailable

17

MOTORSPORTS YAMABOND 4 - 3OZ T

ACC-BOND4-MC-00

Unavailable

18

. WASHER, SPECIAL

JU0-F723F-00-00

Unavailable

19

. BOLT

90101-08856-00

Unavailable

20

. COVER, TRANSMISSION

JN3-G6314-00-00

Unavailable

21

. INPUT SHAFT ASSY

JN3-G6320-01-00

Unavailable

22

SHAFT

J0G-G633G-00-00

Unavailable

23

. GEAR, PRIMARY

JN3-G6355-00-00

Unavailable

24

. OIL SEAL

93101-24822-00

Unavailable

25

. SHAFT, REAR AXLE 1 (LH)

JN3-G6511-00-00

Unavailable

26

. SHAFT, REAR AXLE 2 (RH)

JN3-G6512-00-00

Unavailable

27

. CIRCLIP

93420-44805-00

Unavailable

28

BEARING 1

J0K-G6164-00-00

Unavailable

29

. HUB, REAR AXLE

JN3-G6514-00-00

Unavailable

30

.. BOLT, SERRATION

90114-12804-00

Unavailable

31

. BRACKET 3

JN3-G6556-00-00

Unavailable

32

. NUT, SELF-LOCKING

90185-16833-00

Unavailable

33

. CAP

JH7-G5619-00-00

Unavailable

34

.. BACKING PLATE ASSY 2

JN6-F7290-03-00

Unavailable

35

.. BACKING PLATE ASSY 1

JN6-F7280-03-00

Unavailable

36

. BOLT

90101-08855-00

Unavailable

37

. NUT

90170-08841-00

Unavailable

38

. WASHER, PLATE

90201-178H8-00

Unavailable

39

. GEAR, PINION 1

JN3-G6316-00-00

Unavailable

40

. GEAR, WHEEL 1

JN3-G6326-00-00

Unavailable

41

. GEAR, WHEEL 2

JN3-G6327-00-00

Unavailable

42

. GEAR, IDLER

JN3-G6356-00-00

Unavailable

43

. WASHER, PLATE

90201-208H9-00

Unavailable

44

. WASHER, PLATE

90201-208J0-00

Unavailable

45

. CIRCLIP

93440-20813-00

Unavailable

46

. BAR, SHIFT 1

JN3-G638A-00-00

Unavailable

47

. BAR, SHIFT 2

JN6-G638E-00-00

Unavailable

48

. BOLT, SET

90113-08803-00

Unavailable

49

. SPRING, COMPRESSION

90501-10852-00

Unavailable

50

. BALL

93500-06826-00

Unavailable

51

. CIRCLIP

93410-12822-00

Unavailable

52

. WASHER, PLATE

90202-12807-00

Unavailable

53

. OIL SEAL

93104-11829-00

Unavailable

54

. OIL SEAL

93109-10820-00

Unavailable

55

. COLLAR, GUIDE

JN3-G6153-00-00

Unavailable

56

. PIN, DOWEL

93606-10842-00

Unavailable

57

. SHIM, 076MM (0030IN)

JN3-G6344-00-00

Unavailable

57

. SHIM, 090MM (0035IN)

JN3-G6344-10-00

Unavailable

57

. SHIM, 100MM (0040IN)

JN3-G6344-20-00

Unavailable

57

. SHIM, 114MM (0045IN)

JN3-G6344-30-00

Unavailable

57

. SHIM, 127MM (0050IN)

JN3-G6344-40-00

Unavailable

57

. SHIM, 139MM (0055IN)

JN3-G6344-50-00

Unavailable

57

. SHIM, 152MM (0060IN)

JN3-G6344-60-00

Unavailable

57

. SHIM, 165MM (0065IN)

JN3-G6344-70-00

Unavailable

57

. SHIM, 038MM (0015IN)

JN3-G6344-80-00

Unavailable

57

. SHIM, 178MM (0070IN)

JN3-G6344-90-00

Unavailable

57

. SHIM, 192MM (0075IN)

JN3-G6344-A0-00

Unavailable

57

. SHIM, 203MM (0080IN)

JN3-G6344-B0-00

Unavailable

57

. SHIM, 212MM (0085IN)

JN3-G6344-C0-00

Unavailable

57

. SHIM, 229MM (0090IN)

JN3-G6344-D0-00

Unavailable

58

. GASKET

JN3-G6319-00-00

Unavailable

59

.. CASE ASSY

JN3-G6290-01-00

Unavailable

60

. BEARING 1

JU0-G6164-00-00

Unavailable

61

CIRCLIP (256)

93410-25017-00

Unavailable
