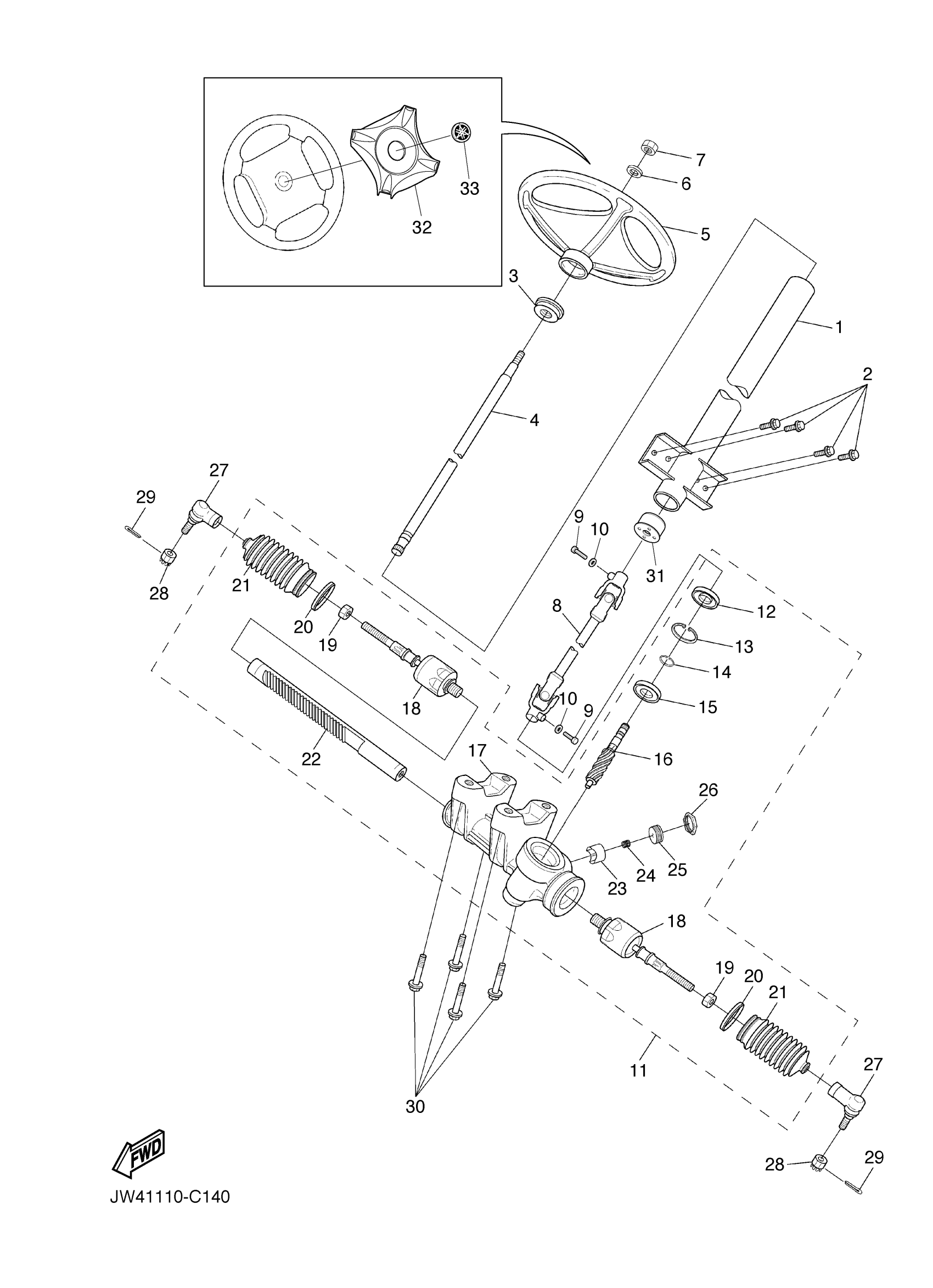

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

JU0-F3811-00-00

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

3

HOLDER, HANDLE UPPER

JN3-F3814-01-00

$11.11

4

ROD, STEERING

JU0-F3828-10-00

$23.67

5

WHEEL, STEERING

JN3-F3838-09-00

Unavailable

6

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

7

NUT, SELF LOCKING (23X)

90185-12119-00

$8.06

8

JOINT 1

JU0-F3822-00-00

Unavailable

9

BOLT, HEXAGON

97017-08030-00

$6.39

10

WASHER(6TA)

92907-08600-00

$2.34

11

STEERING ASSY

JU7-F3400-00-00

Unavailable

12

. SEAL

JU0-F3844-00-00

$2.58

13

. RING, STOPPER

JU0-F387J-00-00

Unavailable

14

. CIRCLIP

JU0-F3183-00-00

Unavailable

15

. BEARING

JU0-F339Y-00-00

Unavailable

16

. GEAR, PINION

JU0-F387A-00-00

Unavailable

17

. HOUSING COMP

JU0-F620A-01-00

Unavailable

18

. ROD, TIE 2

JU7-F3837-00-00

Unavailable

19

. NUT 1

JU0-F3833-00-00

Unavailable

20

. CLAMP

JU0-F1338-00-00

Unavailable

21

. BOOT

JU0-F3848-00-00

Unavailable

22

. GEAR, RACK

JU0-F387E-00-00

Unavailable

23

. PAD, PRESSURE

JU0-F387F-00-00

Unavailable

24

. SPRING, PRESSURE

JU0-F387K-00-00

Unavailable

25

. COVER, ADJUST

JU0-F387G-00-00

Unavailable

26

. NUT 2

JU0-F3834-00-00

Unavailable

27

JOINT, UNIVERSAL 1

JW8-23841-01-00

$51.18

28

NUT, U FLANGE

95607-12200-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

BOLT, FLANGE

90105-10847-00

$1.74

31

HOLDER

JU0-F3857-20-00

Unavailable

32

COVER, STEERING

5UG-F3818-00-00

Unavailable

33

TUNING FORK MARK

5FU-F175B-01-00

Unavailable
