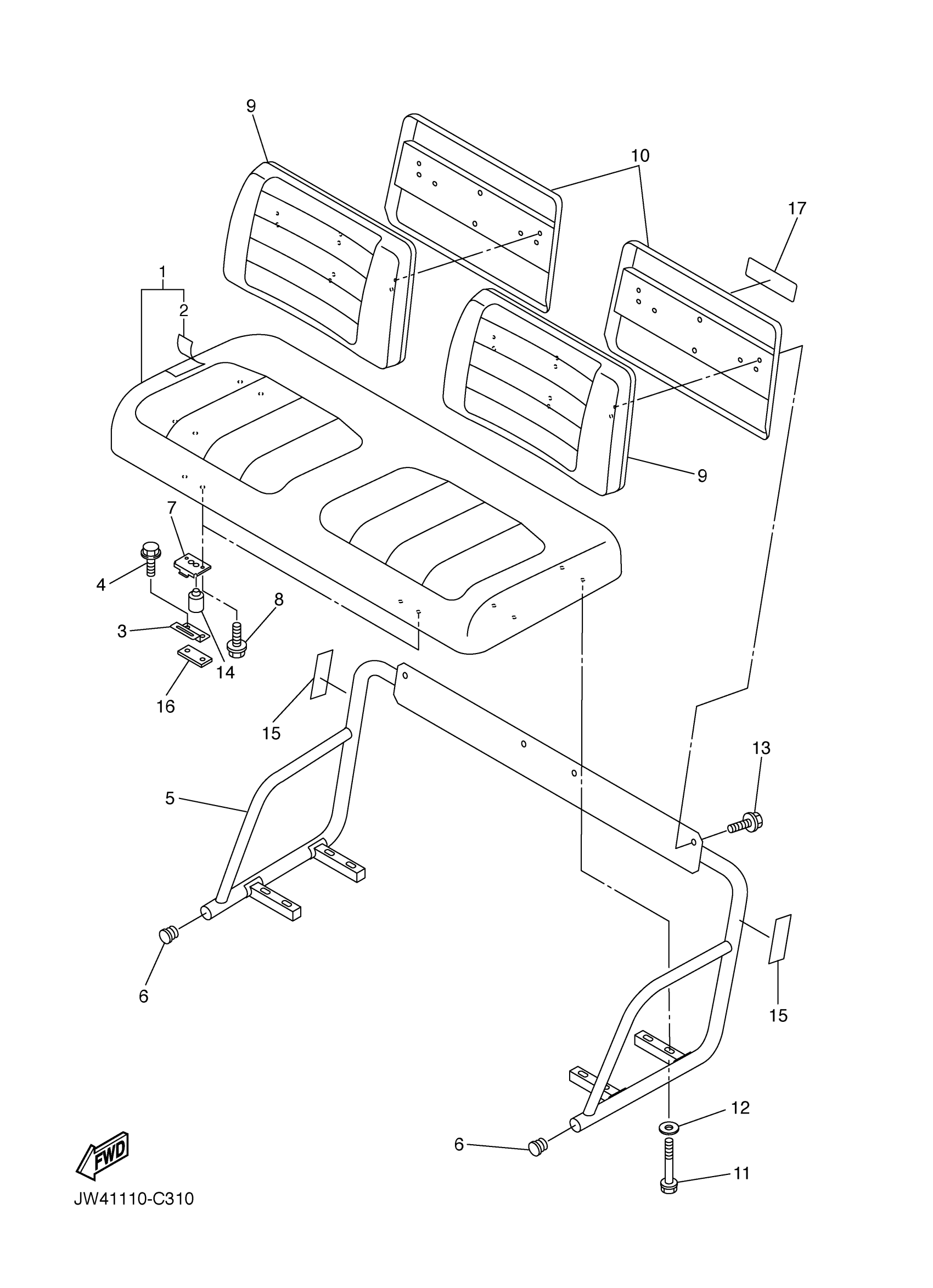

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 SEAT Diagram

#

Description
Price

1

SEAT SUB-ASSY,CUSH

JW4-K8401-10-00

Unavailable

2

. COVER, SEAT

JW4-K8404-00-00

Unavailable

3

HINGE, SEAT 2

JF2-K8427-00-00

$27.99

4

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

5

SEAT ASSY 2

JU7-K8420-00-00

Unavailable

6

CAP, MAIN PIPE

JU7-F111A-00-00

$1.36

7

HINGE, SEAT 1

JN3-K8426-02-00

Unavailable

8

BOLT, WITH WASHER

90119-06892-00

$3.79

9

SEAT SUB ASSY, BACK

JW4-K8402-00-00

Unavailable

10

COVER, SEAT BACK

JJ3-K8413-10-00

$33.23

11

BOLT, WITH WASHER

90119-069UW-00

Unavailable

12

WASHER, PLATE

90201-068G0-00

$0.93

13

BOLT, WITH WASHER

90119-06837-00

$3.21

14

DAMPER, SEAT

JU7-F4747-00-00

Unavailable

15

LABEL,WARNING 4

5B4-K7764-00-00

$8.31

16

WASHER, PLATE

JU7-K8478-10-00

Unavailable

17

LABEL, WARNING 7

JU7-K7767-00-00

Unavailable
